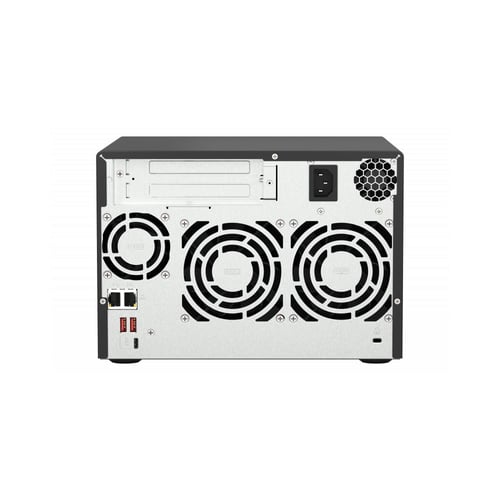

Qnap TS-673A-8G 6-Bay Nas อุปกรณ์จัดเก็บข้อมูลบนเครือข่าย

-12%

Hardware Specs TS-673A-8G

CPU

• AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor

CPU

• Architecture 64-bit x86

Graphic Processors

• Optional via a PCIe adapter

Floating Point Unit

• Yes

Encryption Engine

• Yes (AES-NI)

Hardware-accelerated Transcoding

• Optional via a PCIe adapter

System Memory

• 8 GB SO-DIMM DDR4 (1 x 8 GB)

Maximum Memory

• 64 GB (2 x 32 GB)

Memory Slot

• 2 x SO-DIMM DDR4

• Support ECC memory

Flash Memory

• 5GB (Dual boot OS protection)

Drive Bay

• 6 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

Hot-swappable

• Yes

M.2 Slot

• 2 x M.2 2280 PCIe Gen3 x1 slots

SSD Cache Acceleration Support

• Yes

GPU pass-through

• Yes

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

• 2

5 Gigabit Ethernet Port(5G/2.5G/1G/100M)

• Optional via a PCIe adapter

10 Gigabit Ethernet Port

• Optional via a PCIe adapter

Wake on LAN (WOL)

• Yes

Jumbo Frame

• Yes

PCIe

• Slot 2
• Slot 1: PCIe Gen 3 x4
• Slot 2: PCIe Gen 3 x4

USB 3.2 Gen 2 (10Gbps) Port

• 3 x Type-A USB 3.2 Gen 2 10Gbps
• 1 x Type-C USB 3.2 Gen 1 5Gbps

HDMI Output

• Optional via a PCIe adapter

Form Factor

• Tower

LED Indicators

• Status/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2

Buttons

• Power, Reset, USB Auto Copy

Dimensions (HxWxD)

• 188.2 × 264.3 × 280.8 mm

Weight (Net)

• 5.78 kg

Weight (Gross)

• 7.35 kg

Operating temperature

• 0 - 40 °C (32°F - 104°F)

Storage Temperature

• -20 - 70°C (-4°F - 158°F)

Relative Humidity

• 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

• 250W, 100-240V AC, 50-60Hz, 3.5A

Power Consumption: HDD Sleep Mode

• 21.891 W

Power Consumption:Operating Mode, Typical

• 45.898 W

Fan

• System fan: 2 x 92mm
• CPU fan: 1 x 60mm

System Warning

• Buzzer

Kensington Security Slot

• Yes

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

• 2000
