| CPU | Intel® Celeron® J4125 4-core/4-thread processor, burst up to 2.7 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics 600 |
| Floating Point Unit | ✔
|
| Encryption Engine | ✔ (AES-NI) |
| Hardware-accelerated Transcoding | ✔
|
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 8 GB (2 x 4GB) |
| Memory Slot | 2 x SODIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules. |
| Flash Memory | 4GB (Dual boot OS protection) |

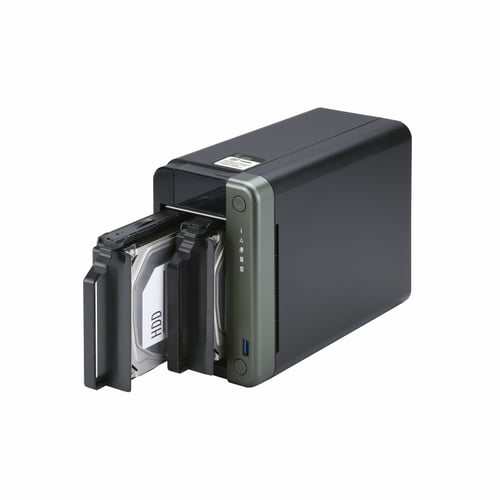

| Drive Bay | 2 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Hot-swappable | ✔
|
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | ✔
|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card Optional via PCIe expansion card |
| Wake on LAN (WOL) | Only the 2.5GbE port |
| Jumbo Frame | ✔
|
| PCIe Slot | 1
Slot 1: PCIe Gen 2 x4PCIe bandwidth limitations will restrict the NAS 10GbE performance. |
| USB 2.0 port | 3 |
| USB 3.2 Gen 1 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via a PCIe expansion card |
| IR Sensor | ✔ (Optional QNAP RM-IR004 remote control) |
| HDMI Output | 1, HDMI 2.0 (up to 4096 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-2 |
| Buttons | Power, USB copy, Reset |
| Dimensions (HxWxD) | 168 × 105 × 226 mm |
| Weight (Net) | 1.55 kg |
| Weight (Gross) | 2.68 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 65W adapter (12VDC), 100-240VAC |
| Power Consumption: HDD Sleep Mode | 8.198 W |
| Power Consumption: Operating Mode, Typical | 12.448 W Tested with drives fully populated. |
| Fan | 1 x 70mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | ✔
|
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
