| GENERAL | |
|---|

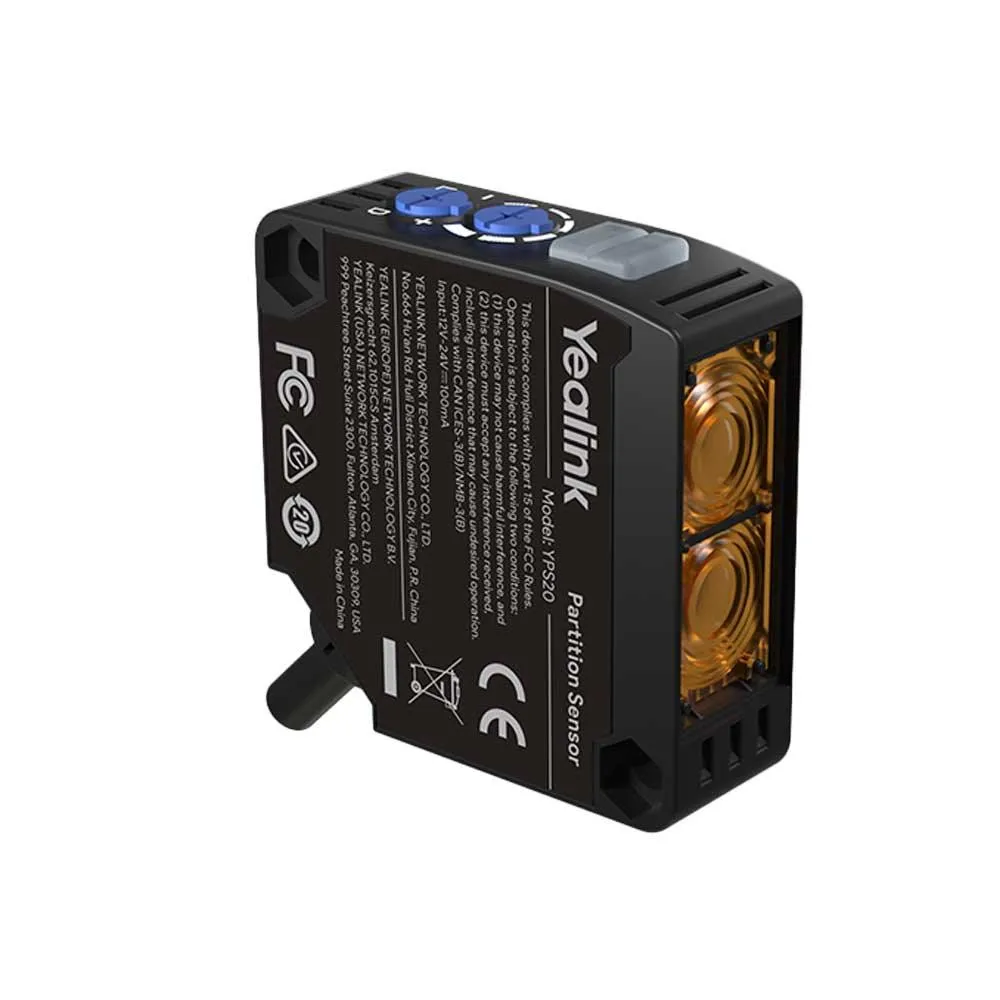

| SENSING | - Sensor Type: Diffuse Reflection
- Detection Distance: 1.5m
- Standard Detection Object: White Drawing Paper: 300×300mm
- Return Difference: ≤ 20%
- Light Source (wavelength): Infrared light-emitting diode (850nm)
- Response Time: Less than 0.5 ms
|
|---|
| POWER AND SIGNAL | - Supply Voltage: DC 12-24V, ±10% pulsation (P-P) less than 10e
- Control Output: NPN/PNP output, wiring switching
- Current Output: 100 mA
- Consumed output: Less than 25 mA
|
|---|
| CONTROLS & INDICATORS | - Action Mode: Dark ON /Light ON switched by knob
- Switch Mode: 270° knob switch
- Sensitivity Adjustment: Single knob switch
- Indicator: Action indicator (orange), Stable indicator (green)
|
|---|
| PROTECTION | - Protection Circuit: Power reverse protection, output short-circuit protection, output reverse protection
- Insulation Resistance: More than 20M Ω (DC500 V megohm meter)
- Withstand Voltage: AC 1500 V 50/60 Hz 1 min between the whole charging part and the shell
- Withstand Vibration: Up and down 1.5 mm at 10~55 Hz for each 2 hours in X / Y / Z directions
- Withstand Impact: 300 m/s² for each 10 times in X / Y / Z directions
|
|---|
| ENVIRONMENT | - Ambient Illumination: Lighting collecting surface illumination incandescent lamp: below 3000 lx, sunlight: below 10000 lx
- Ambient Temperature: Working: -35-55℃ / Storing: each -40~70℃ (no icing, no dew)
- Ambient Humidity: Working: 35-85%RH / Storing: each 35~95%RH (no dew)
- IP Grade: IEC standard IP65
- Material: ABS
- Lens: PMMA
|
|---|
