| PERFORMANCE |
| Processor | AMD Ryzen™ 5 220 (6C / 12T, 3.2 / 4.9GHz, 6MB L2 / 16MB L3) |
| AI PC Category | Non-AI PC |
| NPU | None |
| Graphics | Integrated AMD Radeon™ 740M Graphics |
| Chipset | AMD SoC Platform |
| Memory | 1x 16GB SODIMM DDR5-5600 |
| Memory Slots | Two DDR5 SODIMM slots, dual-channel capable |
| Max Memory
| Up to 32GB DDR5-5600 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® |
| Max Storage Support
| - Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 1TB • The second M.2 SSD slot is only for customer self-upgrade
- To install a second SSD storage, additional thermal pad is required.
|
| Card Reader | No card reader |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC3341 codec |
| Speakers | 3Wx2, HARMAN |
| Camera | 5.0MP |
| Microphone | 2x, Array |
| Power Supply | 90W 89% Adapter |
| DESIGN |
| Display
| 23.8" FHD (1920x1080) IPS Anti-glare 250nits, 99% sRGB |
| Touchscreen | None |
| Keyboard | USB, Calliope, Black, Thai |
| Mouse | USB Calliope Mouse, Black |
| Expansion Slots | Three M.2 slots (one for WLAN, two for SSD)
|
| Case Color | Luna Grey |
| Stand | Monitor Stand |
| Mounting | None |
| Wireless Charger | No Wireless Charger |
| Form Factor | AIO (23.8 inches) |
| Dimensions (WxDxH)
| 539.5 x 192.1 x 431.17 mm (21.24 x 7.56 x 16.98 inches) |
| Weight
| Around 6.0 kg (13.23 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth | Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax 2x2 + BT5.2 |
| WWAN | WWAN Not Supported |
| Ethernet | Integrated 100/1000M |

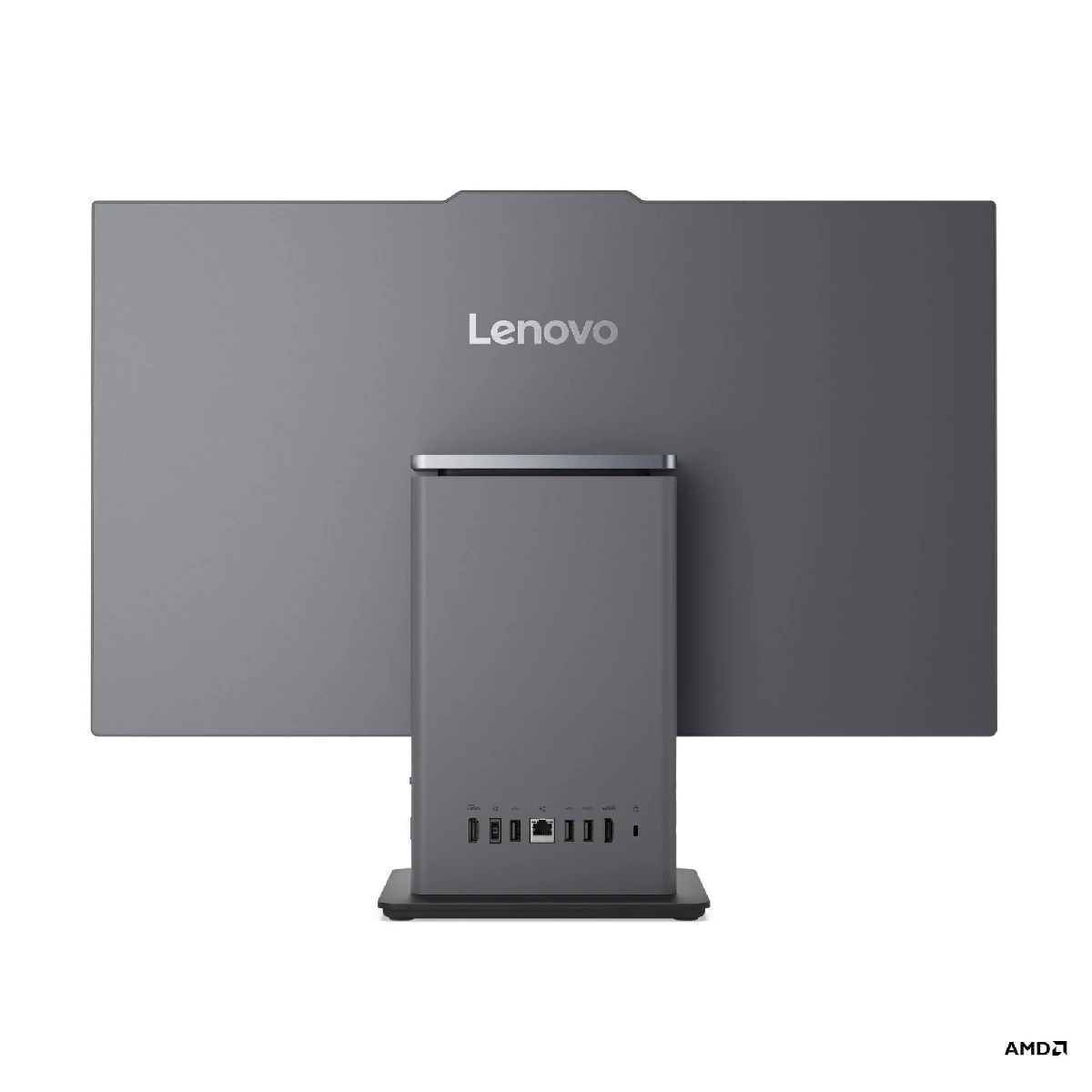

| Rear Ports | - 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 1x HDMI®-in 1.4
- 1x HDMI®-out 2.1 TMDS
- 1x Ethernet (RJ-45)
- 1x power connector
|
| Left Ports | - 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer and 15W charging
- 1x headphone / microphone combo jack (3.5mm)
|
| SECURITY & PRIVACY |
| Security Chip | Firmware TPM 2.0 integrated in SoC |
| Physical Locks | Kensington Security Slot™ |
| Chassis Intrusion Switch | No chassis intrusion switch |
| MANAGEABILITY |
| System Management | None |
| SERVICE |
| Base Warranty | 1-year, Onsite |
| Included Upgrade | 3Y Onsite upgrade from 1Y Onsite |
| CERTIFICATIONS |
| Green Certifications | - ENERGY STAR® 9.0
- EPEAT™ Gold Registered
- ErP Lot 3/7
- GREENGUARD®
- RoHS / WEEE / REACH
|
| Other Certifications | - TÜV Rheinland® Flicker Free
- TÜV Rheinland® Low Blue Light
- TÜV Rheinland® Ultra Low Noise
|
| SOFTWARE |
| Operating System | Windows® 11 Home Single Language, English |
| Bundled Software | None |
