| PERFORMANCE |
| Processor | Intel Core™ Ultra 5 225, 10C (6P + 4E) / 10T, Max Turbo up to 4.9GHz, 20MB Intel® Smart Cache |
| AI PC Category | AI PC
|
| NPU | Integrated Intel® AI Boost, up to 13 TOPS |
Graphics
| Integrated Intel® Graphics |
| Chipset | Intel® B860 Chipset |
| Memory | 1x 16GB UDIMM DDR5-5600 |
| Memory Slots | Two DDR5 UDIMM slots, dual-channel capable |
| Max Memory
| Up to 64GB DDR5-5600 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® |
| Max Storage Support
| - Up to three drives, 1x 3.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB each
- To install a HDD storage, 3.5'' HDD screw and grommet kit is needed.
|
| Card Reader | 3-in-1 Card Reader |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC623-CG codec |
| Speakers | 2Wx1 |
| Power Supply | 260W 90% |
| DESIGN |
| Keyboard | USB Traditional Keyboard, Black, Thai |
| Mouse | USB Calliope Mouse, Black |
| Optional Bay | None |
| Expansion Slots | - One PCIe® 4.0 x16, full-height, length ≤ 233.6mm, height ≤ 117.5mm
- One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm)
- Three M.2 slots (one for WLAN, two for SSD)
|
| Case Color | Black |
| System Fan | None |
| Toolless Chassis Screw | Toolless Chassis Screw |
| Pen | Pen Not Supported |
| Form Factor | Tower (13.6L) |
| Dimensions (WxDxH)
| 145 x 292.2 x 365 mm (5.71x 11.50 x 14.37 inches) |
| Weight
| Around 5.8 kg (12.79 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth | Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3 |
| WWAN | WWAN Not Supported |
| Ethernet | RTL8111K, 1x RJ-45 |
| Front Ports | - 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with data transfer and 15W charging
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
|

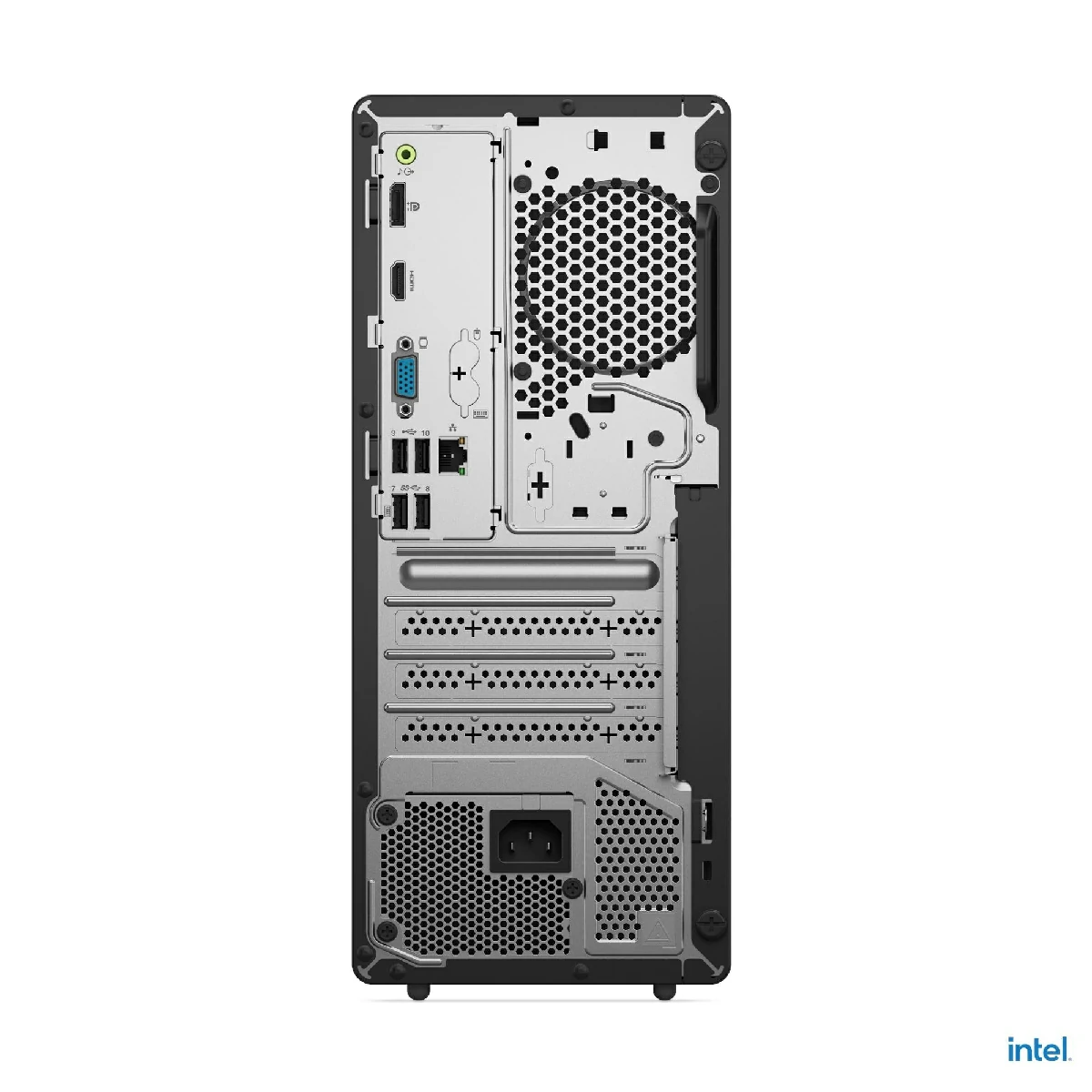

| Rear Ports
| - 2x USB-A (Hi-Speed USB / USB 2.0)
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4
- 1x VGA
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
|
| Optional Rear Ports (configured) | |
| SECURITY & PRIVACY |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Physical Locks | - Kensington Security Slot™, 3 x 7 mm
- Padlock Loop
|
| Smart Cable Clip | None |
| Chassis Intrusion Switch | None |
| SERVICE |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 3Y Onsite upgrade from 1Y Courier/Carry-in |
| CERTIFICATIONS |
| Green Certifications | - ENERGY STAR® 9.0
- RoHS / WEEE / REACH
|
| SOFTWARE |
| Operating System | Windows® 11 Pro, English |
| Bundled Software | None |
