| MODEL | |
|---|
| PACKAGE CONTENT | - MCore 4
- MTouch Plus
- RoomSensor
- MeetingBar A50, all-in-one video collaboration
|
|---|
| PRELOAD | - Windows 11 IoT Enterprise X64
- Windows 11 IoT Enterprise License
- Microsoft Teams Rooms App
- Yealink RoomConnect
|
|---|

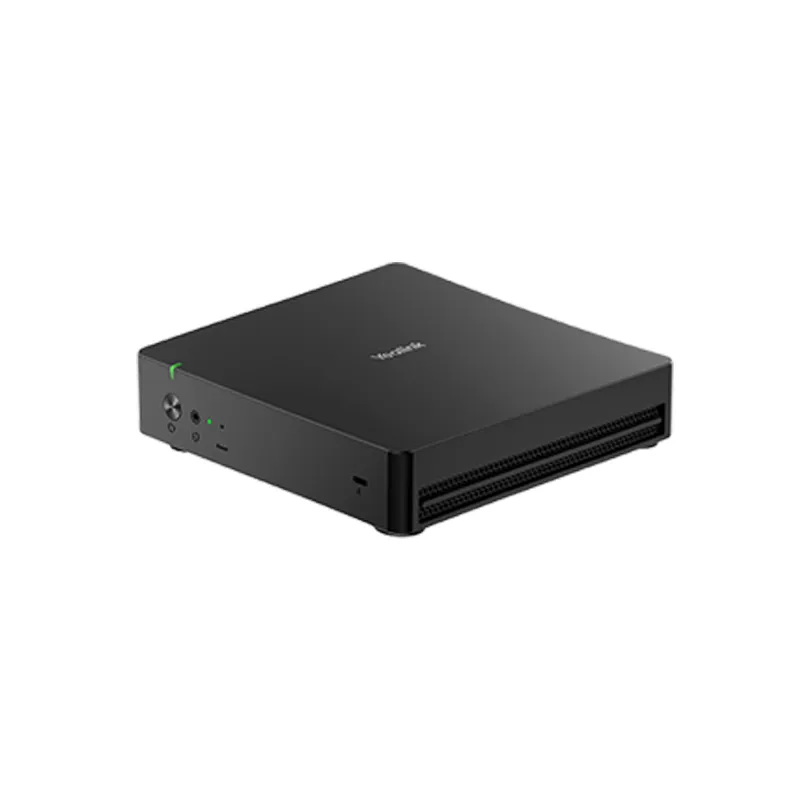

| MCORE 4, GEN-4 MINI-PC | - Processor: Intel Ultra5 125H
- Memory: 16GB(2*8GB) DDR5
- Storage: 256GB SSD
- BIOS feature:
- 3x HDMI video output
- TPM2.0
- Kernel DMA
- Interfaces:
- 1 x HDMI-Out 2.1 port
- 2 x HDMI-Out 2.0 port
- 1 x HDMI-In port
- 4 x USB3.0 Type-A Port
- 1 x MTouch Port (RJ-45)
- 1 x LAN port for AV network
- 1 x 10/100/1000 Gigabit Ethernet Port
- 1 x Power Supply Port
- 1 x 3.5mm headphone Port
- 1 x reset port
- 1 x Security Slot
- WiFi: IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth: BT 5.2
|
|---|
| MTOUCH PLUS | - Physical Features:
- 11.6-inch narrow bezel IPS display
- Angle between screen and desktop (30° ~ 70°)
- Adjustable angle of support frame (50° ~ 180°)
- Function Features：
- 1920 x 1080 video resolution
- Support wired and wireless (with WPP30) content sharing
- Support external PD power supply to power the sharing device
- Support HDMI/USB-C video input
- Support desktop placement, desktop fixed, wall-mounted deployment
|
|---|
| ROOMSENSOR | - Detection angle: 120°
- Adjustable detection angle: ±20°
- Operating temperature: 0-40℃
- Operating humidity: 10-95%
|
|---|

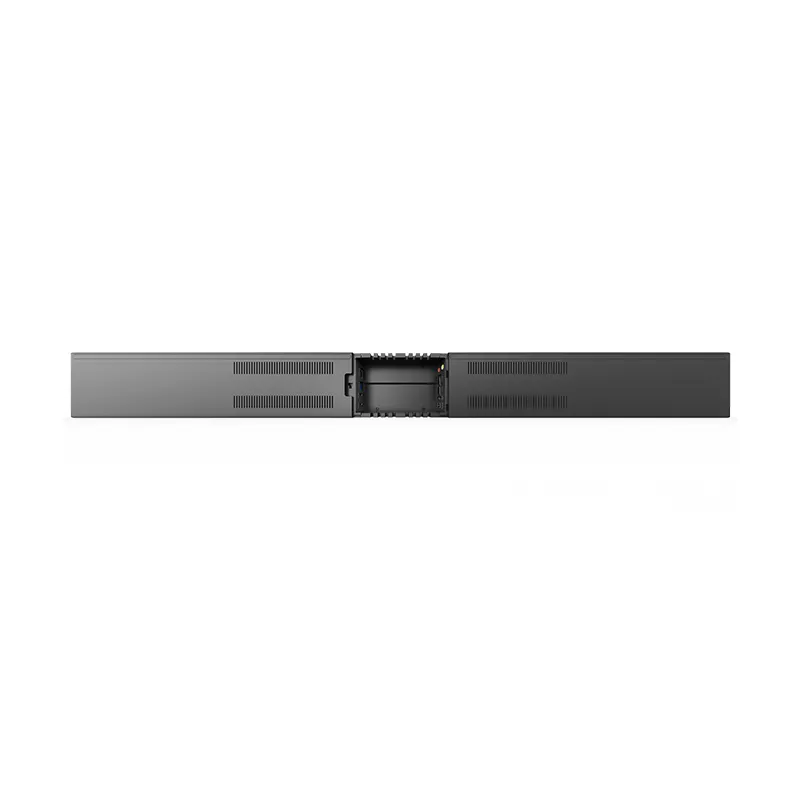

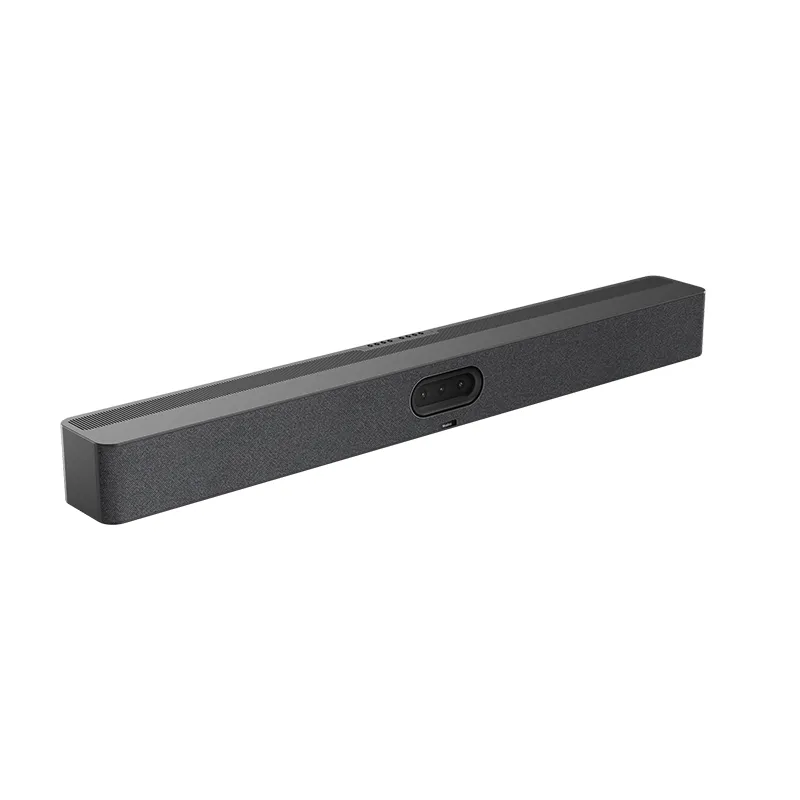

| MEETINGBAR A50 | - Camera:
- Number of preset positions: 9
- Electronic gimbal
- 1 x Wide HFOV 98°, VFOV 81° ;
- 2 x Tele HFOV 41.6° VFOV 31.8°
- 8 x digital zoom
- Interfaces:
- 1 x USB3.0 Type-A port
- 1 x USB3.0 Type-B port
- 1 x USB2.0 Type-C port
- 1x Ethernet port
- 2 x Yealink VCH port (RJ-45)
- 1x 3.5mm Line-in & Line-out port
- 1 x Power port
- 1 x Security lock slot
- 1 x Reset slot
- 2 x HDMI-out
- Dimensions and environmental factors:
- MeetingBar A50: 910 × 88 × 102 mm
- Operating humidity: 10 – 95%
- Operating temperature: 0 – 40°C
|
|---|
