| PERFORMANCE |
| Processor | Intel® Core Ultra 7 258V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB Intel Smart Cache |
| AI PC Category | Copilot+ PC
|
| NPU | Integrated Intel® AI Boost, up to 47 TOPS |
| Graphics | Integrated Intel® Arc™ Graphics 140V |
| Chipset | Intel® SoC Platform |
| Memory | 32GB Soldered LPDDR5x-8533, MoP Memory |
| Memory Slots | Memory soldered to systemboard, no slots, dual-channel |
| Max Memory | 32GB soldered memory, not upgradable |
| Storage | 1TB SSD M.2 2242 PCIe® 4.0x4 NVMe® |
| Storage Slot | One M.2 2242 PCIe® 4.0 x4 slot |
| Max Storage Support
| One drive, up to 1TB M.2 2242 SSD |
| Card Reader | None |
| Audio Chip | SoundWire®, Cirrus Logic® CS42L43 codec |
| Speakers | 4 stereo speakers, 2W x2 (woofers), 2W x2 (tweeters), optimized with Dolby Atmos®, Smart Amplifier (AMP) |
| Microphone | 4x, Array |
| Camera | 5.0MP + IR with Privacy Shutter |
| Battery
| 75Wh |
| Power Adapter | 65W USB-C® (3-pin) |
| DESIGN |
| Display | 14" 4K WQUXGA (3840x2400) OLED 600nits (peak) / 400nits (typical) Glossy / Anti-fingerprint, 100% DCI-P3, 60Hz, Eyesafe®, Dolby Vision®, DisplayHDR™ True Black 500, Glass, Touch |
| Touchscreen | OGS, 10-point Multi-touch |
| Screen-to-Body Ratio | 92.5% AAR (active area ratio) |
| Color Calibration | None |

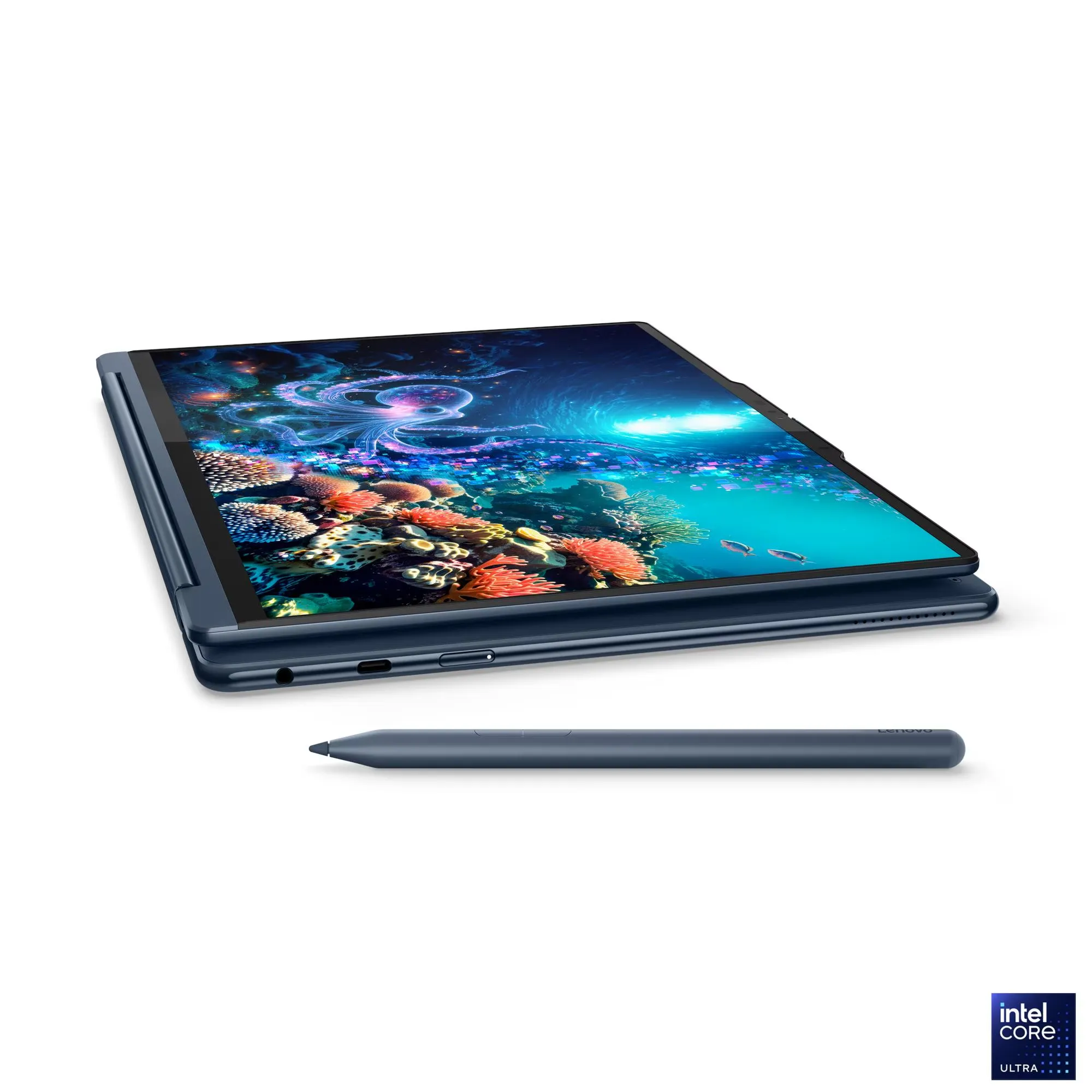

| Pen | Lenovo® Yoga® Pen (Cosmic Blue) |
| Keyboard | Backlit, Thai |
| Touchpad | Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 80 x 135 mm (3.15 x 5.31 inches) |
| Dimensions (WxDxH)
| 316 x 220 x 15.9 mm (12.44 x 8.66 x 0.63 inches) |
| Weight
| Starting at 1.32 kg (2.91 lbs) |
| Case Color | Cosmic Blue |
| Case Material | Aluminium (Top), Aluminium (Bottom) |
| Surface Treatment | Aluminium CNC (Top), Aluminium Stamping (Bottom) |
| SOFTWARE |
| Operating System | Windows® 11 Home Single Language, English |
| Bundled Software | Office Home 2024 + Lenovo® AI Now |
| CONNECTIVITY |
| WLAN + Bluetooth | Wi-Fi® 7, 802.11be 2x2 + BT5.4 |
| WWAN | WWAN Not Supported |
| Ethernet | No Onboard Ethernet |
| Standard Ports | - 1x USB-A (USB 10Gbps), Always On
- 1x USB-C® (USB 20Gbps / USB4® Gen 2x2), with USB PD 45-65W and DisplayPort™ 1.4
- 2x Thunderbolt™ 4, with USB PD 45-65W and DisplayPort™ 2.1
- 1x Headphone / microphone combo jack (3.5mm)
|
| Docking | Various docking solutions are supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for Yoga® 9 2-in-1 14ILL10 |
| SECURITY & PRIVACY |
| Security Chip | Firmware TPM 2.0 |
| Fingerprint Reader | Touch Style, on Keyboard |
| Other Security | - Camera privacy shutter
- IR camera for Windows® Hello (facial recognition)
|
| SERVICE |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 3Y ADP - IPPREM (ESS), 3Y Premium Care -IPPREM (ESS) |
| ACCESSORIES |
| Bundled Accessories | None |
| CERTIFICATIONS |
| Green Certifications | - Carbon Neutral Certified
- ENERGY STAR® 9.0
- EPEAT™ Gold Registered
- ErP Lot 6/26
- RoHS compliant
|
| Mil-Spec Test | MIL-STD-810H military test passed (21 test items) |
| Other Certifications | - Eyesafe® Certified 2.0
- Intel® Evo™ Platform
- TÜV Rheinland® Low Blue Light (Hardware Solution)
|
| MODEL INFORMATION |
| Model | 83LC0012TA |
| Machine Type | 83LC |
| Region | ASEAN |
| Country/Region | Thailand |
| TopSeller | Yes |
| EAN / UPC / JAN | 198156517630 |
| Announce Date | 2024-12-27 |
| End of Support | 2031-02-20 |
