| PERFORMANCE |
| Processor | AMD Ryzen™ 5 220 (6C / 12T, 3.2 / 4.9GHz, 6MB L2 / 16MB L3) |
| AI PC Category | Non-AI PC |
| NPU | None |
| Graphics
| Integrated AMD Radeon™ 740M Graphics |
| Chipset | AMD SoC Platform |
| Memory | 1x 16GB SODIMM DDR5-5600 |
| Memory Slots | Two DDR5 SODIMM slots, dual-channel capable |
| Max Memory
| Up to 64GB DDR5-5600 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® |
| Max Storage Support
| - Up to three drives, 1x 3.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB each
- To install a HDD storage, 3.5'' HDD screw and grommet kit is needed
|
| Card Reader | None |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC623 codec |
| Speakers | 1Wx1 |
| Power Supply | 260W 90% |
| DESIGN |
| Keyboard | USB, Calliope, Black, Thai |
| Mouse | USB Calliope Mouse, Black |
| Expansion Slots | - One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
- Three M.2 slots (one for WLAN, two for SSD)
|
| Case Color | Raven Black |
| Stand | None |
| Pen | Pen Not Supported |
| Form Factor | SFF (8.2L) |
| Dimensions (WxDxH)
| 89 x 274.8 x 336 mm (3.5 x 10.83 x 13.24 inches) |
| Weight
| Around 4.33 kg (9.55 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth | Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax 2x2 + BT5.3 |
| WWAN | WWAN Not Supported |
| Ethernet | Integrated 100/1000M |

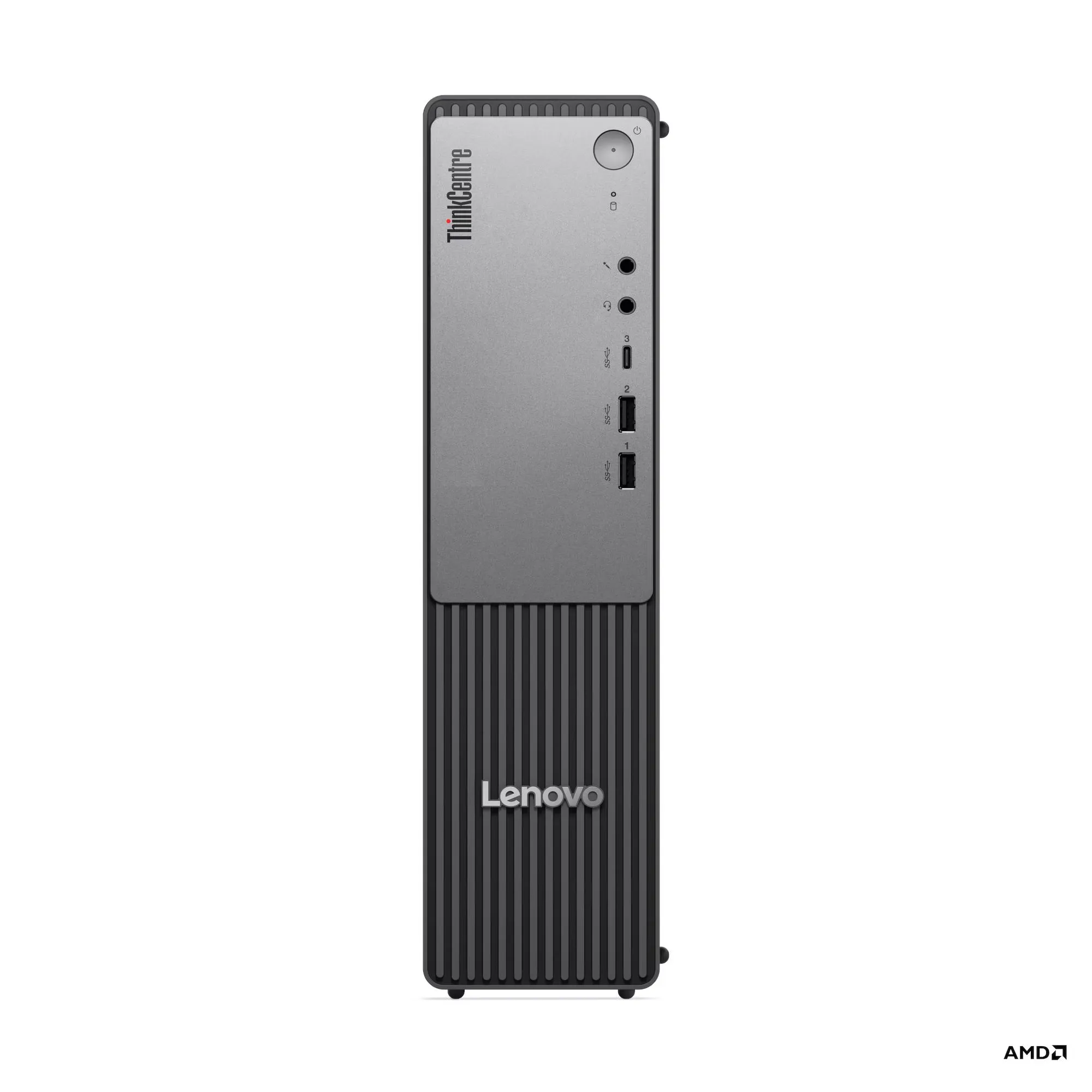

| Front Ports | - 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
|

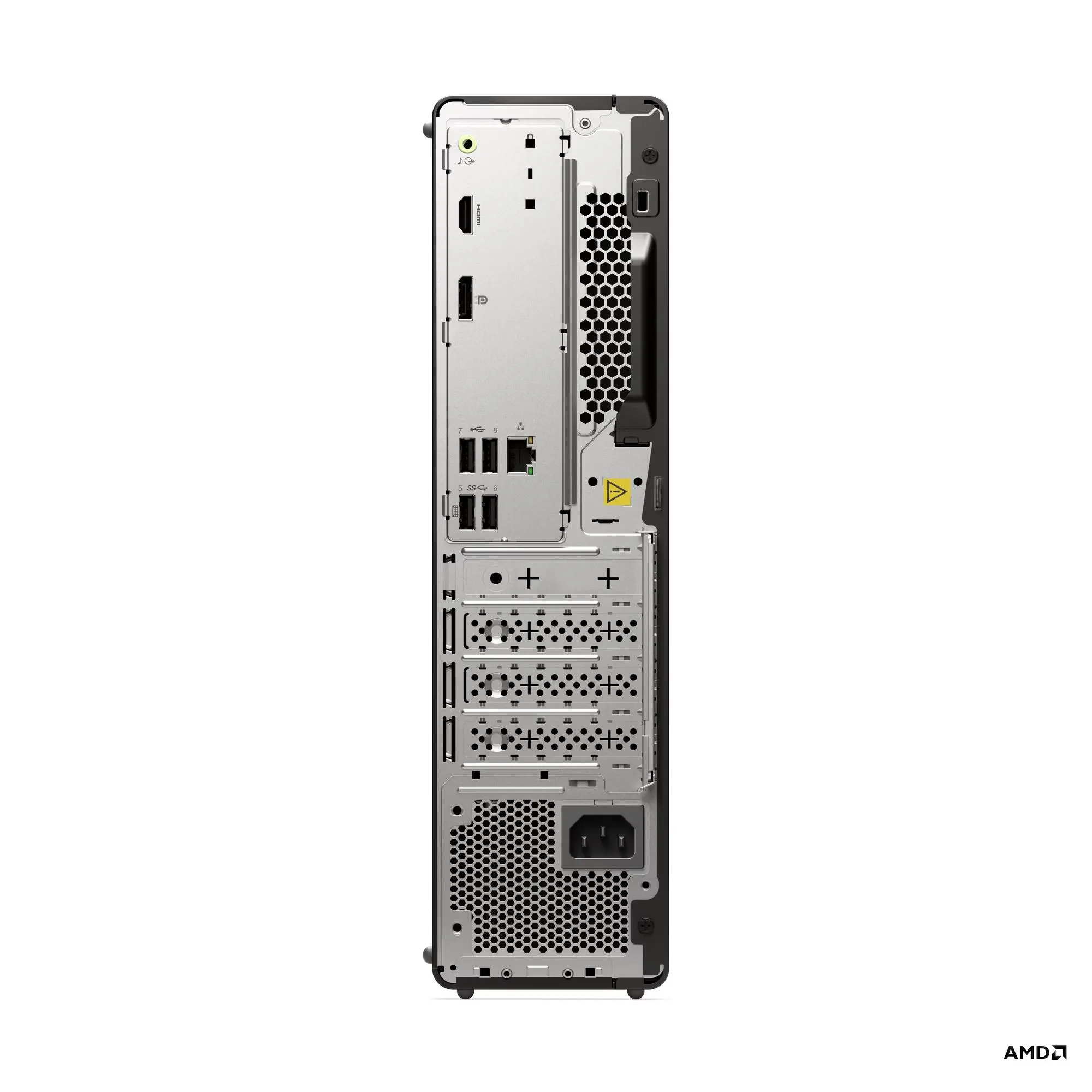

| Rear Ports
| - 2x USB-A (Hi-Speed USB / USB 2.0)
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
|
| Optional Rear Ports (configured) | |
| SECURITY & PRIVACY |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Fingerprint Reader | No fingerprint reader |
| Physical Locks | Kensington® Security Slot™ |
| Smart Cable Clip | None |
| Chassis Intrusion Switch | Chassis Intrusion Switch |
| Additional Security | None |
| MANAGEABILITY |
| System Management | Non-DASH |
| SERVICE |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 3Y Onsite upgrade from 1Y Courier/Carry-in |
| CERTIFICATIONS |
| Green Certifications | - RoHS compliant
- TCO Certified, generation 10
|
| SOFTWARE |
| Operating System | None |
| Bundled Software | None |
| ACCESSORIES |
| Bundled Accessories | None |
| MODEL INFORMATION |
| Model | 13G20001TA |
| Machine Type | 13G2 |
| Region | ASEAN |
| Country/Region | Thailand |
| TopSeller | Yes |
| EAN / UPC / JAN | 199272348863 |
| Announce Date | 2025-07-27 |
| End of Support | 2032-01-10 |
