| PERFORMANCE |
| Processor | Intel® Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB Intel Smart Cache |
| AI PC Category | AI-Powered Gaming PC
|
| NPU | Integrated Intel® AI Boost, up to 13 TOPS |
| Graphics | NVIDIA® GeForce RTX™ 5090 24GB GDDR7, Boost Clock 2160MHz, TGP 175W, 1824 AI TOPS |
| Chipset | Intel® HM870 Chipset |
| Memory | 2x 32GB SODIMM DDR5-5200 |
| Memory Slots | Four DDR5 SODIMM slots, dual-channel capable |
| Max Memory
| Up to 192GB DDR5-4000 offering |
| Storage | 2TB SSD M.2 2280 PCIe® 5.0x4 Performance NVMe® |
| Storage Slot | Four M.2 slots • One M.2 2280 PCIe® 5.0 x4 slot • Three M.2 2280 PCIe 4.0 x4 slots |
| Max Storage Support
| Up to four drives, 4x M.2 SSD • M.2 2280 SSD up to 2TB each |
| Optical | None |
| Card Reader | SD Card Reader |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC3306 codec |
| Speakers | 6 stereo speakers, 2W x4 (woofers), 2W x2 (tweeters), optimized with Nahimic Audio, Smart Amplifier (AMP) |
| Microphone | 2x, Array |
| Camera | 5.0MP + 3D IR with E-shutter |
| Battery | 99.9Wh |
| Power Adapter | 400W Slim Tip (3-pin) |
| Special Features | AI Chip: LA3-P |
| DESIGN |
| Display
| 18" WQUXGA (3840x2400) IPS 500nits Glossy, 100% DCI-P3, 240Hz / 440Hz, Dolby Vision®, G-SYNC®, DisplayHDR™ 400, 3D display, Low Blue Light, High Gaming Performance
|
| Touchscreen | None |
| Screen-to-Body Ratio | 93.1% AAR (active area ratio) |
| Color Calibration | Factory Color Calibration |
| Pen | Pen Not Supported |
| Keyboard | Per-key RGB Backlit (with Lighting Lens), Thai |
| Touchpad | Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 95 x 150 mm (3.74 x 5.91 inches) |
| Dimensions (WxDxH)
| 403 x 296.9 x 23.9-27.95 mm (15.87 x 11.69 x 0.94-1.10 inches) |
| Weight
| Around 3.75 kg (8.27 lbs) |
| Case Color | Eclipse Black |

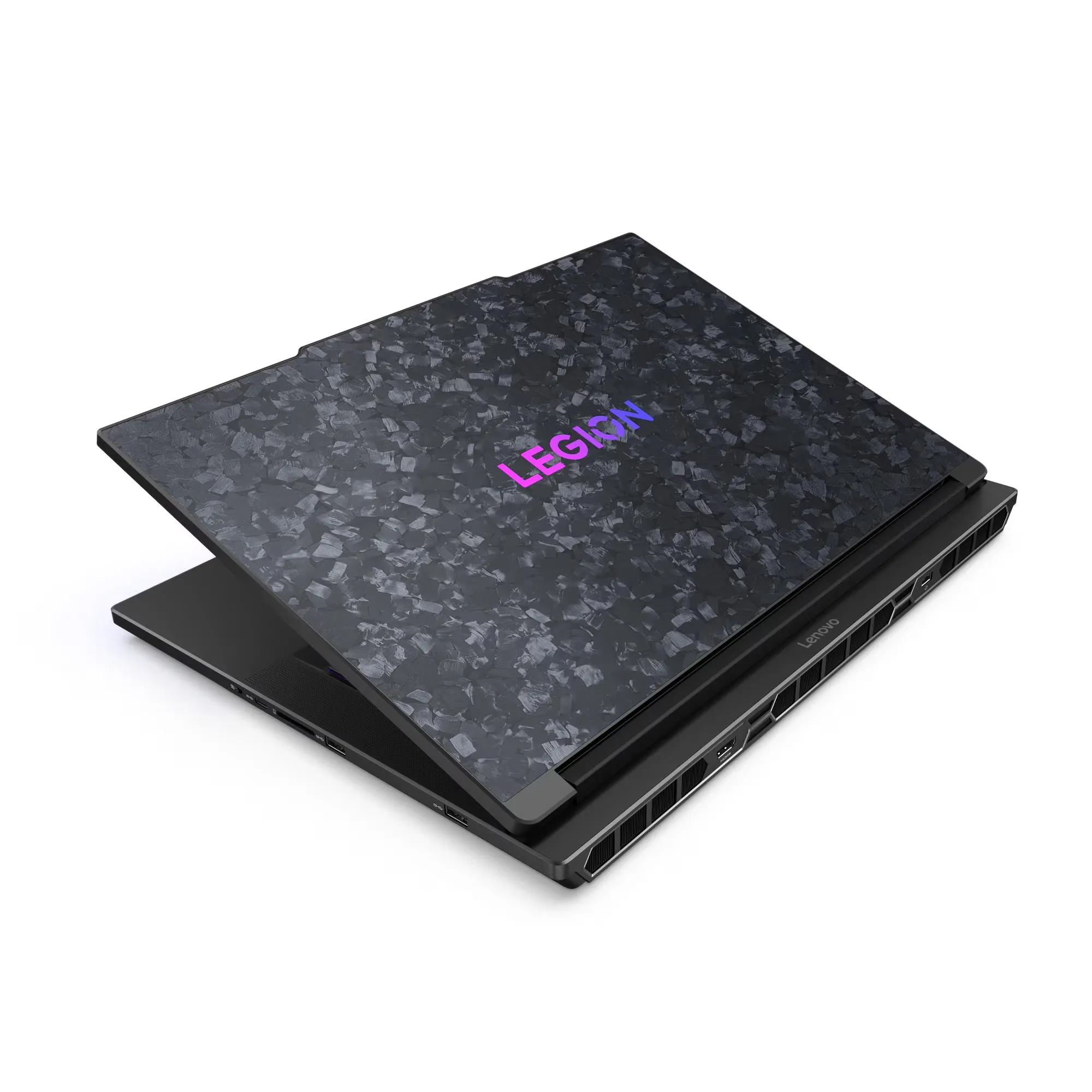

| Case Material | Aluminium + Forged Carbon (Top), Aluminium (Bottom) |
| Surface Treatment | Forged Carbon (Soft Painted) |
| SOFTWARE |
| Operating System | Windows® 11 Home Single Language, English |
| Bundled Software | Office Trial + Lenovo® AI Now |
| CONNECTIVITY |
| WLAN + Bluetooth | Intel® Killer™ Wi-Fi® 7 BE1750x, 802.11be 2x2 + BT5.4 |
| WWAN | WWAN Not Supported |
| Ethernet | 2.5GbE (RJ-45) |
| Standard Ports | - 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2)
- 2x Thunderbolt™ 5, with USB PD 95-100W and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (2.5GbE RJ-45)
- 1x Card reader
- 1x Slim tip Power connector
|
| Docking | Various docking solutions supported via Thunderbolt™. For more compatible docking solutions, please visit Docking for Legion 9 18IAX10 |
| SECURITY & PRIVACY |
| Security Chip | Firmware TPM 2.0 Enabled |
| Fingerprint Reader | No Fingerprint Reader |
| Other Security | E-shutter |
| SERVICE |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 4Y Premium Care -IPPREM (ESS) |
| ACCESSORIES |
| Bundled Accessories | None |
| CERTIFICATIONS |
| Green Certifications | |
| Other Certifications | - CQC Portable Artificial Intelligence Computer (AIPC) Highest Graded Evaluation
- TÜV Rheinland® High Gaming Performance
- TÜV Rheinland® Low Blue Light (Hardware Solution)
- UL Solutions - Gaming Performance and Comfort (GOLD)
|
| MODEL INFORMATION |
| Model | 83EY002STA |
| Machine Type | 83EY |
| Region | ASEAN |
| Country/Region | Thailand |
| TopSeller | Yes |
| EAN / UPC / JAN | 199271803943 |
| Announce Date | 2025-07-02 |
| End of Support | 2031-06-05 |
