| PERFORMANCE |
| Processor | Intel® Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB Intel Smart Cache |
| Graphics | Integrated Intel® UHD Graphics 730 |
| Chipset | Intel® B760 Chipset |
| Memory | 1x 16GB UDIMM DDR5-4800 |
| Memory Slots | Two DDR5 UDIMM slots, dual-channel capable |
| Max Memory
| Up to 32GB DDR5-5600 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® |
| Max Storage Support
| Up to two drives, 1x 3.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB |
| Card Reader | None |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC623-CG codec |
| Speakers | No speakers |
| Power Supply | 260W 90%
|
| DESIGN |
| Keyboard | USB Calliope Keyboard, Black, Thai |
| Mouse | USB Calliope Mouse, Black |
| Expansion Slots | Two M.2 slots (one for WLAN, one for SSD) |
| Case Color | Grey |
| System Fan | None |
| Stand | None |
| Pen | Pen Not Supported |
| Form Factor | Tower (8.2L) |
| Dimensions (WxDxH)
| 89 x 291.4 x 339.5mm (3.5 x 11.5 x 13.4 inches) |
| Weight
| Around 4.25 kg (9.4 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth | Wi-Fi® 6, 802.11ax 2x2 + BT5.2 |
| WWAN | WWAN Not Supported |
| Ethernet | Integrated 100/1000M |
| Front Ports | - 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
|

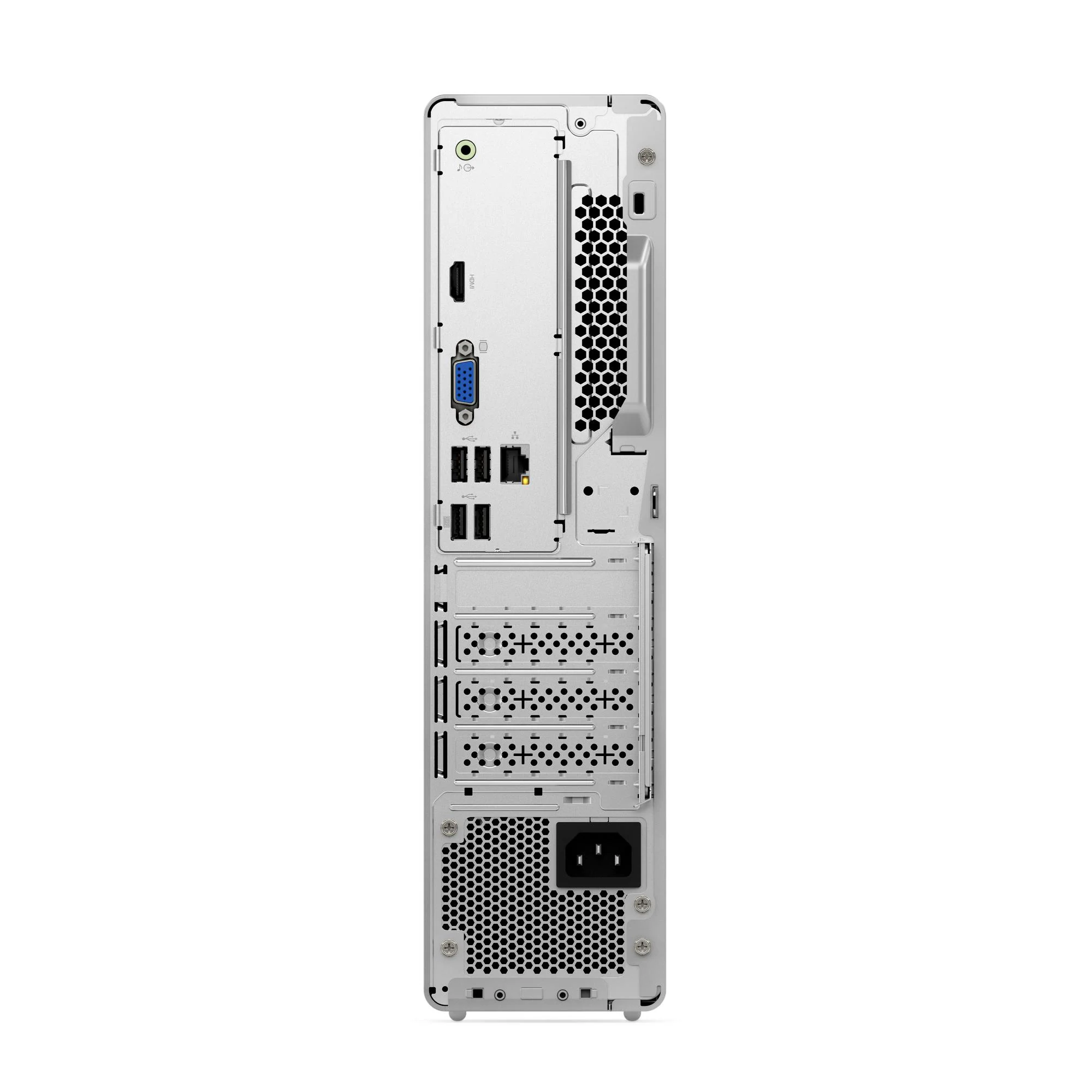

| Rear Ports | - 1x USB-A (Hi-Speed USB / USB 2.0), with smart power on
- 3x USB-A (Hi-Speed USB / USB 2.0)
- 1x HDMI® 2.1 TMDS
- 1x VGA
- 1x Ethernet (RJ-45)
- 1x audio-out (3.5mm)
- 1x power connector
|
| SECURITY & PRIVACY |
| Security Chip | Firmware TPM 2.0 integrated in chipset |
| MANAGEABILITY |
| System Management | None |
| SERVICE |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 3Y Premium Care - Idea DT (ESS) |
| CERTIFICATIONS |
| Green Certifications | |
| SOFTWARE |
| Operating System | Windows® 11 Home Single Language, English |
| Bundled Software | Microsoft® 365 Basic + Office Home 2024 |
| ACCESSORIES |
| Bundled Accessories | None |
| MODEL INFORMATION |
| Model | 90XS006GTA |
| Machine Type | 90XS |
| Region | ASEAN |
| Country/Region | Thailand |
| TopSeller | Yes |
| EAN / UPC / JAN | 199272590682 |
| Announce Date | 2025-08-11 |
| End of Support | 2030-10-18 |
