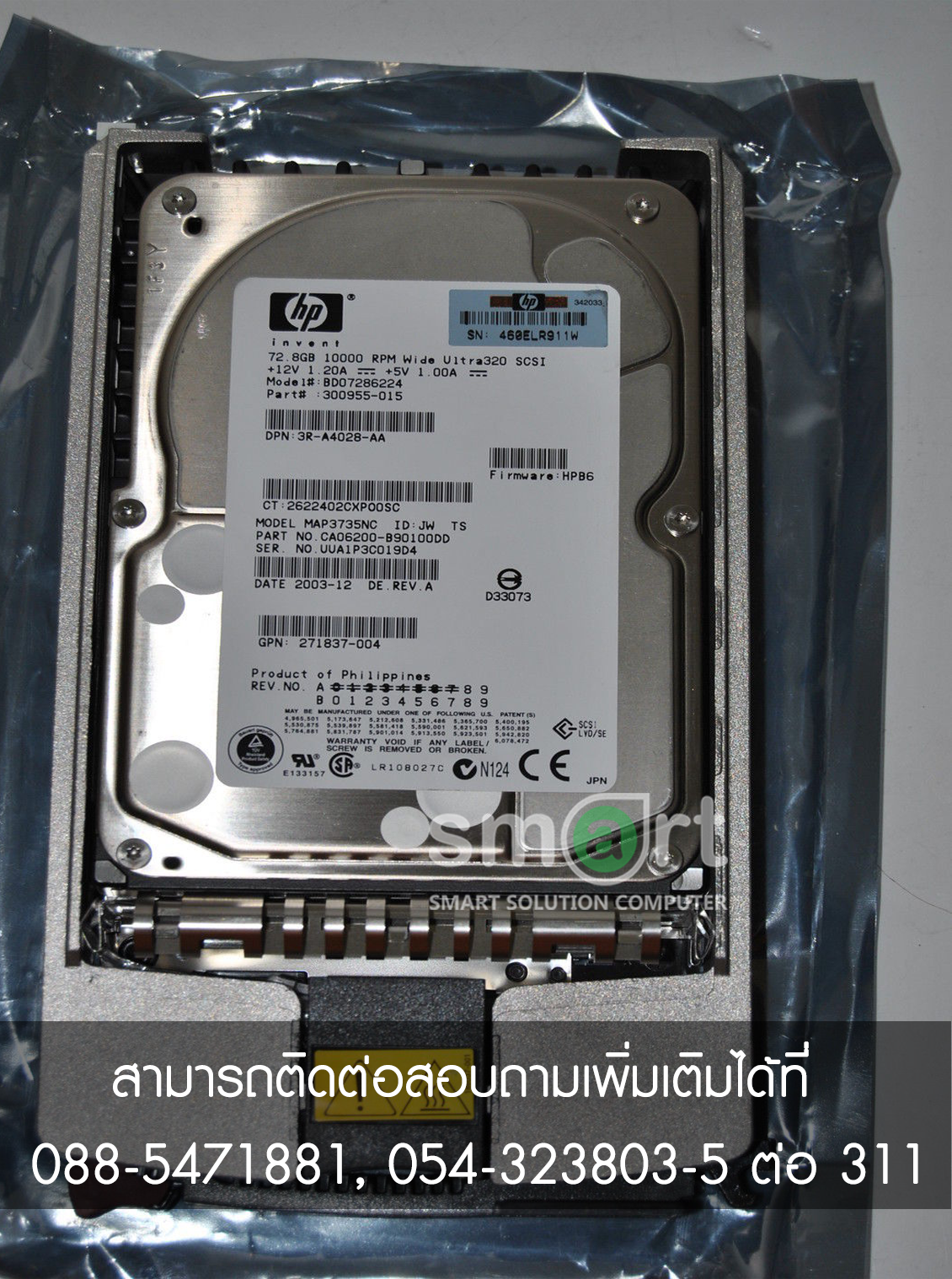

HP 72.8GB 300955-015 10K U320 SCSI 3.5INC HOT-PLUG HDD 286714-B22
Part Number(s)
Option Part# 286714-B22
Assembly Part# 300955-015
Overview:
HP Compaq Hard Drives undergo an intense qualification process that eliminates data integrity problems firmware and O/S incompatibilities and other causes of data corruption or premature failure. HP Compaq Hard Drives are specifically designed and tested for flawless operation in your equipment.
| Specifications: |
| Category | Proliant HardDrive |
| Sub-Category | 10K |
| Generation | Ultra320 |
| Part Number | 300955-015 |
| Products ID | 142261 |
| Hot Swap Tray | Included/Attached |
| Capacity | 72.8GB |
| Height | 1.0 inch/2.54cm |
| Width | 4.0 inch/10.16cm |
| Interface | Ultra320 SCSI |
| Data Transfer Rate | 320MB/s |
| Seek Time | Single Track 0.55ms |
| Seek Time | Average 4.9ms |
| Seek Time | Full Stroke 10.0ms |
| Rotational Speed | 10K |
| Bytes/Sector | 512 |
| Manufacturer | HP/Compaq |
| Application | Server Storage |
| Server Type | HP/Compaq Proliant |
| Backward Compatability | U2 and U3 Speeds |
| Pre-Failure Warranty | Yes |
| Data Storage Device Type | SAS (Server Attached Storage) |
| Hard Drive Device Type | Hard Drive for Server/Storage Unit (HP) |
| Manufacturer | HP/Compaq |
300955-015 Compatible Servers:
BL20p G1, BL20p G2, BL20p G3, BL25p, BL40p, BL45p G1, BL60p, CL1850, CL380, DL360 G1, DL360 G2, DL360 G3, DL360 G4, DL360 G4p, DL380 G1, DL380 G2, DL380 G3, DL380 G4, DL385 G1, DL560, DL580 G1, DL580 G2, DL580 G3, DL585 G1, DL590, DL740, DL760, ML330 G1, ML330 G2, ML330 G3, ML350 G1, ML350 G2, ML350 G3, ML350 G4, ML370 G1, ML370 G2, ML370 G3, ML370 G4, ML530 G1, ML530 G2, ML570 G1, ML570 G2, ML570 G3, ML750
HP QuickSpecs:
BL20p G1, BL20p G2, BL20p G3, BL25p, BL40p, BL45p G1, BL60p, CL1850, CL380, DL360 G1, DL360 G2, DL360 G3, DL360 G4, DL360 G4p, DL380 G1, DL380 G2, DL380 G3, DL380 G4, DL385 G1, DL560, DL580 G1, DL580 G2, DL580 G3, DL585 G1, DL590, DL740, DL760, ML330 G1, ML330 G2, ML330 G3, ML350 G1, ML350 G2, ML350 G3, ML350 G4, ML370 G1, ML370 G2, ML370 G3, ML370 G4, ML530 G1, ML530 G2, ML570 G1, ML570 G2, ML570 G3, ML750
