EPSON Projector V11HB28080

Projection Technology

• RGB Liquid Crystal Shutter Projection System (3LCD)

Brightness

• White Light Output (Normal / Eco): 7,300 lm / 5,110 lm

• Colour Light Output: 7,300 lm

• Light Output (Center): 7,900 lm

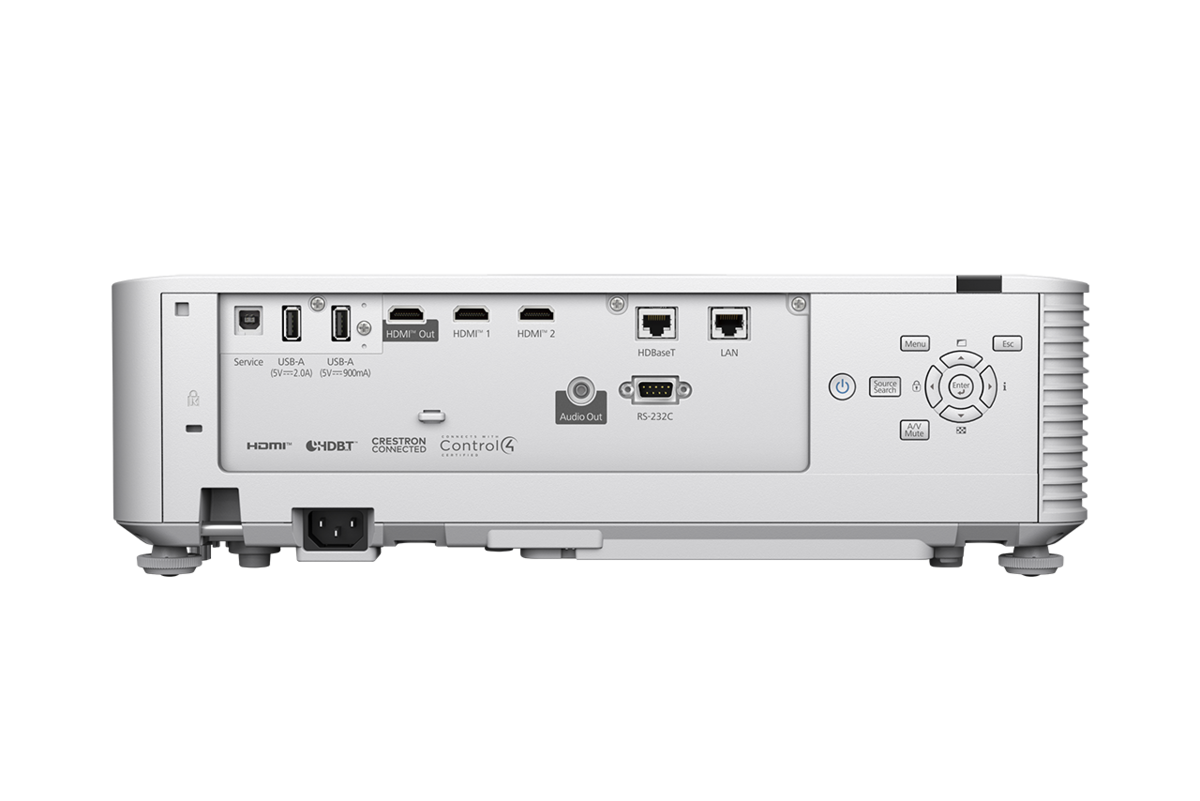

Connectivity

USB

• USB Type A:

  • Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01 or 5V/2A Power Supply

  • Port 2: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01 or 5V/0.9A Power Supply

• USB Type B: 1 (For Firmware Update, Copy OSD Settings)

Network

• Wired LAN: RJ45 x 1 (100 Mbps)

• Wireless LAN: Built-in

Digital Input

• HDMI: 2 (HDCP 2.3)

• HDBaseT: 1 (HDCP 2.3)

Digital Output

• HDMI Out: 1 (HDCP 2.3, supports only HDMI1 input)

Audio Output

• Stereo Mini: 1

Control I/O

• RS-232C: 1 (D-Sub 9pin)

Contrast Ratio

• Over 5,000,000:1

Screen Size (Projected Distance)

• Standard Size (80” diagonal): 2.33 m – 3.78 m

• Zoom (Wide): 50” – 500” [1.44 – 14.76 m]

• Zoom (Tele): 50” – 500” [2.35 m – 23.84 m]

Geometric Correction

• Vertical/Horizontal Keystone: ±30° / ±30°

• Projection Orientation: 360º Free

Operating Conditions

Temperature

• Single Use

  • Low Altitude (0 - 2,286 m / 7,500 ft): 0 - 45 °C (32 - 113 °F)

  • High Altitude (Over 2,286 m / 7,500 ft): 0 - 40 °C (32 - 104 °F)

• Multi-projection Use

  • Low Altitude (0 - 2,286 m / 7,500 ft): 0 - 40 °C (32 - 104 °F)

  • High Altitude (Over 2,286 m / 7,500 ft): 0 - 35 °C (32 - 95 °F)

• Humidity: 20% - 80% (No Condensation)

Operating Altitude

• Over 1,500 m / 4,921 ft with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up & Cool Down

• Start-Up Period: 12 seconds (Epson Logo)

• Warm-Up Period: 30 seconds

• Quick Start-Up: Less than 8 seconds (Display)

• Cool Down Period: Instant Off

Audio

• Internal Speaker: 10 W Monaural

Power

• Direct Power On / Off: Yes

• Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

• Power Consumption (220–240V area):

  • LD On (Normal / Extended): 399 W / 295 W

  • Standby (Normal / Eco): 2.4 W / 0.4 W

Weight & Dimensions

• Weight: Approx. 8.2 kg

• Dimension (Excluding Feet) (W x D x H): 440 x 304 x 122 mm

Air Filter

• Type: Electrostatic Filter

• Maintenance Cycle: 20,000 hours (Normal) / 30,000 hours (Extended)

Fan Noise

• Normal / Eco: 34 dB / 25 dB

Projection Specifications

Projection Method

• Front / Rear / Ceiling Mount

Projection System

• 3LCD Reflective, 3-chip technology, Poly-silicon TFT Active Matrix

Pixel Number

• 2,073,600 dots (1920 × 1080) × 3

Color Brightness (Color Light Output)

• 1,500 lumens

White Brightness (White Light Output)

• 1,500 lumens

Aspect Ratio

• Native 16:9 Widescreen (4:3 resize), Compatible with 4:3 and 2.35:1 video formats

• Modes: Normal, Full, Zoom

Driving Method

• Epson Poly-silicon TFT Active Matrix, 0.74-inch Wide Panel Reflective HTPS

Native Resolution

• 1080p (1920 × 1080)

Laser Type

• Laser Diode 41.9 mW (Output)

Light Source Life

• Up to 20,000 hours (ECO Mode)

Contrast Ratio

• Absolute Black (Full White 1500 lm / Full Black 0 lm)

Size – Projected Distance

• 100” diagonal (Wide: 9.3’ / Tele: 19.8’)

Colour Mode

• Dynamic

• Bright Cinema

• Natural

• Cinema

• Adobe RGB

• Digital Cinema

• 3D Dynamic

• 3D Cinema

Wireless Features

Miracast

• Certification: Wi-Fi CERTIFIED Miracast R2

• Supported Codec: H.264 (AVC)

Wireless LAN & Screen Mirroring

• Supported Mode: Infrastructure, Simple AP (Wi-Fi Direct)

• Supported Speed: IEEE 802.11a/b/g/n/ac/ax

• Security Type:

  • Infrastructure: Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP

  • Supported EAP Type: PEAP, EAP-TLS

  • Simple AP (Wi-Fi Direct): WPA2-PSK (AES)

AirPlay 2

• Supported Codecs: H.264 (AVC), H.265 (HEVC), AV1, VP9, MPEG-2, MPEG-4
