Specs
Projector
Smart projector
No
Screen size compatibility
1397 - 3175 mm (55 - 125")
Contrast ratio (dynamic)
2500000:1
Projector brightness
4000 ANSI lumens
Projection technology
3LCD
Native aspect ratio
16:9
Number of colours
1.07 billion colours
Keystone correction, horizontal
-15 - 15°
Keystone correction, vertical
-15 - 15°
Matrix size
1.57 cm (0.62")
White light output
4000 ANSI lumens
Colour light output
4000 ANSI lumens
Heat dissipation
884 BTU/h
Light source
Light source type
Laser
Service life of light source
20000 h
Service life of light source (economic mode)
30000 h
Lens system
Focus
Manual
Zoom capability
Yes
Zoom ratio
1.35:1
Throw ratio
0.45 - 0.61:1
Video
Full HD
Yes
3D
Yes
Supported video modes
1080p
Video colour modes
Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB

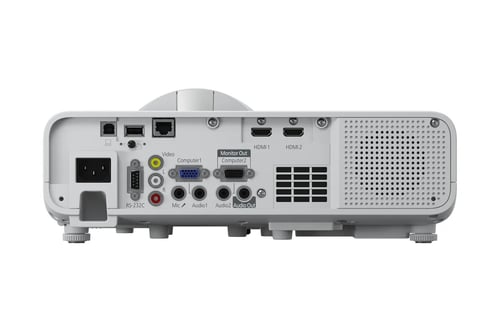

Ports & interfaces
USB 2.0 ports quantity
2
Audio (L/R) in
1
Audio (L/R) out
1
Microphone in
Yes
Serial interface type
RS-232C
VGA (D-Sub) ports quantity
3
HDMI ports quantity
2
DVI port
No
DC-in jack
Yes
Consumer Electronics Control (CEC) support
Yes
Network
Smart TV
No
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast
Yes
Storage
Card reader integrated
No
Features
Interactive
No
Noise level (economic mode)
27 dB
On Screen Display (OSD)
Yes
Screen mirroring
Yes
Auto signal detection
Yes
Noise level
37 dB
Country of origin
Philippines
Password protection
Yes
Multimedia
Built-in speaker(s)
Yes
RMS rated power
16 W
Design
Market positioning
Portable
Product type
Short throw projector
Product colour
White
Placement
Ceiling, Desktop, Wall
Cable lock slot
Yes
Cable lock slot type
Kensington
Display
Built-in display
No
Colour depth
10 bit
Power
Power source
AC
Power consumption (typical)
201 W
Power consumption (standby)
0.5 W
Power consumption (economy mode)
191 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Cord length
1.8 m
Operational conditions
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
325 mm
Depth
337 mm
Height
90 mm
Weight
4.6 kg
Packaging content
Remote control included
Yes
Cables included
AC, HDMI
Quick start guide
Yes
Manual
Yes
Bundled software
EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management
Other features
Supported network protocols
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
