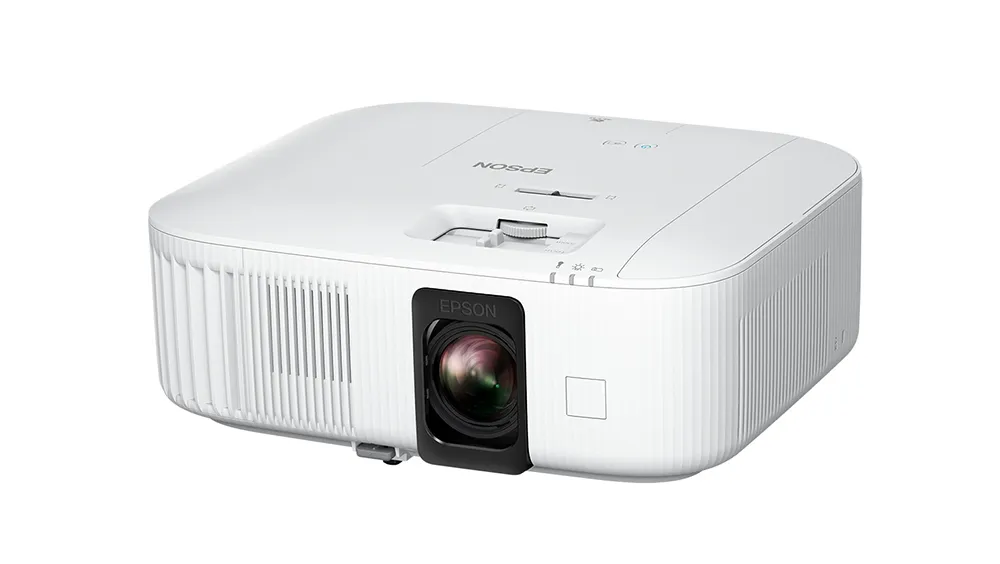

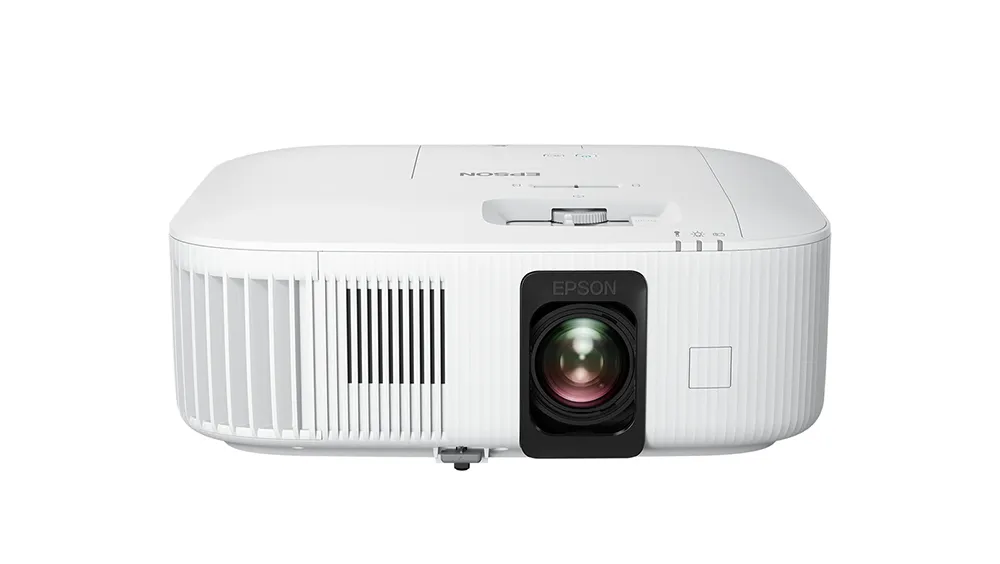

EPSON Projector V11HA73052

Projection Technology:

Projection Technology:

RGB liquid crystal shutter projection system

Specifications of Main Parts:

LCD:

Native Resolution: 1080p

Size: 0.61” wide panel (D10, C2 Fine, 10Bit)

Projection Lens:

Projection Lens Type: Optical Zoom

(Manual) / Focus (Manual)

F-Number : 1.49 – 1.77

Focal Length: 18.2 – 29.2 mm

Zoom Ratio: 1 – 1.62

Throw Ratio: 1.32 – 2.15 (Wide – Tele)

Lamp:

Type: 200W UHE

Life (Normal / Eco)*1: 4,500 / 7,500 hours

Brightness:

White Light Output (Normal/Eco):

2,800 lm / 1,900 lm

Colour Light Output:

2,800 lm

Connectivity:

USB Interface:

USB Type B: 1 (For firmware update and copy OSD settings)

Network:

Wireless: Yes (SMP function only)

Digital Input:

HDMI: 1

Audio Out:

Stereo Mini x 1

Control I/O:

RS-232C: N/A

Trigger Out (12V): N/A

Contrast Ratio:

Contrast Ratio:

35,000:1

Screen Size (Projected Distance):

Zoom : Wide:

40” to 500” [1.15 to 14.83 m]

Zoom : Tele:

40” to 500” [1.89 to 24 m]

Standard Size:

80” screen 2.34 to 3.81 m

Geometric Correction:

Vertical Keystone:

±30 degrees

Adjustment Functions:

Picture In Picture:

N/A

Aspect Mode:

Yes (Auto / Normal / Full / Zoom )

Frame Interpolation:

Off / Low / Normal / High

Image Enhancement:

Image Preset Mode:

Yes

Mpeg Noise Reduction:

Yes

Detail Enhancement:

Yes

Start-Up Period:

Start-Up Period:

Under 15 seconds

Warm-up period: 30 seconds

Operating Temperature:

Operating Temperature:

5 - 35 °C <41 - 95 °F> (0m / 0ft - 2,286m / 7,500ft)

5 - 30 °C <41 - 86 °F> (Over 2,286m / 7,500ft)

(20% - 80% Humidity, No Condensation)

Operating Altitude:

Operating Altitude:

0 m to 3,048 m <0 ft to 10,000 ft> (Over 1,500 m / 4,921 ft : with High Altitude mode)

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D):

333 x 123 x 275 mm

Power:

Power Consumption:

Lamp On (Normal/ECO): 301W / 268W

Network Standby: N/A

Energy Saving: 0.3W

Weight:

Weight:

Approx. 4.1kg

Direct Power On/Off:

Direct Power On/Off:

Yes / N/A

Wireless Specifications (Smart Media Player Function):

Supported Speed For Each Mode:

IEEE 802.11a (5 GHz),

IEEE 802.11b (2.4 GHz),

IEEE 802.11g (2.4 GHz),

IEEE 802.11n (2.4 GHz and 5 GHz),

IEEE 802.11ac (5 GHz)

Wireless LAN Security:

WPA2/WPA3 PSK (AES)

Wi-Fi Generation:

Wi-Fi 5

Supported OS:

Android OS

Video Output Resolution:

Up to 3840 x 2160 60fps 4:4:4

Cool Down Period:

Cool Down Period:

Under 5 seconds

Fan Noise:

Fan Noise (Normal / Eco):

36dB / 28dB

Lens Shift Range:

Vertical Lens Shift:

±96.3 % (H Center, Powered)

Horizontal Lens Shift:

±47.1 % (V Center, Powered)

Projectors Facets:

4K PRO-UHD, Projectors Facets:

Yes

Features, Projectors Facets:

Wifi

4k Pro UHD

Laser / Lamp, Projectors Facets:

Lamp

Screen Size, Projectors Facets:

50 - 300

Projector Primary Usage, Projectors Facets:

Home Theater

Resolution, Projectors Facets:

4K PRO-UHD

Contrast Ratio, Projectors Facets:

200,000:1

Brightness Range Lumens, Projectors Facets:

2000

Power Supply Voltage:

Power Supply Voltage:

100 - 240 V AC +/- 10%, 50/60 Hz
