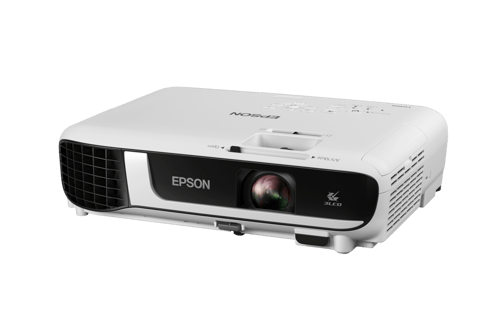

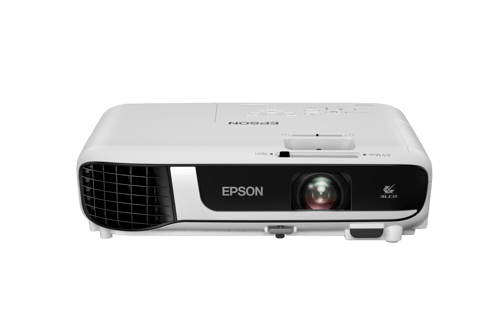

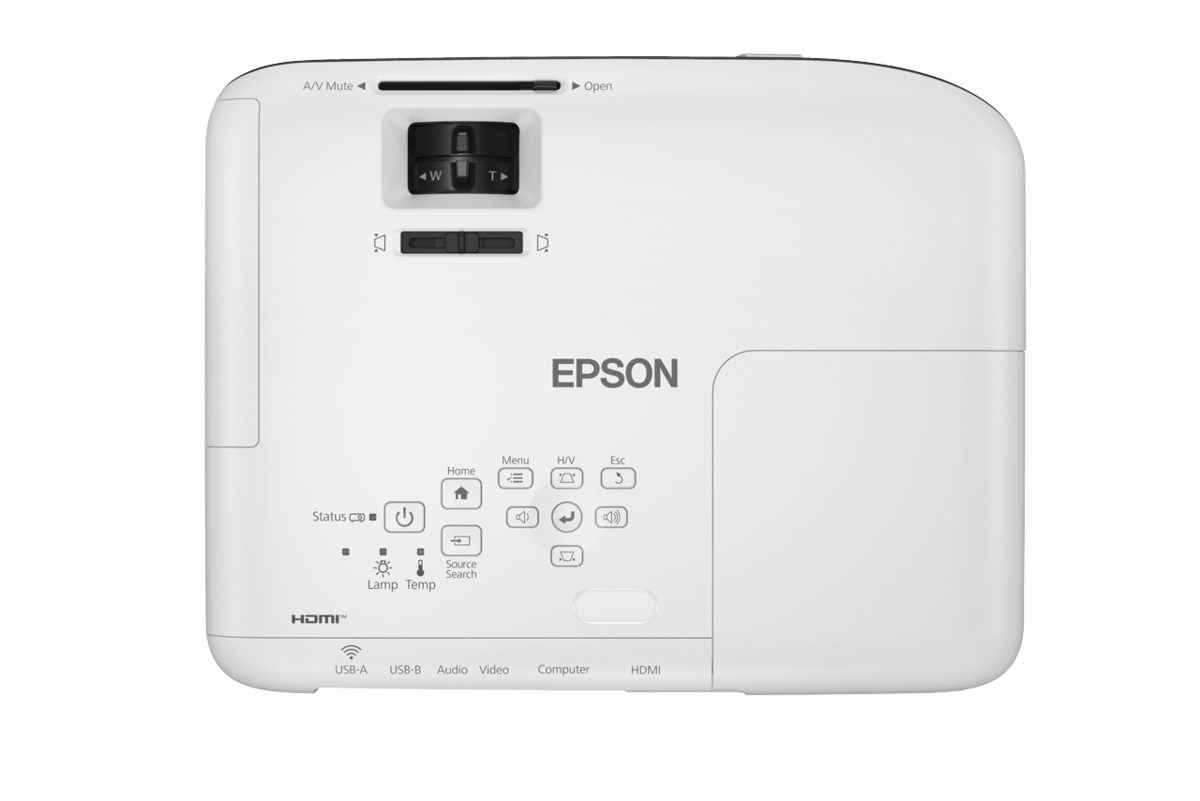

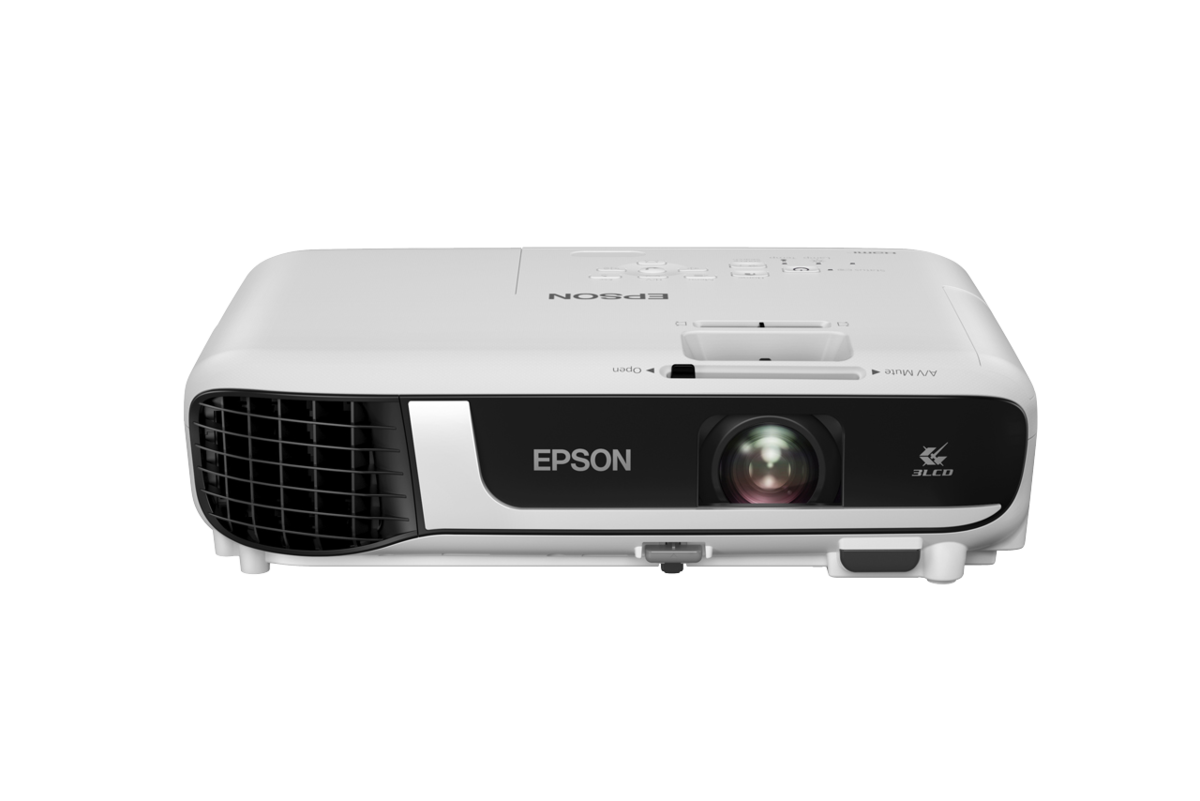

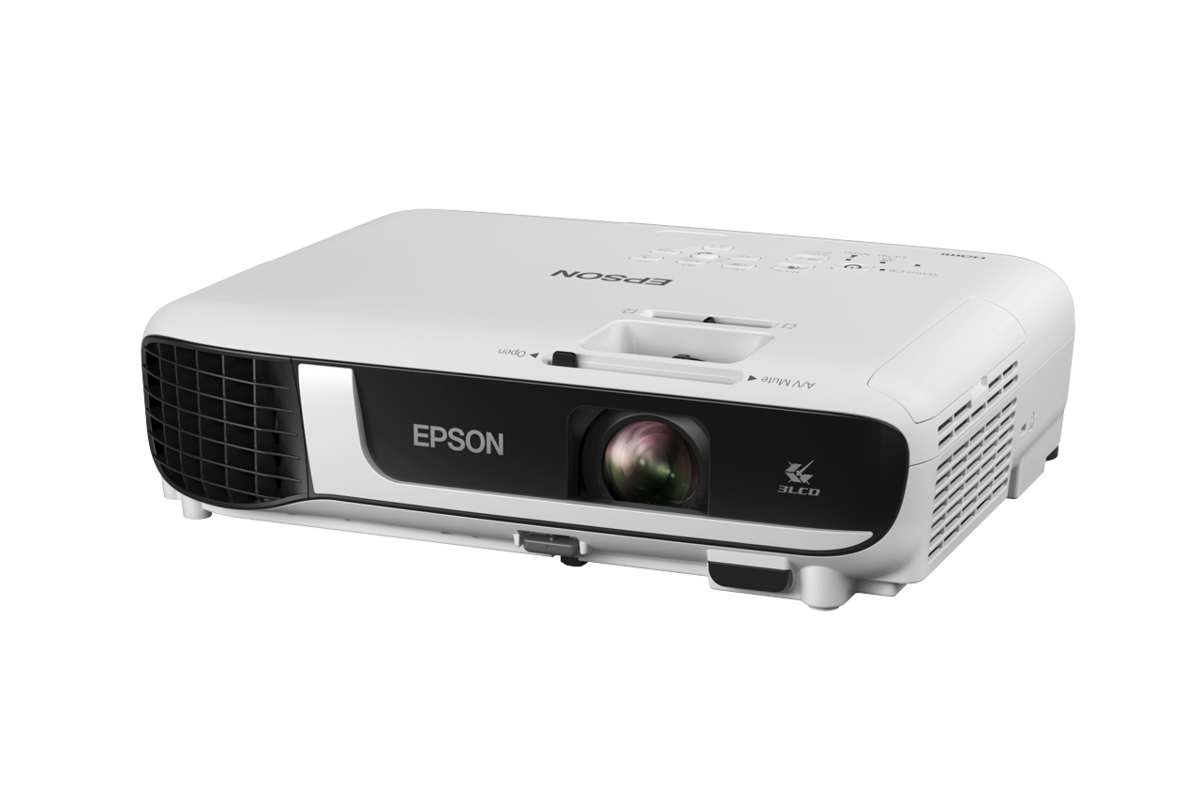

EPSON Projector V11H976052

Projector Specifications

Projection Technology

• RGB Liquid Crystal Shutter Projection System (3LCD)

Brightness

• White Light Output (Normal / Eco): 3,800 lm

• Colour Light Output: 3,800 lm

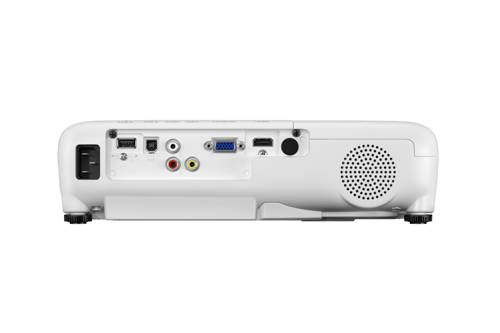

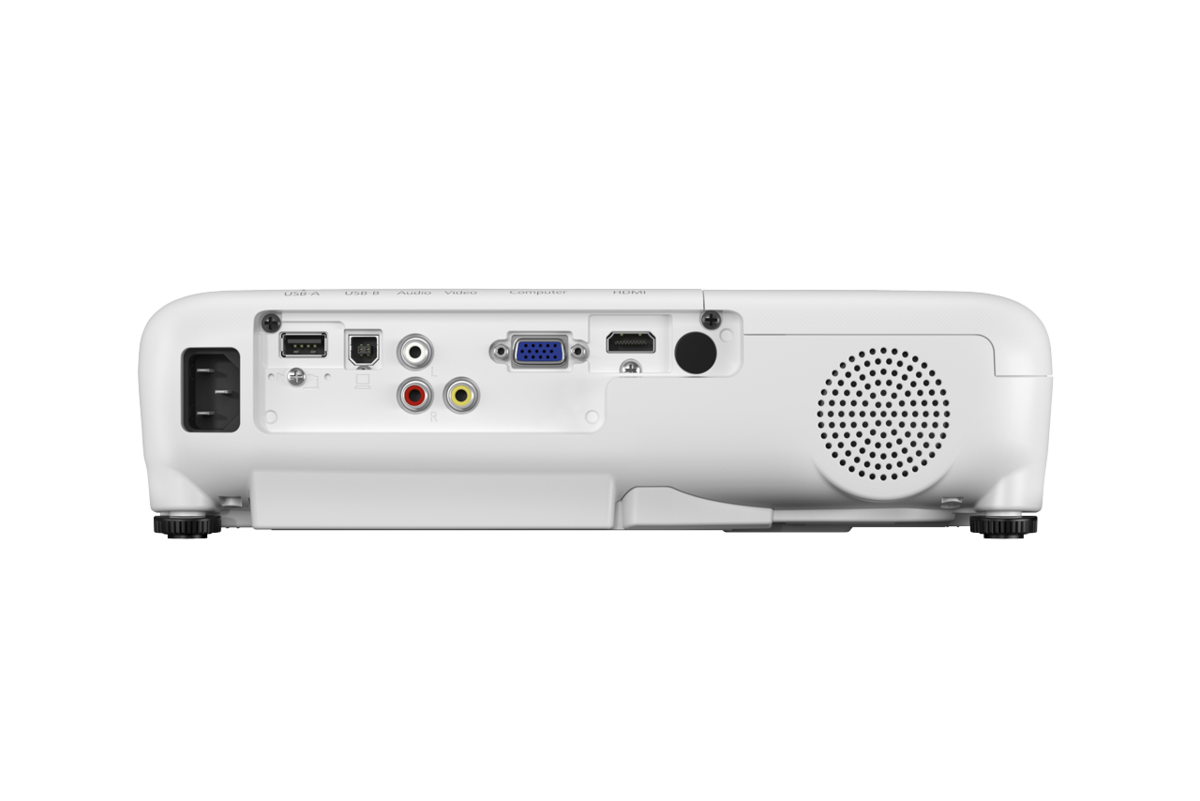

Connectivity

USB Interface:

• USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)

• USB Type B: 1 (For Firmware Update, Copy OSD Settings)

Network:

• Wireless: Optional (ELPAP11)

Analog Input:

• Composite: 1 RCA

• D-Sub 15pin: 1

Digital Input:

• HDMI: 1 (MHL not supported)

Audio Input:

• 2 RCA: 1

Contrast Ratio

• Contrast Ratio: 16,000:1

Screen Size (Projected Distance)

• Standard Size (Tele): 30” – 300” [1.07 – 10.95 m]

• Standard Size (Wide): 30” – 300” [0.89 – 9.12 m]

Geometric Correction

• Vertical / Horizontal Keystone: ±30° / ±30° (Auto Vertical Keystone only)

• Quick Corner: Yes

Operating Conditions

• Operating Temperature:

  • Low Altitude: 5 – 40 °C (41 – 104 °F)

  • High Altitude: 5 – 35 °C (41 – 95 °F)

  • Humidity: 20% – 80% (No Condensation)

• Operating Altitude: 0 – 3,048 m (0 – 10,000 ft)

Start-Up / Cool Down

• Start-Up Period: Up to 6 seconds (Epson Logo)

• Warm-up Period: 30 seconds

• Cool Down Period: Instant Off

Direct Power On / Off

• Yes

Dimensions & Weight

• Dimensions (W × H × D): 302 × 77 × 234 mm (excluding feet)

• Weight: Approx. 2.5 kg

Air Filter

• Type: High Efficiency Filter

• Maintenance Cycle: 6,000 / 12,000 hours (Normal / Eco)

Fan Noise

• Fan Noise (Normal / Eco): 37 dB / 28 dB

Power

• Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Projector Facets

• Features: Wi-Fi, Quick Corner

• Light Source Type: Lamp

• Resolution: XGA

• Contrast Ratio: 16,000:1

• Brightness Range (Lumens): 2,000+

Optional Wireless Specifications

• Supported Speed for Each Mode:

  • IEEE 802.11b (2.4GHz): 11 Mbps

  • IEEE 802.11g (2.4GHz): 54 Mbps

  • IEEE 802.11n (2.4GHz): 72.2 Mbps

  • IEEE 802.11a (5GHz): 54 Mbps

  • IEEE 802.11n (5GHz): 150 Mbps

• Wireless LAN Security:

  • Infrastructure: OPEN, WPA2 / WPA3-PSK

  • Access Point: OPEN, WPA2-PSK (AES)

Specifications of Main Parts

LCD:

• Native Resolution: XGA (1024 × 768)

• Size: 0.55” (C2 Fine)

Light Source:

• Type: 210 W UHE

• Life (Normal / Eco): 6,000 / 12,000 hours

• Aspect Ratio: 4:3

Projection Lens:

• Type: Optical Zoom (Manual) / Focus (Manual)

• F-Number: 1.49 – 1.72

• Focal Length: 16.90 – 20.28 mm

• Zoom Ratio: 1 – 1.2

• Throw Ratio: 1.48 – 1.77 (Wide to Tele)
