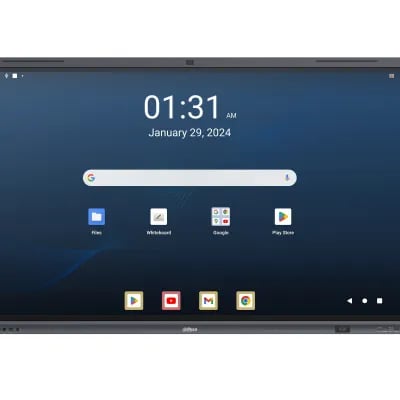

Dahua Smart Whiteboard LPH65-MC480 + ROLLING STAND + Screen Sharing | กรุณาติดต่อเจ้าหน้าที่เพื่อขอใบเสนอราคา

Built-in System

Main Processor

RK3588

Operating System

Android 13.0

CPU

Quad-core A76 + Quad-core A55

CPU Frequency

2.4 GHz

GPU

Mali-G610 MP4

RAM

8 GB

ROM

128 GB

General

Operating System of External Module

Windows 7/8/10/11

Power Supply

100–240 VAC, 50/60 Hz, 4.5 A

Power Consumption

170 W (typ.);
450 W (max.)

Standby Power Consumption

≤0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–90% (RH)

Storage Humidity

10%–90% (RH)

Product Material

Metal

Glass

3.2 mm anti-glare tempered glass

Casing Color (Frame/Rear)

Black

Product Dimensions

1,488.4 mm × 915.3 mm × 86.2 mm (58.60" × 36.04" × 3.39") (W × H × D)

Frame Size

U: 33.3 mm, L/R: 14.6 mm, D: 43.0 mm (U: 2.42", L/R: 0.69", D: 1.11")

Packaging Dimensions

1,628.0 mm × 208.0 mm × 1,014.0 mm (64.09" × 8.19" × 39.92") (L × W × H)

Net Weight

36.55 kg (80.58 lb)

Gross Weight

46.5 kg (102.52 lb)

Holes Distance

600 mm × 400 mm (23.62" × 15.75")

Installation

Wall mount or mobile bracket

Packing List

power cord × 1
Smart interactive whiteboard × 1
Stylus pen × 2
Wall mount bracket × 1
remote control × 1
Pack of wall mount screws × 1

LCD Panel

Screen Size

65 inch

Backlight

DLED

Aspect Ratio

16: 9

Brightness

400 cd/m² (typ.)

Static Contrast Ratio

VA: 5000: 1 (typ.); IPS: 1200: 1 (typ.)

Resolution

3,840 (H) × 2,160 (V)

Viewing Angle

178° (H)/178° (V)

Lifespan

≥50,000 hrs

Display Color

1.07 Billion (10 bits)

Response Time

6.5 ms

Refresh Rate

60 Hz

Camera

Camera

Android: Photo: 48 MP; Video: 8 MP
Windows: Photo: 8 MP; Video: 8 MP

Field of View

H: 98°; D: 106°

Device Ports

Light Sensor

Yes

Front Button

6 buttons: Power supply, menu, signal source, curtain, volume and annotation

Front Ports

2 × USB 3.2 Gen1 Type-A
1 × HDMI IN
1 × USB Type-C IN (100 W fast charge, data transmission, local area network)
1 × Touch USB 2.0 Type-B

Rear Port

3 × HDMI IN (4K@60 Hz)
1 × HDMI OUT (4K@60 Hz)
1 × DP IN
1 × USB 2.0 Type-A
2 × USB 3.2 Gen1 Type-A
1 × USB Type-C IN port with 15 W max charge that receives input for audio, videos, data, and network sharing
1 × USB Type-C OUT (4K@60 Hz)
2 × TOUCH USB 2.0 Type-B ports which support touch and wired network sharing of 100 Mbps
1 × AUDIO IN (3.5 mm port)
1 × AUDIO OUT (3.5 mm port)
1 × SPDIF
1 × RS232
1 × RJ45 IN (10/100/1,000 Mbps)
1 × RJ45 OUT (10/100/1,000 Mbps）

Wi-Fi

Yes

Wi-Fi Standard

Wi-Fi Station: 802.11b/g/n/a/ac/ax
Wi-Fi AP: 802.11b/g/n/a/ac

Wi-Fi Frequency Range

2400–2483.5 MHz;
5150–5250 MHz;
5250–5350 MHz;
5470–5725 MHz;
5725–5850 MHz;

MAX Power Transmission (Wi-Fi)

≤20 dBm@2400–2483.5 MHz;
≤23 dBm@5150–5250 MHz;
≤20 dBm@5250–5350 MHz;
≤27 dBm@5470–5725 MHz;
≤14 dBm@5725–5850 MHz;

Bluetooth

Yes

Bluetooth Standard

BT5.2 BR/EDR/BLE

Bluetooth Frequency Range

≤20 dBm@2400–2483.5 MHz

MAX Power Transmission (Bluetooth)

≤20 dBm

RFID Modulation Method

ASK

RFID Frequency Range

13.56 MHz

MAX Power Transmission (RFID)

13.56 MHz:≤42dBuA/m @10 m

Function

IR Receiver

1

Card Swiping with NFC

Yes

Wireless Access Point

Wi-Fi 5, 2.4 GHz and 5 GHz dual band, 802.11 ac/n

Touchscreen

Response Time

≤2.0 ms

Touch Technology

Infrared

Attachment Method

Zero Air Gap

Touch Points

Android:32 points;Windows:50 points

Touch Accuracy

± 0.5 mm (≥ 90% touching area)

Valid Touch

≥ 1.5 mm (0.06") (≥ 90% touching area)

Touch Height

≤0.99 mm (average)

Writing Mode

Finger and stylus pen (magnetic)

Communication Mode

USB

Anti-light Interference

Anti-glare tempered glass

Surface Hardness

≥9H

Touch Resolution

32,768 × 32,768

Speaker

Built-in Speaker

4 (CH2.2）

Power

2 × 8 W + 2 × 18 W

Frequency

150 Hz–20 kHz

Microphone

Microphone

8

Pick-up Distance

0 m–12 m (0 ft–39.37 ft)

AGC

Yes

Echo Cancellation

Yes

Intelligent Noise Filtering

Yes

Certification

Certifications

CE, EDLA, Energy Star
