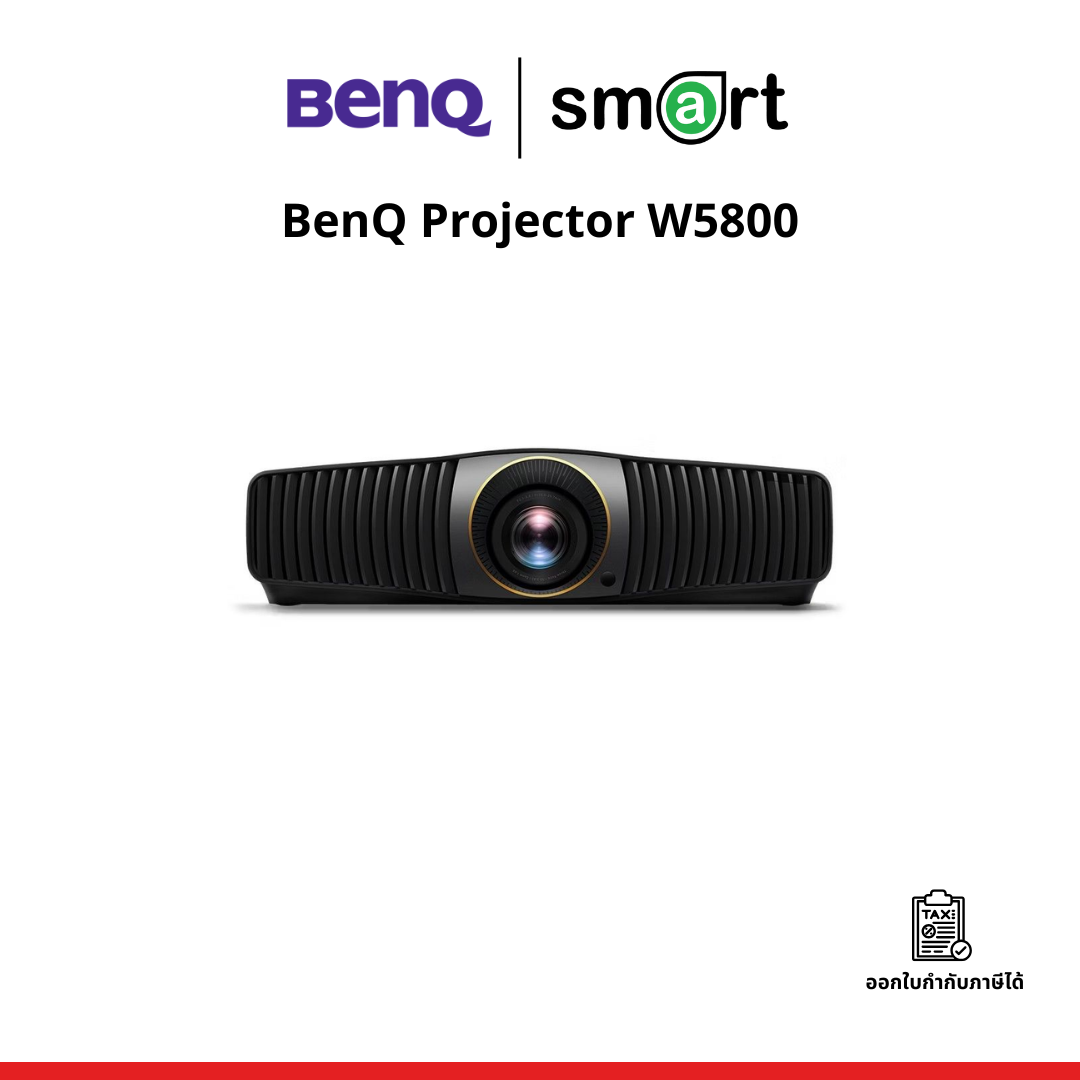

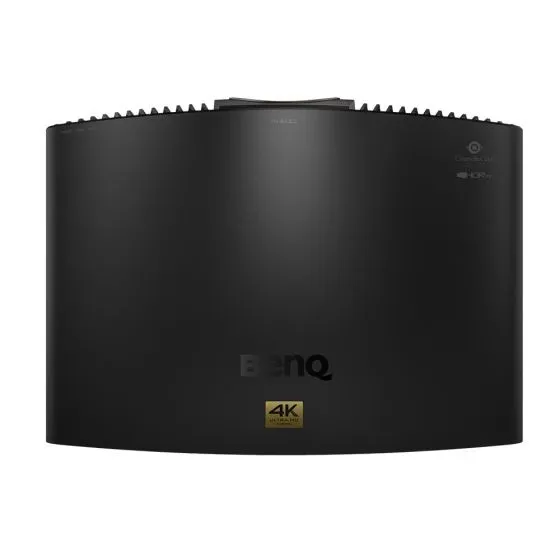

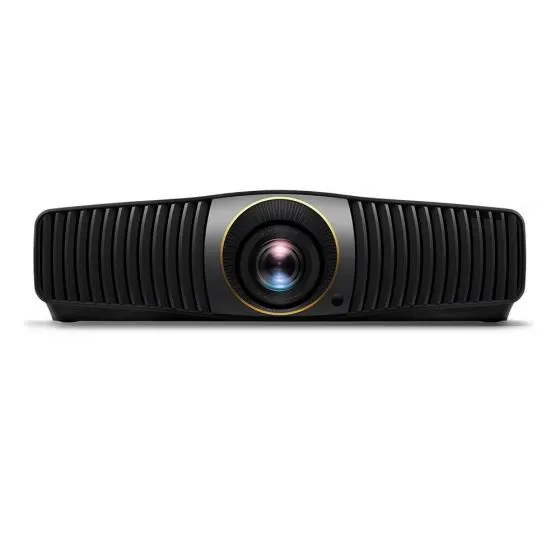

BenQ Projector W5800

Display

• Brightness (ANSI lumens)

  2600

• Resolution

  4K UHD (3840×2160)

• Native Aspect Ratio

  16:9

• Contrast Ratio (FOFO)

  (w/ Lightsource Dimming), 3,000,000:1

• Display Color

  30-bit (1.07 billion colors)

• Light Source

  Laser

• Light Source Life

  a. Normal 20000 hrs, b. ECO 25000 hrs

Optical

• Throw Ratio

  1.52~2.45

• Zoom Ratio

  1.6x

• Lens

  F/# 2.1 ~ 3.0 , f 16.0 (Wide) ~25.7 (Tele) mm

• Projection Offset (Full-Height)

  0%

• Keystone Adjustment

  2D, Vertical ± 35 degrees; Horizontal ± 35 degrees

• Lens Shift Vertical

  ±50% (Motorized)

• Lens Shift Horizontal

  ±21% (Motorized)


• DCI-P3 Coverage

  100%

• Rec. 709 Coverage

  100%

• Picture Modes

  3D, Bright, Bright Cinema, Cinema, FILMMAKER MODE, FILMMAKER MODE HDR, HDR10, HDR10+, HLG, ISF Day, ISF Night, User

Compatibility

• Input Lag

  13 ms (1080p@120Hz), 17.9ms (1080P 60Hz), 17.9ms (4K 60Hz)

• Resolution Support

  VGA (640 x 480) to 4K UHD (3840 x 2160)

• Horizontal Frequency

  15K~135KHz

• Vertical Scan Rate

  23~240Hz

I/O Interface

• HDMI in

  (x2)

• LAN (RJ45)

  (10/100 Mbps), (x1)

• 3D Sync out

  (x1), VESA

• USB Type A

  USB Type A-1 (2.0/Power Supply2.0A/Reader), USB Type A-2 (2.0/Power Supply1.5A/Reader)

• USB Type B

  (x1), USB Type B-1(service)

• RS232 in (DB-9pin)

  (x1)

Audio

• Speaker

  No Speaker

• HDMI Audio Return

  eARC, 7.1 channel

• S/PDIF

  2-Channel, PCM, Multi-Channel, RAW

Environment

• Operating Temperature

  0~40℃

• Power Supply

  AC 100 to 240 V, 50/60 Hz

• Typical Power Consumption (110V)

  Max 450W/ Normal 380W/ ECO 240W

• Stand-by Power Consumption

  <0.5W

• Network Stand-by Power Consumption

  <2W

• Acoustic Noise (Typ./Eco.)(dB)

  30/27

Accessories

• Remote Control w/ Battery

  RCV024

• Power Cord (by region)

  x1 (1.8M)

• HDMI cable

  3.0m

• Quick Start Guide

  (x1) 18L

• Warranty Card (by region)

  Yes

• Lens cover

  Yes

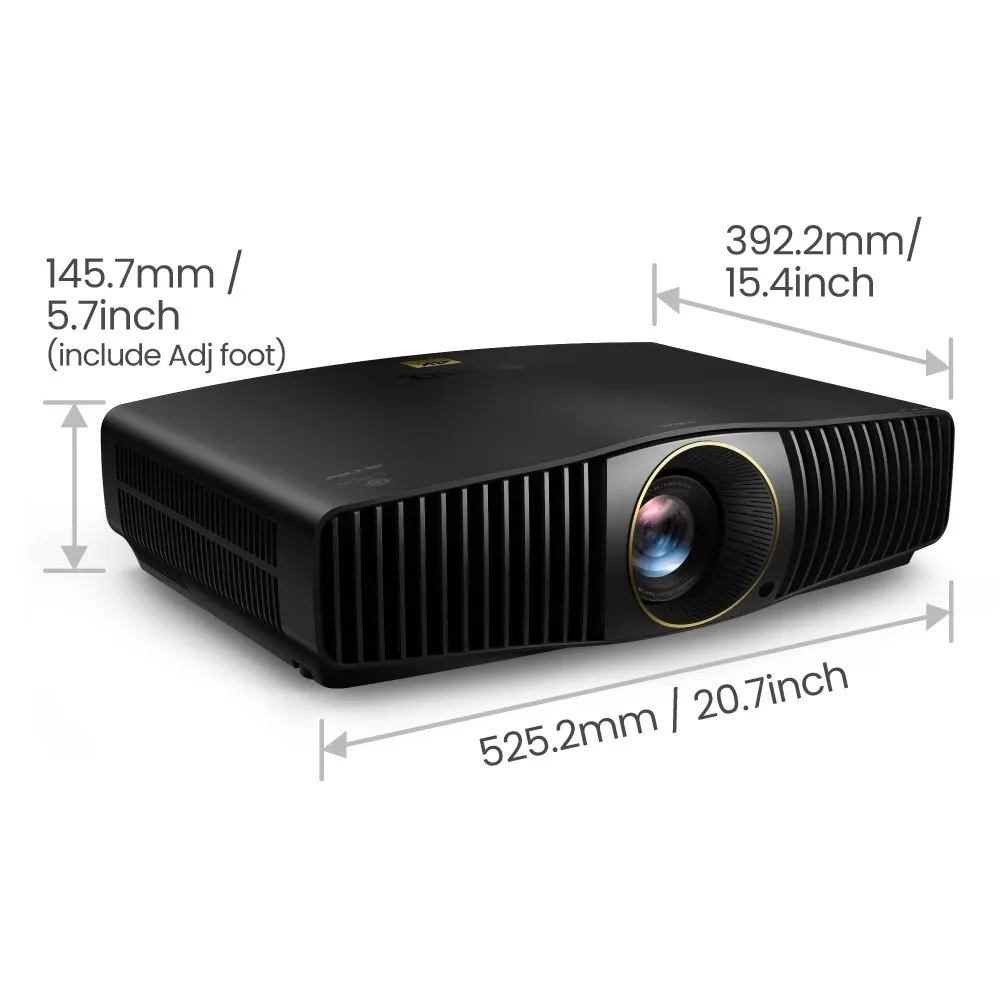

Dimension & Weight

• Dimensions (WxHxD) (mm)

  525.2x145.7x392.2

• Net Weight (kg)

  10.5

• Dimensions (WxHXD) (inch)

  20.7x5.7x15.4

• Net Weight (lb)

  23.1

Projection System

• Projection System

  DLP
