All Specifications
Display
Brightness (ANSI lumens)
4000
Resolution
XGA (1024x768)
Native Aspect Ratio
4:3
Contrast Ratio (FOFO)
20,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
Lamp
Light Source Life
a. Normal 6000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs, b. ECO 10000 hrs
Optical
Throw Ratio
1.96~2.15
Zoom Ratio
1.1x
Lens
F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
Projection Offset (Full-Height)
110%
Keystone Adjustment
1D, (Auto) Vertical ± 30 degrees
Picture Modes
3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2
Compatibility
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency
15K~102KHz

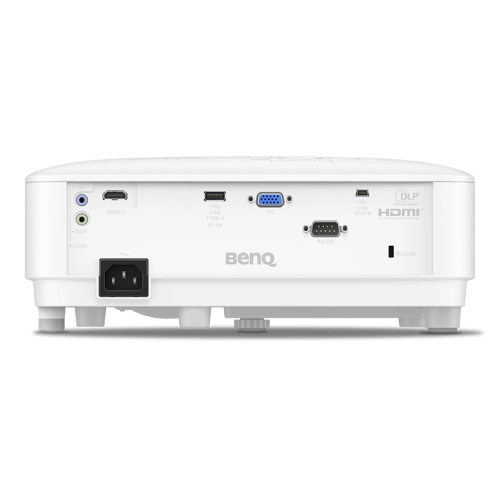

I/O Interface
PC in (D-sub 15pin)
(x1)
HDMI in
HDMI-1 (1.4a/HDCP1.4)
USB Type A
(x1)
USB Type Mini B
(x1)
RS232 in (DB-9pin)
(x1)
Audio
Speaker
(x1), 10W
Audio in (3.5mm Mini Jack)
(x1)
Audio out (3.5mm Mini Jack)
(x1)
Environment
Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
260W/110V
Acoustic Noise (Typ./Eco.)(dB)
34/29
Accessories
Remote Control w/ Battery
RCX016
Power Cord (by region)
x1 (1.8M)
3D Glasses
DGD5, (Optional)
Quick Start Guide
(x1) 21L
Warranty Card (by region)
Yes
Universal Ceiling Mount
CM00G3, (Optional)
Dimension & Weight
Dimensions (WxHxD) (mm)
296 x120 x221
Net Weight (kg)
2.3
Projection System
Projection System
DLP
