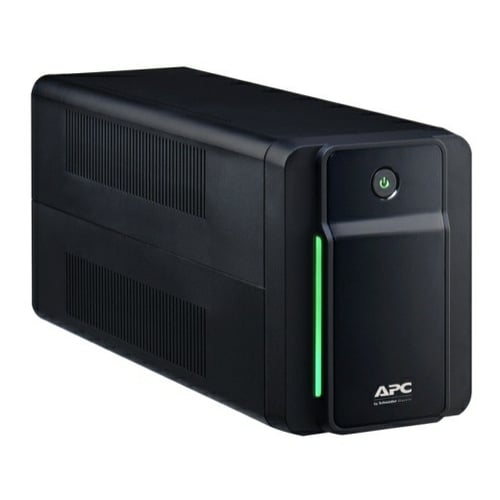

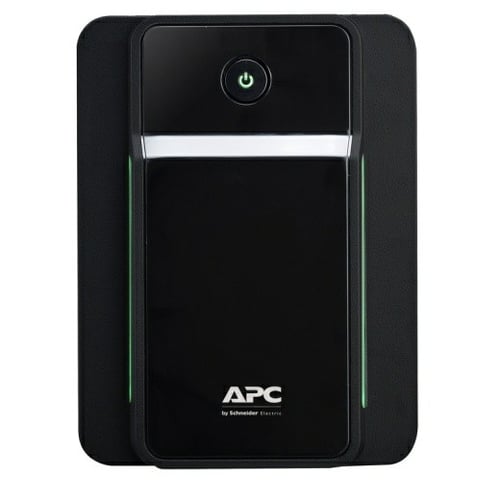

Brand : APC
Model : BX950MI-MS
Type :
Line interactive
Rated Capacity :
520Watts / 950VA
Nominal Input Voltage :
230V
Nominal Output Voltage :
230V
Input Frequency :
50/60 Hz +/- 5 Hz Auto-sensing
Backup Time :
N/A
Transfer Time :
6 ms typical : 10 ms maximum
Display :
None

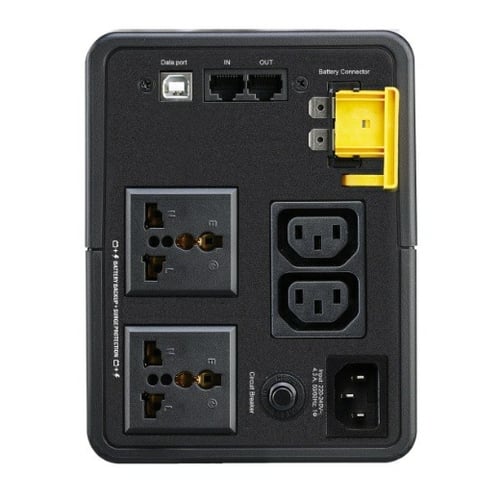

Input Connections :
IEC 60320 C14
Output Connections :
(2) IEC 60320 C13 (Battery Backup)
Interface Port :
RJ45 10/100/1000 Base-T Ethernet protection
Indicator & Audible Alam/ Protection :
LED Status display with on line : on battery
Battery Type :
Lead-acid battery
Waveform Type :
Stepped approximation to a sinewave
Typical recharge time :
8hour(s)
Battery Replacement :
N/A
Features :
N/A
Cord Length :
1.2meters
Environment
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3000meters
Storage Temperature : -15 - 40 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 3000meters
Audible noise at 1 meter from surface of unit : 40.0dBA
Protection Class : IP20
Package Contents :
N/A
Dimension (W x D x H) : 12.00 x 35.50 x 16.00 cm
Net Weight 6.10 KG
Package Dimension (W x D x H) : 19.70 x 43.00 x 25.00 cm
Gross Weight 6.60 KG
Volume 21,177.50 cm3
