Brand
Yealink
Description

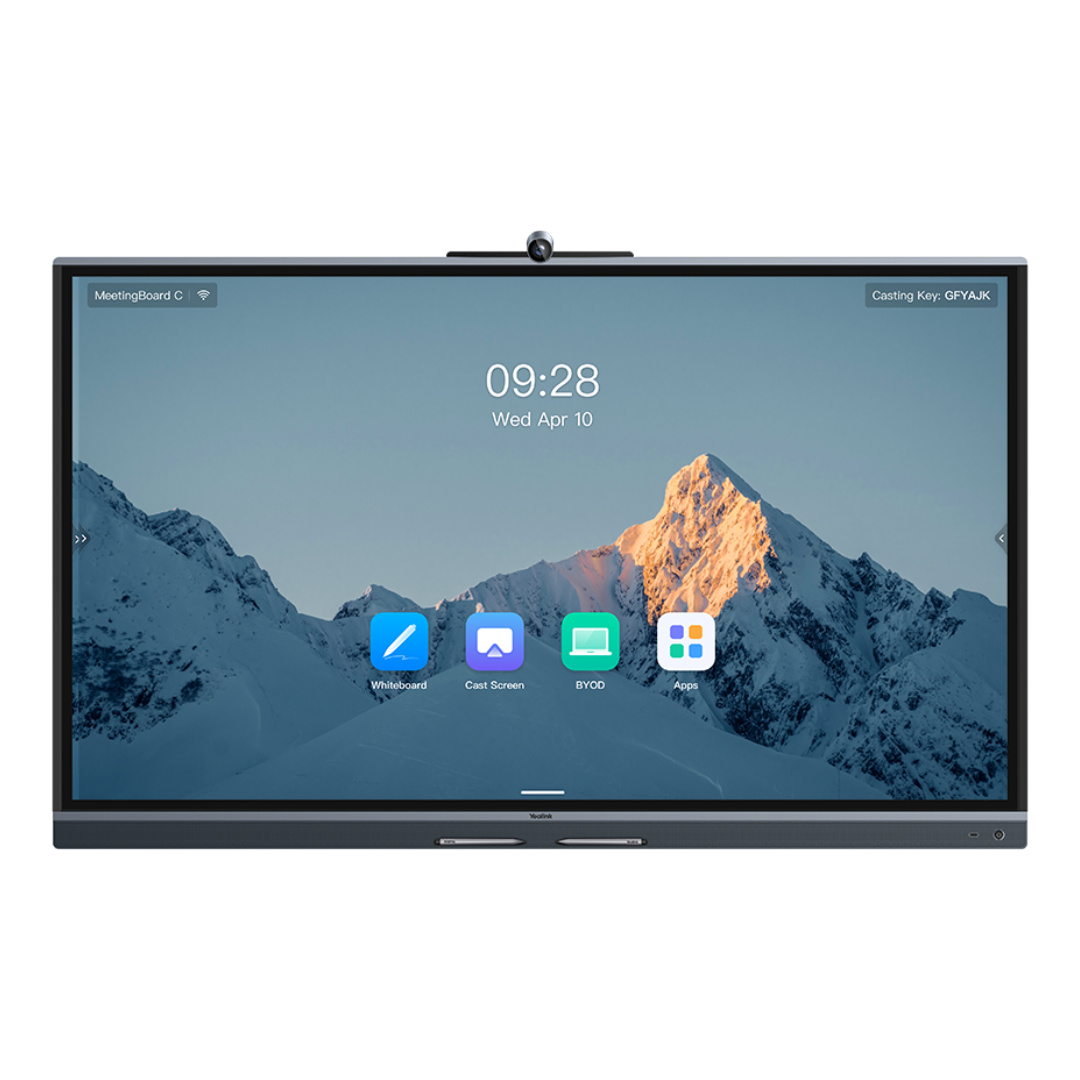

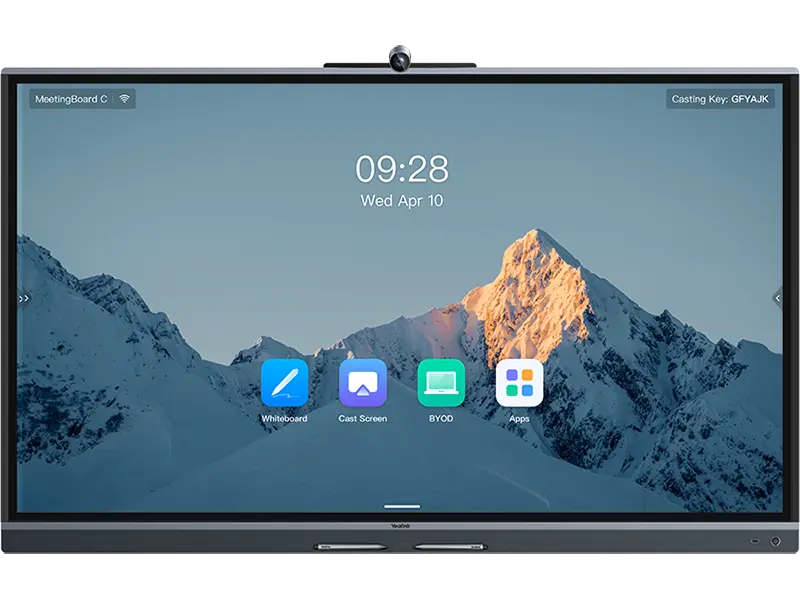

Yealink MeetingBoard65C for Small and Medium Rooms, Manager Office (MB65C-A02)
SKU
MB65C-A02
Display
MeetingBoard 65 C: 65 inch
Resolution: 3840 × 2160
Color Gamut: 72% NTSC / 99% sRGB
Color Depth: 1.07 billion colours (10 bit)
Contrast Ratio: 1200:1
Max Brightness: 350 cd/m²
Refresh Rate: 60 Hz
Viewing Angle: 178° horizontal / 178° vertical
Touch
Touch Technology: Infrared
Touch Height: 1.5 mm
Touch Accuracy: ±1 mm
Touch Points: 20 points
Touch Latency: 36 ms
Four-level stylus
System
Operating System: Android 15.0
Memory: 8 GB
Flash: 64 GB
CPU: 4 cores @ 2.2 GHz + 4 cores @ 2.0 GHz
AI Computing Power: 5T FLOPS
Camera
Max Resolution: Built-in 50 MP
Image Sensor: 1/1.56 Sony Sensor X1
Digital Zoom: 4x
Max Resolution: 3840 × 2160
Max Frame Rate: 60 Hz
Video Output Resolution: 3840 × 2160
Speakers
2 × full-range speakers
Frequency Response: 90 ~ 20 KHz
Sensitivity: 81 ± 3 dB SPL @1m, 1W
Sampling Rate: 48 KHz - Expansion Output: 3.5 mm supported
THD: <5% @ 20 W, 1 KHz
Rated Impedance: Tweeter 4 Ω / Full-range 8 Ω
Rated Power: 20 W
Max Power: 25 W
Microphones
Built-in 8 MEMS microphone array
Pickup Distance: 8 m full-duplex
SNR: 70 dB @ 1 KHz
Max SPL: 130 dB SPL
Equivalent Noise Level: 24 dB SPL
Dynamic Range: 24130 dB SPL
Sensitivity: -38 ± 1 dBV/Pa
Frequency Response: 20 Hz ~ 20 KHz
Sampling Rate: 48 KHz
Bit Depth: 32-bit
Expansion Input: 3.5 mm supported
Video Resolution
Lens: up to 4K@30fps
Content Sharing: Local HDMI IN up to 4K@60fps, in-meeting up to 4K@15fps
Power Supply
Power Consumption (65C): Max 183 W / Typical 140 W
Power Consumption (75C): Max 308 W / Typical 176 W
Power Adapter: 100240 V ~ 50/60 Hz
USB Output: 5 V ~ 0.5 A
Warranty
25 months
