| Brand | APC |
| Model | BX750MI-MS |
| Type | Line interactive |
| Rated Capacity | 410 Watts / 750VA |
| Nominal Input Voltage | 230V |
| Nominal Output Voltage | 230V |
| Input Frequency | 50/60 Hz +/- 1 Hz Sync to mains |
| Backup Time | Full load runtime : 00:01:00 390 W
Half load runtime : 00:08:30 195 W |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Display | None |

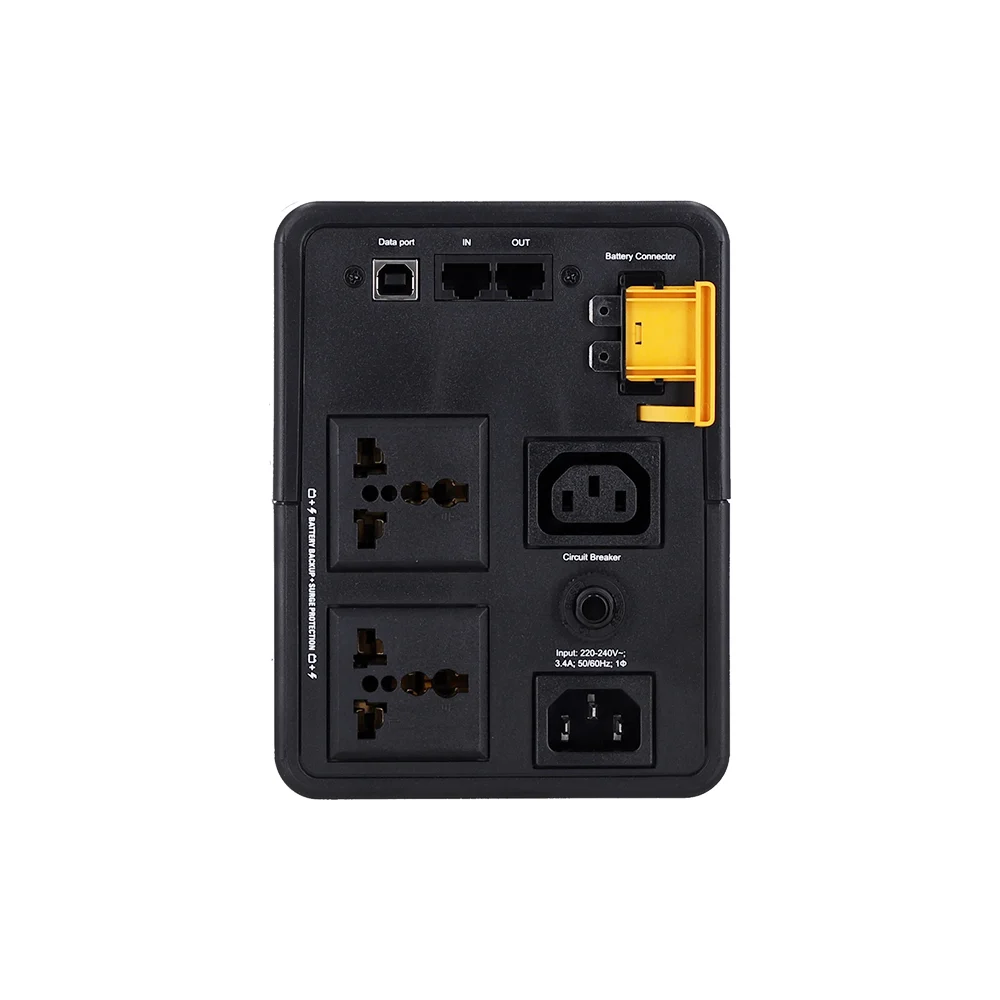

| Input Connections | IEC 60320 C14 |
| Output Connections | 2 x Universal (Battery Backup)
1 x IEC 320 C13 (Battery Backup) |
| Interface Port | RJ45 10/100/1000 Base-T Ethernet protection |
| Indicator & Audible Alam/ Protection | LED Status display with on line : on battery |
| Battery Type | Lead-acid battery |
| Waveform Type | Stepped approximation to a sinewave |
| Typical recharge time | 8 hour(s) |
| Battery Replacement | 1 x 12V, 9AH (RBC17) |
| Features | N/A |
| Environment | Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3000meters
Storage Temperature : -15 - 40 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 3000meters
Audible noise at 1 meter from surface of unit : 40.0dBA
Protection Class : IP20 |
| Package Contents | 1 x USB communication cable (1.2m)
1 x User manual |
| Dimension | (W x D x H) : 12.00 x 35.50 x 16.00 cm |
| Net Weight | 5.40 KG |
| Package Dimension | (W x D x H) : 19.70 x 43.00 x 25.00 cm |
| Gross Weight | 5.90 KG |
| Volume | 21,177.50 cm3 |
