| PERFORMANCE |
| Processor | Intel® Core i3-1315U, 6C (2P + 4E) / 8T, P-core 1.2 / 4.5GHz, E-core 0.9 / 3.3GHz, 10MB |
| Graphics | Integrated Intel® UHD Graphics |
| Chipset | Intel® SoC Platform |
| Memory | 1x 8GB SO-DIMM DDR5-5200 |
| Memory Slots | Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory
| Up to 32GB DDR5-5200 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Max Storage Support
| One drive, up to 1TB M.2 2280 SSD |
| Card Reader | No card reader |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC233-CG codec |
| Speakers | 3Wx2 |
| Camera | 5.0MP |
| Microphone | 2x, Array |
| Power Supply | 90W 89% Adapter |
| DESIGN |
| Display
| 23.8" FHD (1920x1080) IPS Anti-glare 250nits, 99% sRGB |
| Touchscreen | None |
| Keyboard | USB Calliope Keyboard, Black, Thai |
| Mouse | USB Calliope Mouse, Black |
| Expansion Slots | Two M.2 slots (one for WLAN, one for SSD) |
| Case Color | Luna Grey |
| Stand | Monitor Stand |
| Mounting | None |
| Wireless Charger | None |
| Form Factor | AIO (23.8 inches) |
| Dimensions (WxDxH)
| 540 x 192 x 431 mm (21.25 x 7.56 x 16.97 inches) |
| Weight
| Around 6.0 kg (13.23 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth | Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2 |
| WWAN | Non-WWAN |
| Ethernet | Integrated 100/1000M |

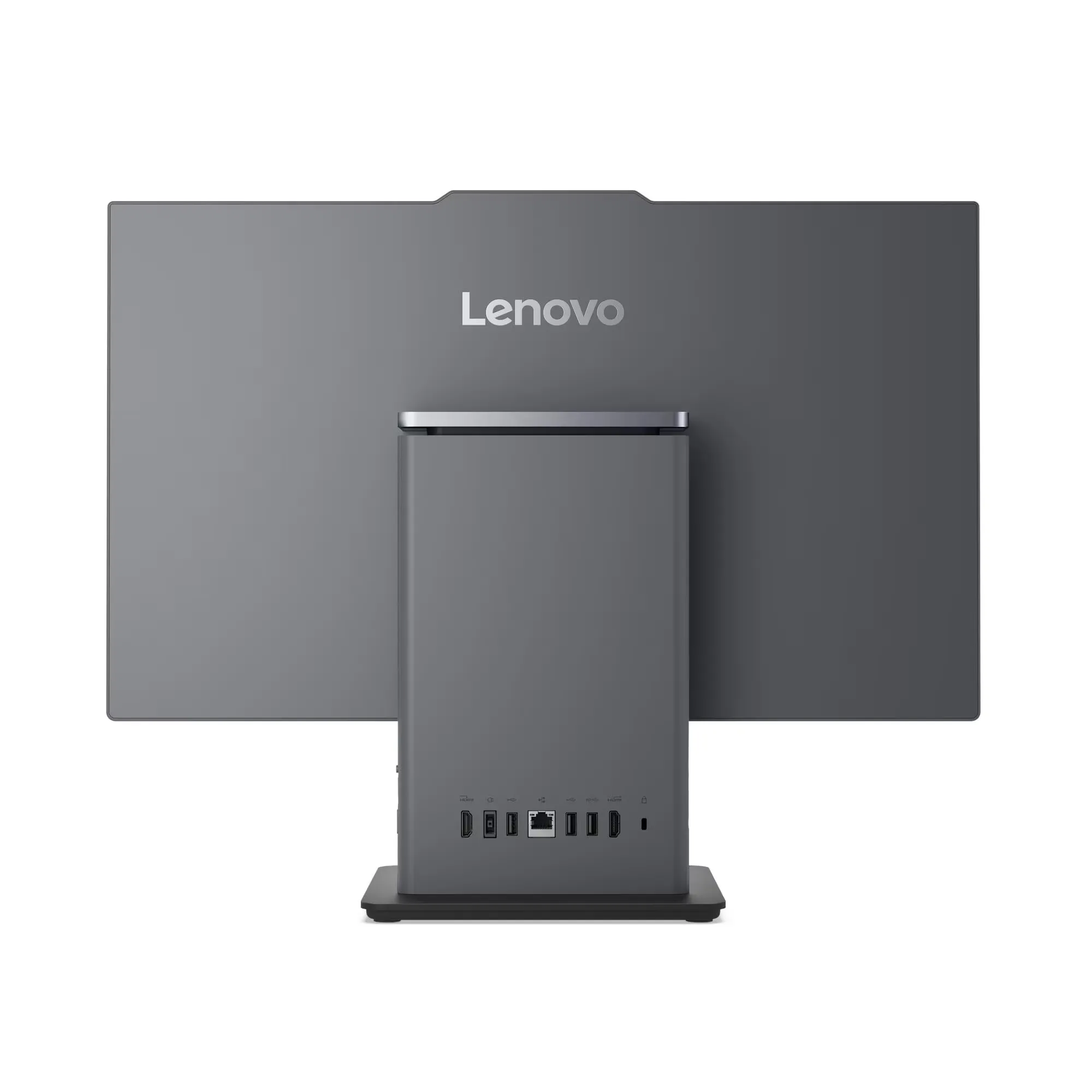

| Rear Ports | - 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 1x HDMI®-in 1.4
- 1x HDMI®-out 2.1 TMDS
- 1x Ethernet (RJ-45)
- 1x power connector
|
| Left Ports | - 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
- 1x headphone / microphone combo jack (3.5mm)
|
| SECURITY & PRIVACY |
| Security Chip | Firmware TPM 2.0 integrated in SoC |
| Physical Locks | Optional Kensington® Security Slot™, 3 x 7 mm
|
| Chassis Intrusion Switch | No chassis intrusion switch |
| MANAGEABILITY |
| System Management | None |
| SERVICE |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 3Y Onsite upgrade from 1Y Courier/Carry-in |
| CERTIFICATIONS |
| Green Certifications | - ErP Lot 3/7
- GREENGUARD®
- RoHS / WEEE / REACH
|
| Other Certifications | - TÜV Rheinland® Flicker Free
- TÜV Rheinland® Low Blue Light
- TÜV Rheinland® Ultra Low Noise
|
| SOFTWARE |
| Operating System | Windows® 11 Home Single Language, English |
| Bundled Software | None |
| MODEL INFORMATION |
| Model | 12SC0056TH |
| Machine Type | 12SC |
| Region | ASEAN |
| Country/Region | Thailand |
| TopSeller | Yes |
| EAN / UPC / JAN | 198157041967 |
| Announce Date | 2025-01-26 |
| End of Support | 2031-03-30 |
