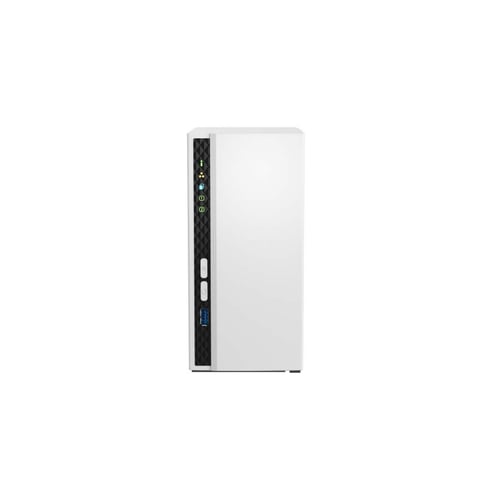

Qnap TS-233 2-Bay Nas อุปกรณ์จัดเก็บข้อมูลบนเครือข่าย

-16%

Hardware Specs TS-233

CPU

• ARM 4-core Cortex-A55 2.0GHz processor

CPU

• Architecture 64-bit ARM

Floating

• Point Unit Yes

Encryption Engine

• Yes

System Memory

• 2 GB, not expandable

Maximum Memory

• 2 GB, not expandable

Flash Memory

• 4 GB (Dual boot OS protection)

Drive Bay

• 2 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

Hot-swappable

• Yes

Gigabit Ethernet Port(RJ45)

• 1

Wake on LAN (WOL)

• Yes

Jumbo Frame

• Yes

USB 2.0 port

• 2

USB 3.2 Gen 1 port

• 1

Form Factor

• Tower

LED Indicators

• System Status, LAN, USB, HDD1~2

Buttons

• Power, Reset, USB Copy

Dimensions (HxWxD)

• 188.64 × 90.18 × 156.26 mm

Weight (Net)

• 1.11 kg

Weight (Gross)

• 1.95 kg

Operating temperature

• 0 - 40 °C (32°F - 104°F)

Storage Temperature

• -20 - 70°C (-4°F - 158°F)

Relative Humidity

• 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

• 65W Adapter, AC 100-240V

Power Consumption: HDD Sleep Mode

• 3.43 W

Power Consumption: Operating Mode, Typical

• 10.81 W

Fan

• 1 x 80mm, 12VDC

System Warning

• Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

• 200
