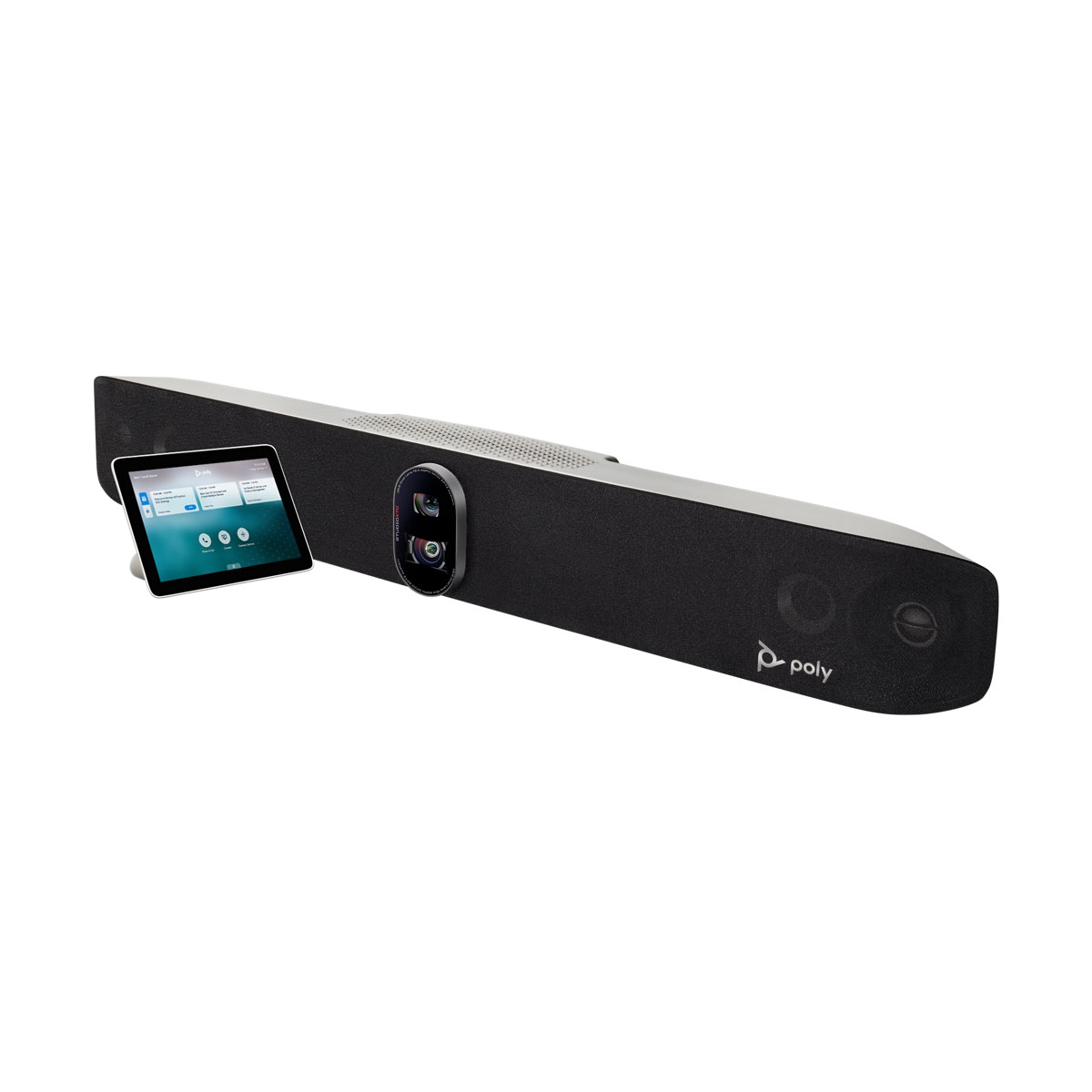

Poly Studio X70 - Large Room Video Conferencing System คอนเฟอเรนซ์แบบ All-in-One สำหรับห้องประชุมขนาดใหญ่

-5%

SPECIFICATIONS

PACKAGE INCLUDES

• Poly Studio X70
• Power Supply
• 2x HDMI cable
• Ethernet Cable
• Wall mount

VIDEO STANDARDS AND PROTOCOLS

• H.264 AVC, H.264 High Profile, H.265

VIDEO INPUT

• 1x HDMI

VIDEO OUT

• 2x HDMI
• Touch display compatible

PEOPLE VIDEO RESOLUTION

4K, 30 fps (TX and RX) from 2048 Kbps

1080p, 30 fps from 1024 Kbps

720p, 30 fps from 512 Kbps

CONTENT VIDEO RESOLUTION

• Input
  • UHD (3840 x 2160)
  • FHD (1920 x 1080p)
  • WSXGA+ (1680 x 1050)
  • UXGA (1600 x 1200)
  • SXGA (1280 x 1024)
  • WXGA (1280 x 768)
  • HD (1280 x 720p)
  • XGA (1024 x 768)
  • SVGA (800 x 600)
• Output
  • UHD (3840 x 2160)
  • WUXGA (1920 x 1200)
  • HD (1920 x 1080)
  • WSXGA+ (1680 x 1050)
  • SXGA+ (1400 x 1050)
  • SXGA (1280 x 1024)
  • HD (1280 x 720)
  • XGA (1024 x 768)
• Content frame rate 5–60 fps (up to 4K resolution at 15 fps in call)

ROOM ANALYTICS

• Room participant counting detection
• Air quality sensor*
  • CO2 and Volatile Organic Compounds (VOC)

CONTENT SHARING

• Poly content app
• Apple Airplay
• Miracast
• HDMI input
• Whiteboarding

CAMERA

• 2 lenses
  • 120-degree HFOV, 70-degree HFOV
  • 140-degree DFOV, 78-degree DFOV
• 2x 20 Megapixel sensors
• 7.3x digital zoom
• UHD 2160p (4K) capture resolution
• Additional cameras can be added via USB
• Automatic meeting experience powered by Poly DirectorAI including group framing, people framing (preview features), and speaker framing

AUDIO INPUT

• 1x 3.5 mm

MICROPHONES

• 2x MEMS microphones, plus 2x 2nd order microphones
• Microphone pickup range up to 25 ft
• Optional expansion microphone available (p/n 2200-69631-001)

AUDIO OUTPUT

• 1x 3.5mm
• Two-way Stereo Speakers
• Mid speakers
  • Power Handling (RMS) 20 Watts
  • Power Handling (MAX) 30 Watts
  • Sensitivity 83 dB
• Tweeter speakers
  • Power Handling (RMS) 15 Watts
  • Power Handling (MAX) 20 Watts
  • Sensitivity 89 dB
• Custom Tuned Bass Ports for rich sound
• 1x HDMI

OTHER INTERFACES

• 2x USB-A (3.0)*
  • *Used for connected peripherals
• 1x USB-C*
  • *Used for connected PC
• Bluetooth® 5.0
  • *TAA, JITC and no radio versions available
• 2x RJ45*
  • *Designated for future use
• WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
  • *TAA, JITC and no radio versions available

AUDIO STANDARDS AND PROTOCOLS

• 22 kHz bandwidth with Polycom Siren 22 technology
• 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology
• 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A

NETWORK

• IPv4
• IPv6
• 2x 10/100/1G Ethernet (RJ45)
• Auto-MDIX
• H.323 and/or SIP up to 6 Mbps running Poly Video App
• Polycom Lost Packet Recovery (LPR) technology
• Dynamic bandwidth allocation
• Reconfigurable MTU size
• Web proxy support
  • Basic
  • Digest
  • NTLM

SECURITY

• Media encryption (H.323, SIP)
  • AES-128
  • AES-256
• H.235.6 support
• Authenticated access to admin menus, web interface, and API
• Local account password policy configuration
• Security profiles
• Local account and login port lockout
• Secure defaults
• Remote logging with support for TLS
• Active directory external authentication
• Electronic privacy shutter

OPTIONS

• VESA mount kit
• Stand
• Poly TC8
• Poly Bluetooth remote control
• Poly Trio
• Studio Expansion Microphone
• TAA, JITC and no radio versions available

INTEROPERABILITY

• All cloud service providers through Poly Video App Mode
• Support for native 3rd party applications includes:
• Zoom
• Microsoft Teams
• GoToRoom
• RingCentral
• StarLeaf
• DialPad

DIGITAL SIGNAGE

• Raydiant
• Appspace

ELECTRICAL

• Auto sensing power supply
• Typical operating voltage/power
  • 37 VA @ 120 V @ 60 Hz
  • 37 VA @ 230 V @ 50/60 Hz
• Typical BTU/h
  • 65

ENVIRONMENTAL SPECIFICATION

• Operating temperature
  • - 0 to 40 °C
• Operating humidity (non-condensing)
  • 15 to 80%
• Non-operating temperature
  • -40 to 70 °C
• Non-operating humidity (non-condensing)
  • 5 to 95%
• Maximum altitude
  • 16,000 ft

PHYSICAL CHARACTERISTICS

• 840.18 mm / 33.1 in (W) x 135.38 mm / 5.3 in (H) x 117.33 mm /4.6 in (D)
• 7.05 lbs/3.2 kg

MANAGEABILITY

• Cloud: Poly Lens service

WARRANTY

• One-year return to factory parts and labor
