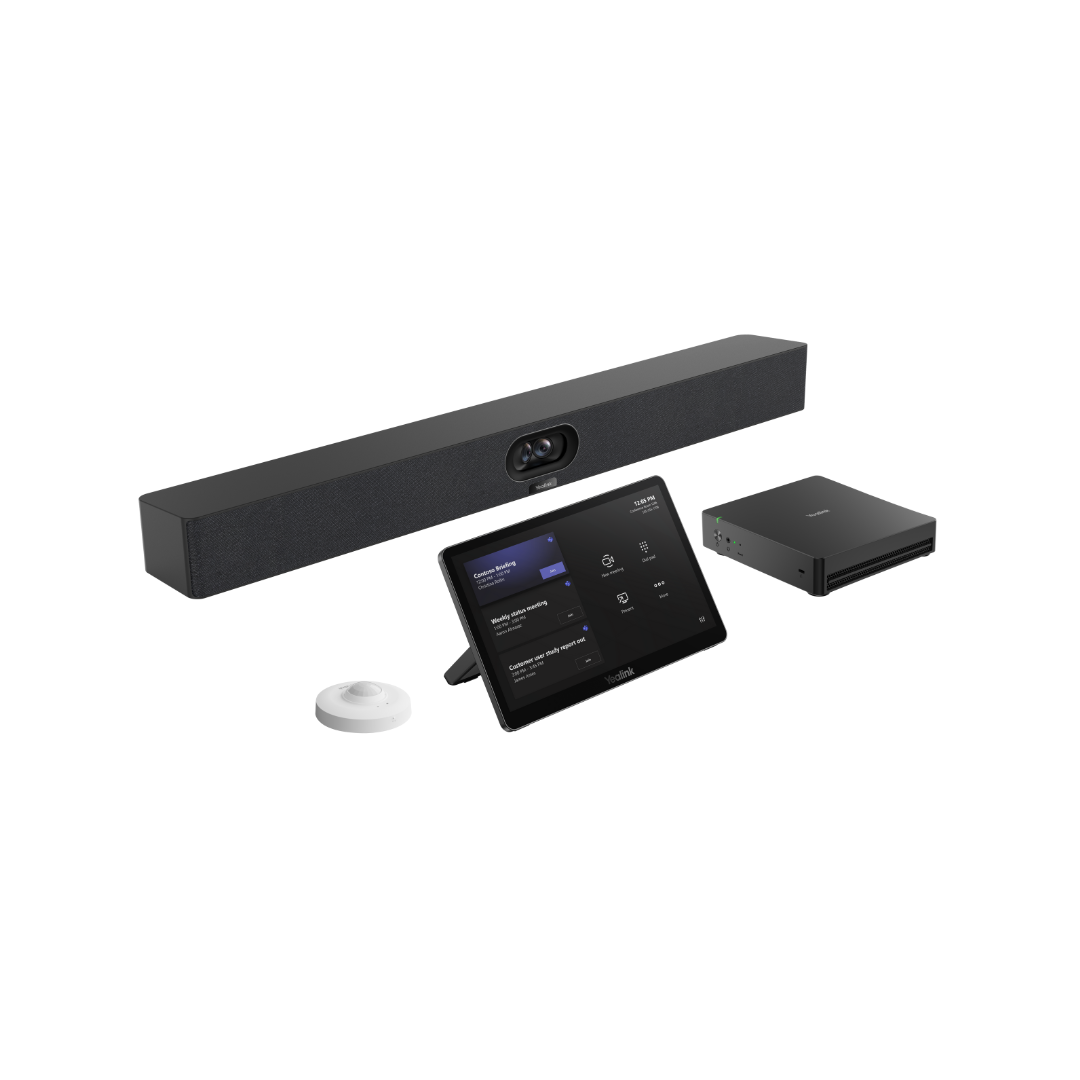

Package Content
- MCore 4
- MTouch Plus
- RoomSensor
- SmartVision 80 x 3
- AVHub
- RCH40 E2
- BYOD-Extender
Preload
- Windows 11 IoT Enterprise X64
- Windows 11 IoT Enterprise License
- Microsoft Teams Rooms App
- Yealink RoomConnect
MCore 4, Gen-4 Mini-PC
- Processor: Intel Ultra5 125H
- Memory: 16GB(2*8GB) DDR5
- Storage: 256GB SSD
BIOS feature:
- 3x HDMI video output
- CEC
- EDID
- TPM2.0
- Kernel DMA
Interfaces:
- 1 x HDMI-Out 2.1 port
- 2 x HDMI-Out 2.0 port
- 1 x HDMI-In port
- 4 x USB3.0 Type-A Port
- 1 x MTouch Port (RJ-45)
- 1 x LAN port for AV network
- 1 x 10/100/1000 Gigabit Ethernet Port
- 1 x Power Supply Port
- 1 x 3.5mm headphone Port
- 1 x Reset port
- 1 x Security Slot
- WiFi: IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth: BT 5.2
MTouch Plus
- Physical Features:
- 11.6-inch narrow bezel IPS display
- Angle between screen and desktop (30° ~ 70°)
- Adjustable angle of support frame (50° ~ 180°)
- Function Features:
- 1920 x 1080 video resolution
- Support wired and wireless (with WPP30) content sharing
- Support external PD power supply to power the sharing device
- Support HDMI/USB-C video input
- Support desktop placement, desktop fixed, wall-mounted deployment
RoomSensor
- Detection angle: 120°
- Adjustable detection angle: ±20°
- Operating temperature: 0-40?
- Operating humidity: 10-95%
SmartVision 80
Camera:
- PTZ Camera: 20×optical zoom
- 69° DFOV, 61.5° HFOV, 36° VFOV(PTZ Camera)
- 110° DFOV, 98° HFOV, 82° VFOV(Panoramic Camera)
- 51° DFOV, 41.6° HFOV, 32° VFOV(Telephoto Camera)
AI Feature:
- IntelliFrame
- Participant Identification
- IntelliFocus
- Speaker Tracking
- Presenter Tracking
- Video Fence
- PIP
- Auto Framing
Interfaces:
- 1×USB 3.0 Type-B port
- 1×USB 2.0 Type-A port
- 2×VCH port(RJ45)
- 1×Network Port (RJ45)
- 1×HDMI out port
- 1×Line in port
- 1×Line out port
- 1×Reset Button
- 1×DC Power Port
AVHub,audio and video processor
- Interfaces
- 2 x USB-A port
- 1 x USB-B port
- 1 x Codec port
- 7 x Yealink VCH port(RJ-45)
- 1 x RCA in/out interface
- 1 x 6.3mm Line in interface
- 1 x 6.3mm Line out interface
- 1 x power interface
Function Features:
- Dividable and merging meeting rooms are supported
- Support intelligent multi-speaker tracking
RCH40 E2
Interface&LED:
- 4 x 10/100/1000Mbps Port
- 1 x LED indicates Power state
- 1 x LED indicates PoE Budget
Physical Feature:
- Multiple deployment method
- 90w total PoE Budget(30w per port)
- Support standard PoE Supply(802.3af)
- Power adapter: PSE 48V 2A
- Dimension(WDH):100mm x 100mm x 23mm
- Operating Humidity: 5%-90%
BYOD-Extender
Interfaces:
- 1.5m USB2.0 Type-A cable
- 1 x VCH port (RJ45)
Physical Feature:
- Operating humidity: 10~95%
- Operating temperature: 0~40?
- Dimension:89mm x 48mm x 17mm
