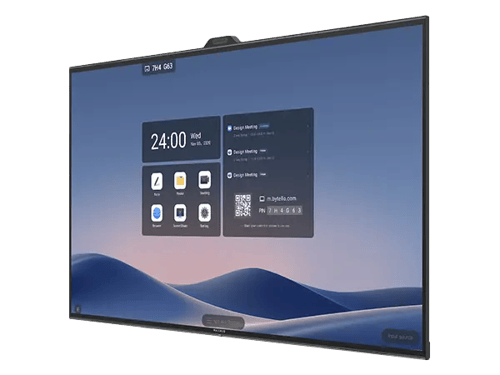

MAXHUBXBoard V7 MXH-V755T (75") + Mobile Stand + Wireless Screenshare

Model: V7550

Display

• Screen Size (Inch): 75

• Aspect Ratio: 16:9

• Panel: VA

• Backlight: DLED

• Brightness (Typ.): 350 nits

• Glass: Zero parallax, 3mm thickness, 9H tempered

• Surface Technology: 25% haze, Non-glare technology

• Resolution: 3840 × 2160

• Refresh Rate: 60 Hz

• Contrast Ratio: 5000:1 (typ.)

• Viewing Angle (H × V): 178° / 178°

• Color Gamut: 90% NTSC

• Display Orientation: Landscape

• Response Time: 6.5 ms

• Life Time: ＞50,000 hours

• Operation Hours (Hours / Day): 16 / 7

• Display Color: 1.07B (10 bit)

• Color Accuracy: Delta E ≤ 1.5

• Sensor: Ambient light sensor, Ultrasonic detection sensor

Touch System

• Touch Technology: Intelligent Touchscreen Technology (infrared recognition)

• Touch Point: 50 points touch

• Object Recognition Range: ≥1.5 mm

• Accuracy: ±0.5 mm

• Response Time: ≤2.5 ms

• Writing Height: ≤1 mm

• System (Touch Return): Windows11 / Windows10 / Windows8 / Windows7 / Android / Linux / Mac OS X / Chrome OS

• Feature: Windows Ink / Direct Annotation / Palm Rejection / Sharp Erase / Multi-input Recognition / Handwriting Recognition

Connectivity

• HDMI IN: × 2

• USB 2.0: × 1

• USB 3.0: × 2

• USB Type-C: × 1

• TOUCH 2.0: × 1

• AUDIO IN: × 1

• AUDIO OUT: × 1

• RS232: × 1

• RJ45 IN: × 1

• PC Module Slot: Module slot × 1

• Wi-Fi Slot: Module slot × 1

• Wi-Fi: Wi-Fi 6 supported (802.11ax, 2.4GHz/5GHz)

• Bluetooth: 5.2

Camera

• Quantity: 3

• Resolution: 50 MP + 50 MP + 50 MP (Panorama + Telephoto + Telephoto)

• Zoom: 2x optical zoom, 5x digital zoom

• Field of View: 99° (Diagonal), 86° (Horizontal), 69° (Vertical)

• Position: Built-in ejection

• Feature: Personalized presets, Auto framing, Speaker tracking, Multiple-speaker tracking, Intelligent focus

Audio

• Sound Channel: 2.1

• Speaker Power: 2×10W + 20W

• Microphone: 16-mic array

• Pick-up Angle: 180°

• Pick-up Range: 0~15m

• Feature: Intelligent audio fence, AI spatial sound, AEC (Auto echo cancellation), ANC (AI noise cancellation), AGC (Auto gain control)

Feature

• System OS: MAXHUB OS 7.0 powered by Windows

• Screen Share: MAXHUB Share (Support BYOM / Miracast / Airplay / Chromecast / P2P)

• Device Management: MAXHUB Pivot

• Protocol Control: RS232 / IP control (Supports integration with Crestron / Extron / Q-sys)

• Special Features: Microsoft Intune

Certification

• Safety: IEC 62368-1

• EMC: Class B

• Environment: Energy Star

• IP Rating: IP5X design standards
