| PERFORMANCE |
| Processor | Intel Core i9-14900HX, 24C (8P + 16E) / 32T, P-core 2.2 / 5.8GHz, E-core 1.6 / 4.1GHz, 36MB |
| AI PC Category | AI-Powered Gaming PC |
| Graphics | NVIDIA GeForce RTX 4060 8GB GDDR6, Boost Clock 2370MHz, TGP 140W, 233 AI TOPS |
| Chipset | Intel HM770 Chipset |
| Memory | 2x 16GB SO-DIMM DDR5-5600 |
| Memory Slots | Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory | Up to 32GB DDR5-5600 offering |
| Storage | 1TB SSD M.2 2280 PCIe 4.0x4 NVMe |
| Storage Support | Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB |
| Storage Slot | Two M.2 2280 PCIe 4.0 x4 slots |
| Card Reader | None |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC3287 codec |
| Speakers | Stereo speakers, 2W x2, optimized with Nahimic Audio |
| Camera | FHD 1080p with Privacy Shutter |
| Microphone | 2x, Array |
| Battery | Integrated 80Wh |
| Power Adapter | 300W Slim Tip (3-pin) |
| Special Features | AI Chip: LA1 |
| DESIGN |
| Display
| 16" WQXGA (2560x1600) IPS 500nits Anti-glare, 100% DCI-P3, 240Hz, DisplayHDR 400, Dolby Vision, G-SYNC, Low Blue Light, High Gaming Performance |
| Touchscreen | None |
| Color Calibration | Factory Color Calibration |
| Keyboard | 4-Zone RGB Backlit, Thai |
| Touchpad | Buttonless Mylar surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches) |

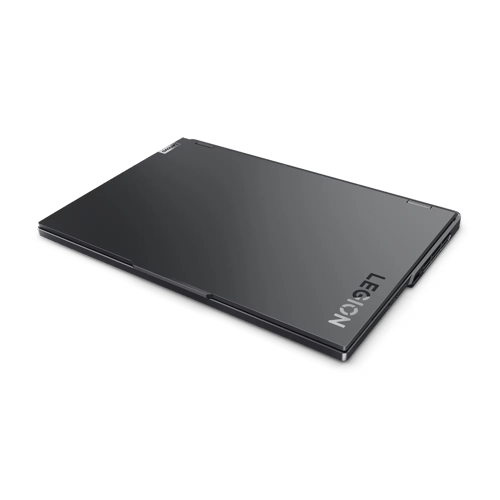

| Case Color | Onyx Grey |
| Surface Treatment | Anodizing |
| Case Material | Aluminium (Top), PC-ABS (Bottom) |
| Pen | Pen Not Supported |
| Dimensions (WxDxH) | 363.4 x 261.75 x 21.99-26.95 mm (14.31 x 10.31 x 0.87-1.06 inches) |
| Weight | Around 2.5 kg (5.5 lbs) |
| SOFTWARE |
| Operating System | Windows 11 Home Single Language, English |
| Bundled Software | Office Trial |
| CONNECTIVITY |
| Ethernet | 100/1000M (RJ-45) |
| WLAN + Bluetooth | Wi-Fi 6E, 802.11ax 2x2 + BT5.2 |
| WWAN | Non-WWAN |

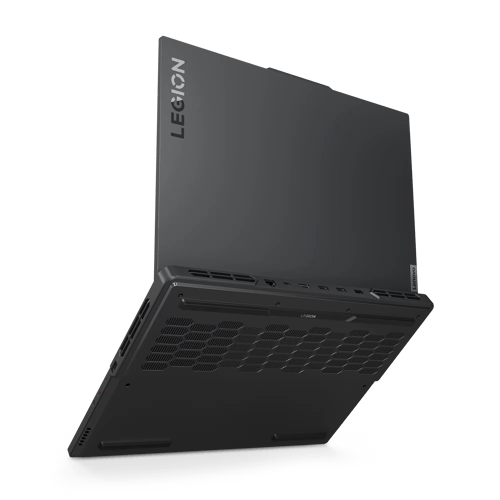

| Standard Ports | - 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with Lenovo PD 140W and DisplayPort 1.4
- 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort 1.4
- 1x HDMI 2.1, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- 1x Power connector
|
| Docking | Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for Legion Pro 5 16IRX9 |
| SECURITY & PRIVACY |
| Security Chip | Firmware TPM 2.0 Enabled |
| Fingerprint Reader | None |
| Other Security | E-shutter |
| SERVICE |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 4Y Legion Ultimate Support -IPMAIN (ESS) |
| ACCESSORIES |
| Bundled Accessories | None |
| CERTIFICATIONS |
| Green Certifications | |
| Other Certifications | - TÜV Rheinland High Gaming Performance
- TÜV Rheinland Low Blue Light (Hardware Solution)
|
| MODEL INFORMATION |
| Model | 83DF00FUTA |
| Country/Region | Thailand |
| TopSeller | Yes |
| EAN / UPC / JAN | 198154524562 |
| Announce Date | 2024-06-10 |
| End of Support | 2029-11-23 |
