| PERFORMANCE |
| Processor | Intel® Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB |
| Graphics | Integrated Intel® UHD Graphics 730 |
| Chipset | Intel® B760 Chipset |
| Memory
| 1x 8GB UDIMM DDR5-4800 |
| Memory Slots | Two DDR5 UDIMM slots, dual-channel capable |
| Max Memory
| Up to 32GB DDR5-5600 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® |
| Optane Memory | None |
| Max Storage Support
| Up to two drives, 1x 3.5" HDD + 1x M.2 SSD • 3.5" HDD up to 1TB • M.2 SSD up to 1TB |
| Card Reader | None |
| Optical | None |
| Audio Chip | - High Definition (HD) Audio, Realtek® ALC623-CG codec
- 24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 16/20/24-bit PCM format for independent two stereo channel or 2.1 audio playback
- 24-bit ADC supports 44.1K/48K/96K sample rate, 2 channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs
|
| Speakers | No speakers |
| Power Supply | 310W 92% |
| DESIGN |
| Keyboard | USB Calliope Keyboard, Black, Thai |
| Mouse | USB Calliope Mouse, Black |
| Expansion Slots | - One PCIe® 4.0 x16, full height
- One PCIe® 3.0 x1, full height
- Two M.2 slots (one for WLAN, one for SSD)
|
| Case Color | Cloud Grey |
| System Fan | 1x Rear |
| Form Factor | Tower (13.6L) |
| Dimensions (WxDxH) | 145 x 287.9 x 340 mm (5.71 x 11.33 x 13.39 inches) |
| Weight
| Around 4.9 kg (10.8 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth | Wi-Fi® 6, 802.11ax 2x2 + BT5.2 |
| WWAN | Non-WWAN |
| Ethernet | Integrated 100/1000M |

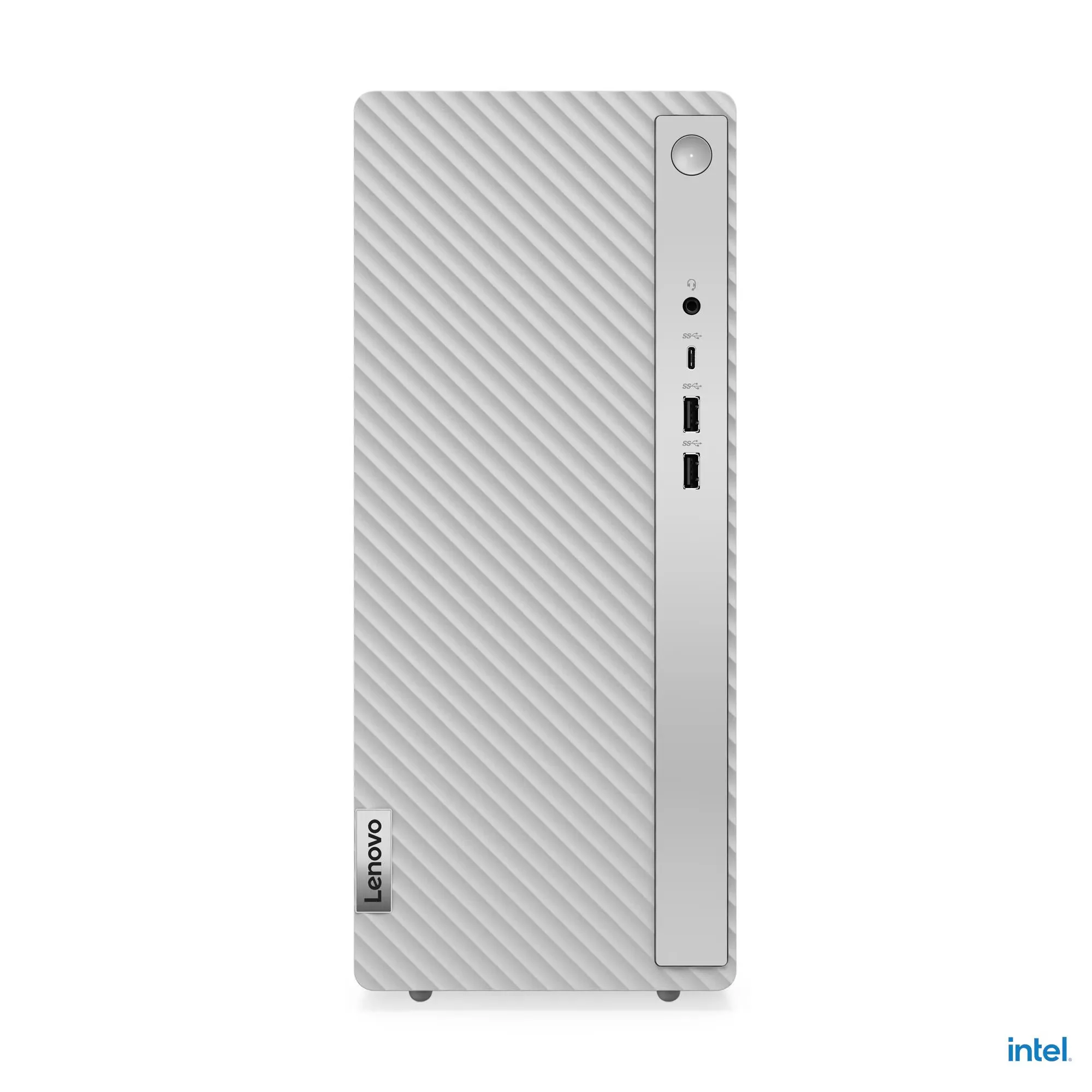

| Front Ports | - 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x headphone / microphone combo jack (3.5mm)
|

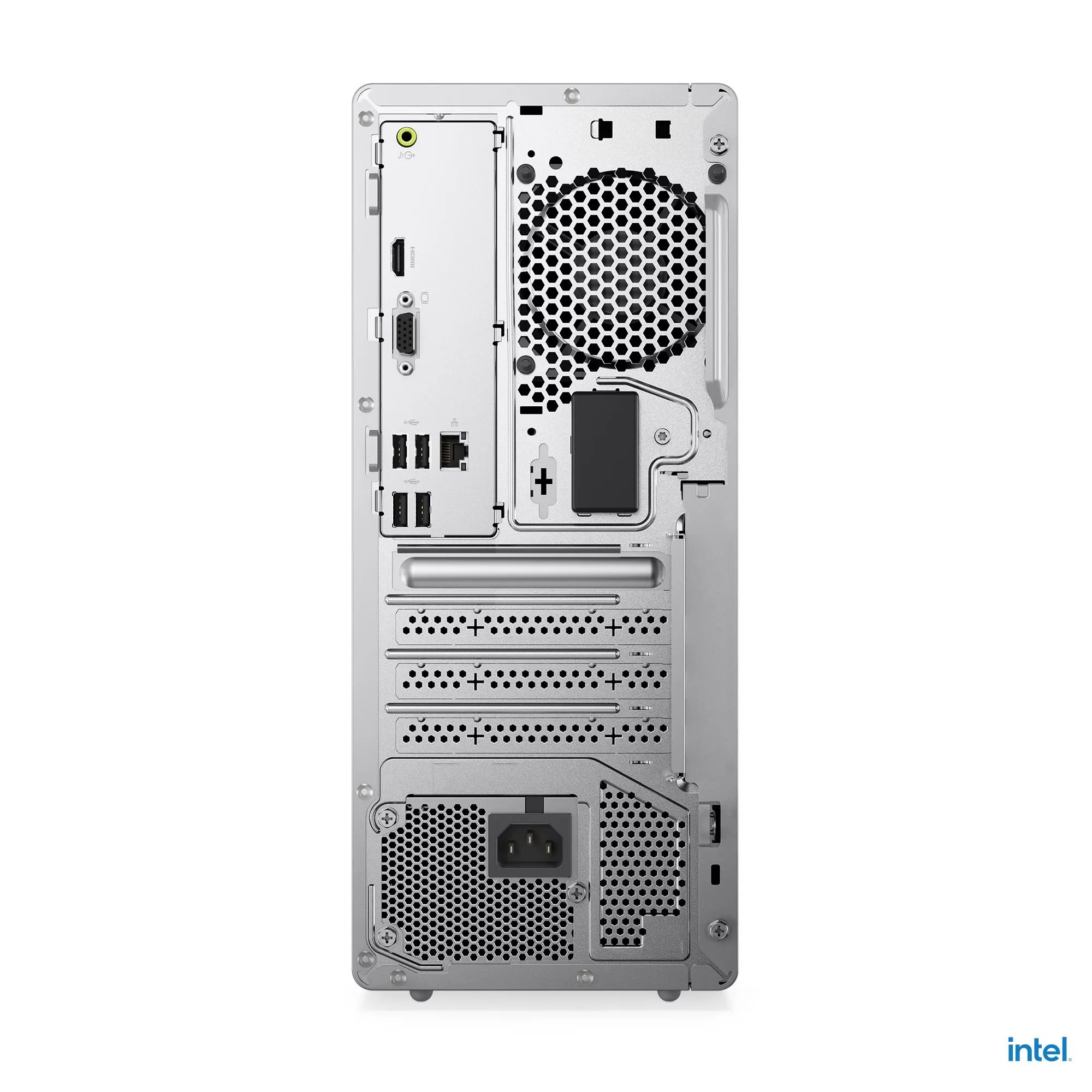

| Rear Ports
| - 4x USB-A (Hi-Speed USB / USB 2.0)
- 1x HDMI® 2.1 TMDS
- 1x VGA
- 1x Ethernet (RJ-45)
- 1x headphone (3.5mm)
- 1x power connector
|
| SECURITY & PRIVACY |
| Security Chip | Firmware TPM 2.0 integrated in processor |
| SERVICE |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 3Y Premium Care - Idea DT (ESS) |
| CERTIFICATIONS |
| Green Certifications | - ErP Lot 3
- RoHS compliant
- None
|
| SOFTWARE |
| Operating System | Windows® 11 Home Single Language, English |
| Bundled Software | None |
| MODEL INFORMATION |
| Model | 90X20036TA |
| Machine Type | 90X2 |
| Region | ASEAN |
| Country/Region | Thailand |
| TopSeller | Yes |
| EAN / UPC / JAN | 198154542023 |
| Announce Date | 2024-12-31 |
| End of Support | 2030-04-15 |
