| PERFORMANCE |
| Processor | Intel® Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB |
| Graphics
| Integrated Intel® UHD Graphics 730 |
| Chipset | Intel® B760 Chipset |
| Memory | 1x 16GB UDIMM DDR5-4800 |
| Memory Slots | Two DDR5 UDIMM slots, dual-channel capable |
| Max Memory
| Up to 64GB DDR5-5600 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Max Storage Support
| Up to three drives, 1x 3.5"HDD + 1x 2.5"HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB • 2.5" HDD bay is only for customer self upgrade
|
| Card Reader | 3-in-1 Card Reader |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC623-CG codec |
| Speakers | 2Wx1 |
| Power Supply | 260W 90%
|
| DESIGN |
| Keyboard | USB Calliope Keyboard, Black, Thai |
| Mouse | USB Calliope Mouse, Black |
| Optional Bay | None |
| Expansion Slots | - One PCIe® 3.0 x16, full-height, length ≤ 233.6mm, height ≤ 117.5mm
- One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm)
- Two M.2 slots (one for WLAN, one for SSD)
|
| Case Color | Black |
| System Fan | None |
| Toolless Chassis Screw | Toolless Chassis Screw |
| Pen | Pen Not Supported |
| Form Factor | Tower (13.6L) |
| Dimensions (WxDxH)
| 145 x 294 x 340 mm (5.71x 11.57 x 13.39 inches) |
| Weight
| Around 5.6 kg (12.35 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth | Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2 |
| WWAN | Non-WWAN |
| Ethernet | RTL8111K, 1x RJ-45 |
| Front Ports | - 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with data transfer and 15W charging
- 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
|

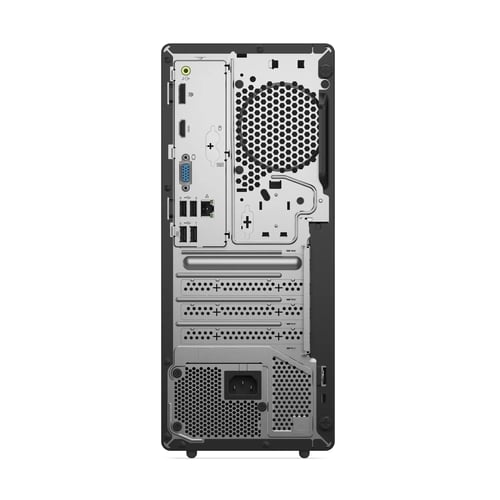

| Rear Ports
| - 4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4a (HBR2)
- 1x VGA
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
|
| Optional Rear Ports (configured) | |
| SECURITY & PRIVACY |
| Security Chip | Discrete TPM 2.0, TCG certified |
| Physical Locks | - Smart Cable Clip
- Kensington® Security Slot™
- Padlock Loop
|
| Smart Cable Clip | Smart Cable Clip |
| Chassis Intrusion Switch | None |
| MANAGEABILITY |
| System Management
| None |
| SERVICE |
| Base Warranty | 1-year, Onsite |
| Included Upgrade | 3Y Onsite upgrade from 1Y Onsite |
| CERTIFICATIONS |
| Green Certifications | - RoHS / WEEE / REACH
- TCO Certified 9.0
|
| Other Certifications | - |
| SOFTWARE |
| Operating System | None |
| Bundled Software | None |
| ACCESSORIES |
| Bundled Accessories | None |
| MODEL INFORMATION |
| Model | 12UB003YTA |
| Machine Type | 12UB |
| Region | ASEAN |
| Country/Region | Thailand |
| TopSeller | Yes |
| EAN / UPC / JAN | 199272198369 |
| Announce Date | 2025-07-14 |
| End of Support | 2031-02-15 |
