Built-in System |
Operating System |
Android 14 |
CPU |
Quad-core A55 |
CPU Frequency |
1.9 GHz |
GPU |
ARM Mali-G52 MP2 (2EE) |
RAM |
8 GB |
ROM |
32 GB |
LCD Panel |
Panel Dimensions |
86 inch |
Backlight |
DLED |
Aspect Ratio |
16:9 |
Brightness |
400 cd/m² (typ.) |
Static Contrast |
VA: 4000; IPS: 1200 |
Resolution |
3840 (H) × 2160 (V) |
Viewing Angle |
178° (H); 178° (V) |
Lifespan |
50,000 hrs |
Display Color |
1.07 Billion colors (10 Bit) |
Response Time |
8 ms (typ.) |
Refresh Rate |
60 Hz |
Device Ports |
Light Sensor |
Yes |
Front Button |
8 buttons: Whiteboard, volume, curtain, touch lock, signal source, navigation bar, homepage, power supply |
Front Ports |
1 × Type -C 1 × HDMI IN 1 × USB Touch 2 × USB 3.2 Gen1 Type-A 1 × 3.5 mm Mic in 1 × Type-C (DP IN (4K@60 fps) + USB 3.0 Host+USB 2.0 device (touch) + PD 65 W); supports wired network sharing |
Rear Port |
1 × Type -C 2 × HDMI IN (4K@60 Hz) 1 × VGA IN 1 × HDMI OUT (4K@60 Hz) 3 × USB Touch 2 × USB3.2 Gen1 Type-A Audio In: 1 × 3.5 mm Line In Audio Out: 1 × SPDIF and 1 × 3.5 mm Line out RS-232: 1 × DB9 port Micro: 1 × USB 2 × RJ-45 1 × OPS slot |
Wi-Fi |
Yes |
Wi-Fi Standard |
802.11b/g/n/a/ac/ax |
Wi-Fi Frequency Range |
2.4 GHz/5 GHz |
MAX Power Transmission (Wi-Fi) |
CE EIRP: ≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz; ≤20 dBm@5250–5350 MHz; ≤27 dBm@5470–5725 MHz; ≤14 dBm@5725–5850 MHz |
Bluetooth |
Yes |
Bluetooth Standard |
EDR, BT2.1/4.2/5.2/5.3 |
Bluetooth Frequency Range |
2400–2483.5 MHz |
MAX Power Transmission (Bluetooth) |
CE EIRP: ≤20 dBm@2400–2483.5 MHz; |
RFID Modulation Method |
ASK |
RFID Frequency Range |
13.56 MHz |
MAX Power Transmission (RFID) |
42 dBuA/m @10 m |
Function |
IR Receiver |
1 |
Card Swiping with NFC |
Yes |
Wireless Access Point |
Wi-Fi 6, 2.4 GHz/5 GHz, supports 802.11 a/b/g/n/ac/ax₩WIFI 5, 2.4 GHz/5 GHz; Supports enabling Hotsport and WIFi at the same time |
Touchscreen |
Response Time |
＜10 ms |
Touch Technology |
Infrared |
Attachment Method |
Zero Air Gap |
Touch Points |
21 points for Android, and 40 points for Windows |
Touch Accuracy |
±1 mm (0.04") |
Valid Touch |
2 mm (0.08") |
Touch Height |
3 mm (0.12") |
Writing Mode |
Finger and stylus pen |
Communication Mode |
USB |
Anti-light Interference |
Anti-dazzle |
Surface Hardness |
≥9 H |
Touch Resolution |
32,767 × 32,767 |
Speaker |
Built-in Speaker |
2 × full-frequency speaker |
Power |
2.0 sound channel, front-end: 2 × 15 W₩2.0 sound channel, front-end: 2 × 20 W |
General |
Power Supply |
100–240 VAC, 50/60 Hz |
Power Consumption |
86- inch: 185 W (typ.); 350 W (max, without OPS and Quicker Changer) |
Standby Power Consumption |
≤0.5 W |
Operating Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
Storage Temperature |
–10 °C to +50 °C (+14 °F to +122 °F) |
Operating Humidity |
10%–90% (RH) |
Storage Humidity |
10%–90% (RH) |
Product Material |
Metal |
Glass |
4 mm anti-dazzle tempered glass |
Casing Color (Frame/Rear) |
Black frame for left and right, silver frame for top and bottom and black frame for back |
Product Dimensions |
1,953.2 mm × 121.3 mm × 1,187.9 mm (79.90" × 3.66" × 46.77") (L × W × H) |
Frame Size |
Top frame: 27 mm (1.06"); Left and right frame: 16.5 mm (0.65"); Bottom frame: 68 mm (2.68") |
Packaging Dimensions |
2,044.0 mm × 200.0 mm × 1,280.0 mm (80.47" × 7.87" × 50.39") (L × W × H) |
Net Weight |
62.0 kg (136.69 lb) |
Gross Weight |
77 kg (169.76 lb) |

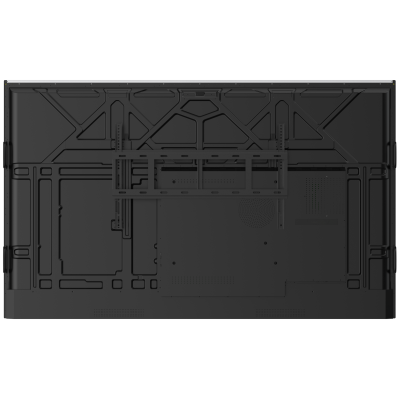

Holes Distance |
800 mm × 400 mm (31.50" × 15.75") |
Installation |
Wall mount or mobile bracket |
Packing List |
1 × Smart interactive whiteboard; 1 × Power cord; 2 × Passive stylus pen; 1 × HDMI cabe; 1 × Quick start guide; 1 × Wall mount bracket (already installed on the whiteboard); 1 × Accessory package; 1 × Remote control; 1 × Legal and Regulatory Information |
Certification |
Certifications |
CE |
