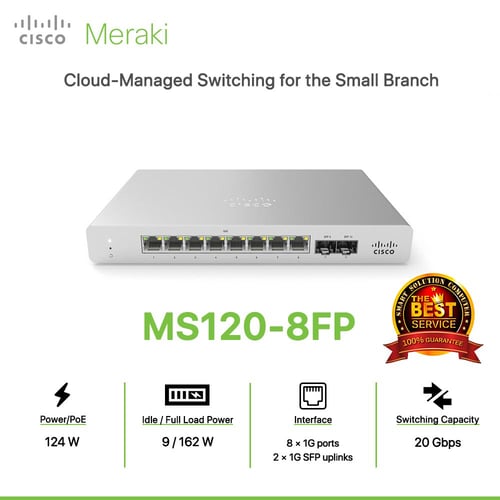

Cisco Meraki MS120-8FP Cloud-Managed Switching for the Small Branch

-24%

Product details of Cisco Meraki MS120-8FP Cloud-Managed Switching for the Small Branch

Interfaces

• 8 × 10/100/1000BASE-T Ethernet (RJ45)
• 2 × 1G SFP ports for uplinks
• Auto-negotiation and crossover detection

Management

• Managed via the Web with the Meraki cloud management platform
• Integrated with Meraki wireless and complete portfolio of IT products and solutions
• Zero-touch remote provisioning (no staging needed)
• Detailed historical per-port and per-client usage statistics
• Operating system, device, and hostname fingerprinting
• SNMP and Syslog support for integration with other network management solutions
• Automatic firmware upgrades with scheduling control

Remote Diagnostics

• Email, SMS, and mobile push notification alerts
• Ping, traceroute, cable testing, and link failure detection with alerting
• Remote packet capture
• Dynamic and interactive network discovery and topology
• Combined event and configuration change logs with instant search

Stacking

• Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Security

• Integrated multi-factor authentication for cloud management platform
• Role-based access control (RBAC) with granular device and configuration control
• Corporate-wide password policy enforcement
• IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing
• Single-Host/Multi-Domain/Multi-Host/Multi Authentication
• Port security: Sticky MAC, MAC whitelisting
• DHCP snooping, detection and blocking
• IPv4 and IPv6 ACLs

Performance

• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 mpps
• Jumbo frame support (9600 byte Ethernet frame)
• Flow control support

Layer 3

• DHCP Relay

Power

• Power input: 100 - 240 VAC, 47-63 Hz
• MS120-8: 6-9 W max, fanless
• MS120-8LP: 7-88 W max, fanless
• MS120-8FP: 9-162 W max, fanless
• 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) available on all ports (maximum of 30W per port for PoE+) for powered switches

Environment

• Operating temperature: 0°C to 45°C
• Humidity: 5 to 95% non-condensing
• Variable speed fans

Regulatory

• CSA-US (US, Canada)
• FCC (USA)
• IC (Canada)
• CE (Europe)
• RCM (Australia/New Zealand)
• RoHS

Warranty

• Full lifetime hardware warranty with next-day advanced replacement included

MTBF Rating (at 25°C)

• MS120-8-HW: 784,221
• MS120-8-LP-HW: 502,221
• MS120-8-FP-HW: 347,479

Physical Specifications (H × W × D)

• MS120-8-HW
  • 1.1” × 8.74” × 5.91” (2.8 × 22.2 × 15cm)
  • 2.36 lb (1.07 kg)
• MS120-8LP-HW
  • 1.1” × 8.74” × 5.91” (2.8 × 22.2 × 15cm
  • 2.36 lb (1.07 kg)
• MS120-8FP-HW
  • 1.75” × 8.97” × 8.58” (4.4 × 22.7 × 23cm)
  • 2.36 lb (1.07 kg)
