ข้อมูลสเปคทั้งหมด
DisplayBrightness (ANSI lumens)
3800
Resolution
WUXGA (1920x1200)
Native Aspect Ratio
16:10
Contrast Ratio (FOFO)
7,500:1
Display Color
30-bit (1.07 billion colors)
Light Source
Lamp
Light Source Life
a. Normal 4000 hrs, c. SmartEco 8000 hrs, d. LampSave 15000 hrs, d. LampSave+ 20000 hrs, b. ECO 10000 hrs
OpticalThrow Ratio
0.9~1.08
Zoom Ratio
1.2x
Projection Offset (Full-Height)
100%
Keystone Adjustment
2D, (Auto) Vertical ± 30 degrees; Horizontal ± 30 degrees
PictureRec. 709 Coverage
83%
Picture Modes
Bright, Presentation, Spreadsheet, User 1, User 2, Video Conference
CompatibilityInput Lag
33.4 ms (1080P 60Hz)
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency
15K~102KHz

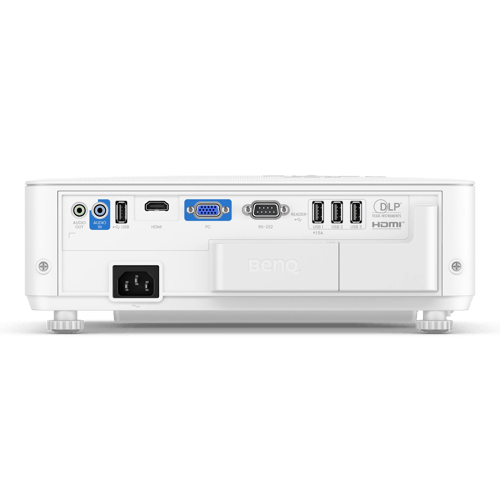

I/O InterfacePC in (D-sub 15pin)
(x1)
HDMI in
(x1), HDMI-1 (1.4a/HDCP1.4)
USB Type A
(x3), USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-2 (2.0/Power Supply1.0A/Reader), USB Type A-3 (3.0/Power Supply1.0A), USB Type A-4 (2.0/Wireless Dongle), USB Type A-5 (2.0/Power Supply 0.9A)
RS232 in (DB-9pin)
(x1)
AudioSpeaker
(x1), 5W
Audio in (3.5mm Mini Jack)
(x1)
Audio out (3.5mm Mini Jack)
(x1)
EnvironmentOperating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
305W
Stand-by Power Consumption
<0.5W
Acoustic Noise (Typ./Eco.)(dB)
35 / 29
AccessoriesWireless USB dongle
EZC-5201BS 1080p, (Standard)
Remote Control w/ Battery
RCI023
Power Cord (by region)
x1 (1.8M)
3D Glasses
(Optional), DGD5
Installation Guide
Yes
Warranty Card (by region)
Yes
Universal Ceiling Mount
(Optional)
Onscreen DisplayLauncher
Uni Launcher
Smart SystemBuilt-in OS
Yes, Android 9.0
Bluetooth
Yes, Bluetooth 4.2
Wi-Fi Standard
802.11 a/b/g/n/ac (2.4G/5G)
Wireless Projection
AirPlay, Google Cast, Miracast
Preload Apps
TeamViewer, BenQStore, Firefox, Youtube, Instashare2, AMS Servcie, X-Sign Broadcast, WPS, Dashboard
Dimension & WeightDimensions (WxHxD) (mm)
312*238.9*110.3
Net Weight (kg)
2.9kg
Net Weight (lb)
6.39lbs
