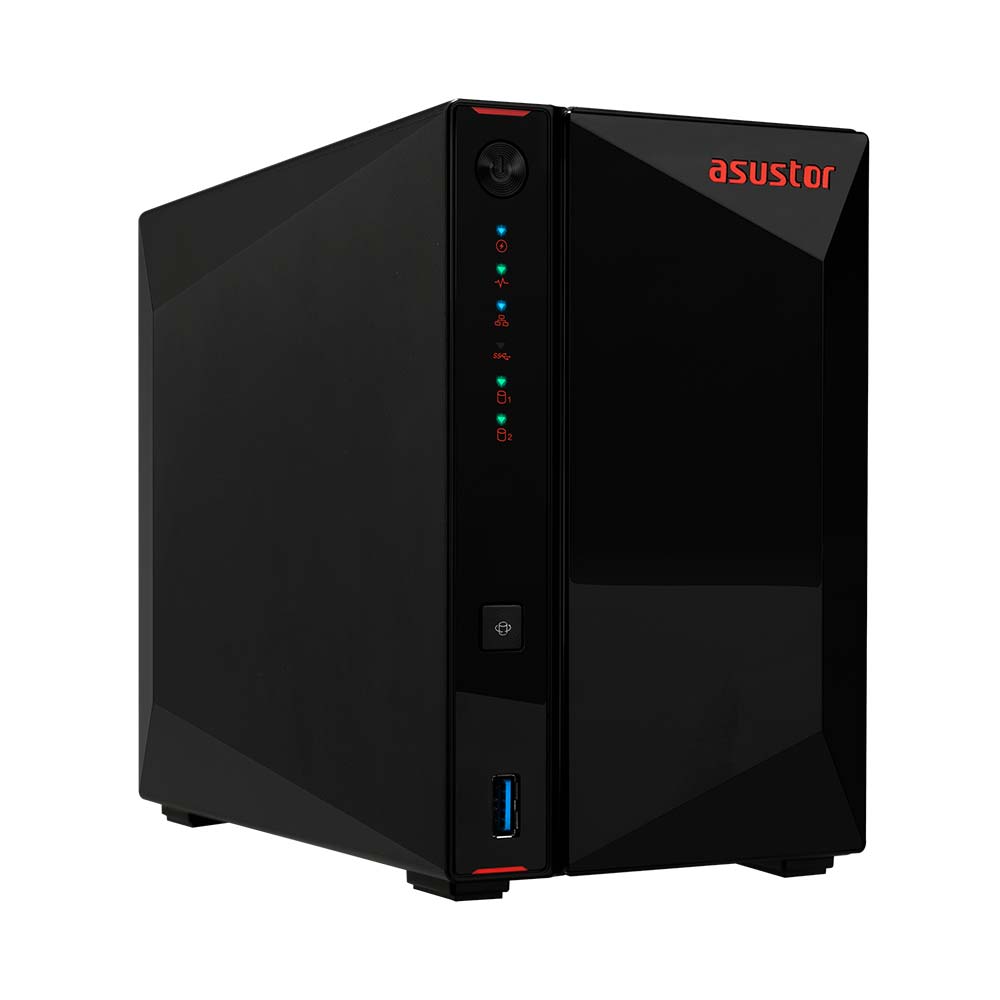

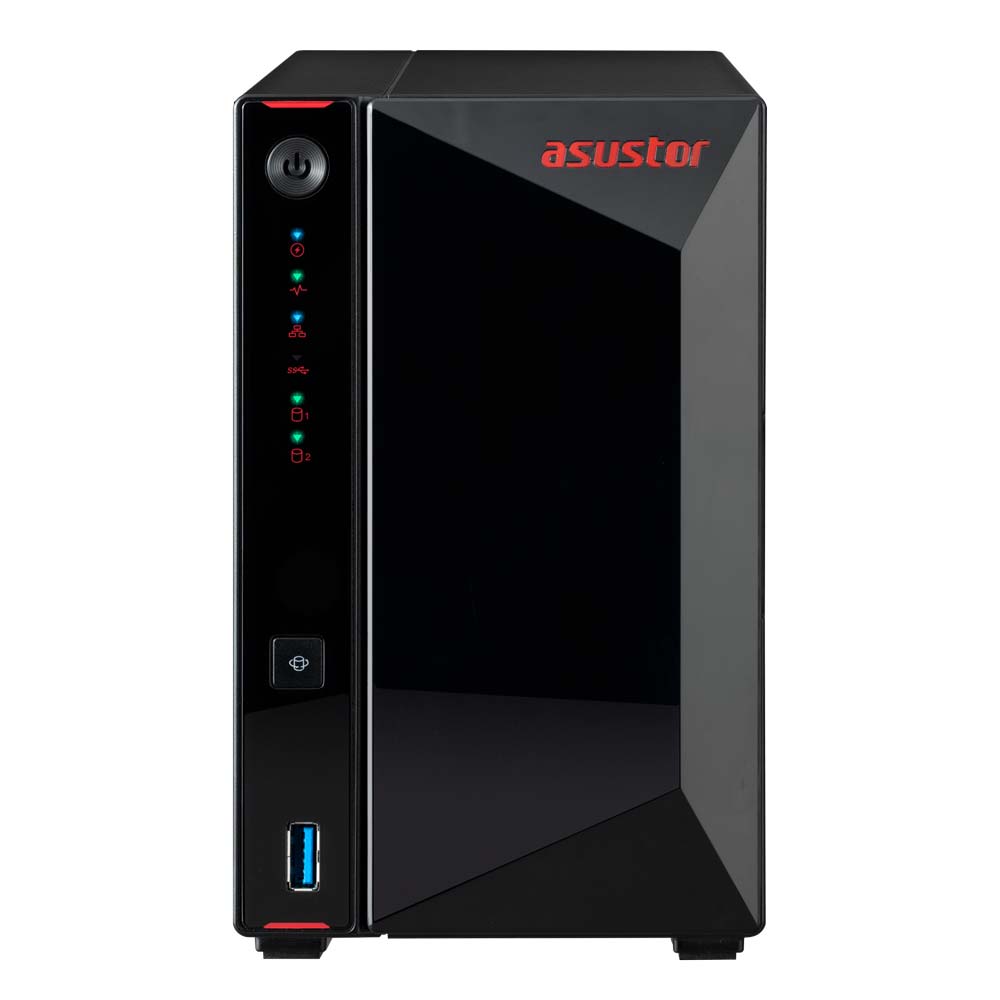

Asustor Nimbustor 2 AS5202T 2-BAY Nas
-8%

  • พอร์ต LAN 2.5GbE สองช่องรองรับความเร็วสูงสุด 5GbE ผ่านการทำ Link Aggregation
  • ความจุสูงสุด 28TB เก็บ Live Stream ไว้บน NAS ของคุณได้เลย
  • ประสบการณ์ในการรับชม 4K อันตื่นตาตื่นใจ
  • Memory ขนาด 2GB แบบ DDR4-2400 เร็วขึ้นกว่า DDR3 30%
  • หน่วยประมวลผล Intel Celeron Dual Core - เร็วขึ้นกว่ารุ่นก่อนหน้า 30%
  • แบบธีมเอาใจสาย Gamer
SKU
AST-AS5202T
ราคา
12,990.00
11,990.00 บาท
สอบถามข้อมูลเพิ่มเติม


Hardware Specifications

CPU

  • Intel Celeron J4005 Dual-Core 2.0 GHz (burst up 2.7GHz) Processor

Memory

  • 2GB SO-DIMM DDR4 (2GB x1, Expandable. Max 8GB)

HDD

  •  2x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD

จำนวน Drive Bay พร้อม Expansion Unit สูงสุด

  •  14

Expansion

  • 3x USB 3.2 Gen 1

Network

  • 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)

HDMI Output

  • 1x HDMI 2.0a

Size

  • 170(H) x 114(W) x 230(D) mm

Power Consumption

  • 17 W (การทำงาน);
  • 10.5 W (ดิสก์ไฮเบอร์เนต);
  • 1.3 W (โหมดการนอนหลับ)


Software & Features

Operating System

  • ADM 4.1 Onwards
  • Supports Online Firmware Updates

Supported OS

  • Windows XP, Vista, 7, 8, 10, 11, Server 2003, Server 2008, Server 2012, Server 2016, Server 2019
  • mac OS 10.6 เป็นต้นไป
  • UNIX, Linux, and BSD



Supported Languages

  • Deutsch, English, Français, Italiano, Nederlands,Русский, 日本語, 한글, 简体中文, 繁體中文, Česká,Polski, Svenska, Dansk, Norsk, Suomi, Português,Türkçe, Español, Magyar, ภาษาไทย

Supported Browsers

  • FireFox
  • Chrome
  • Safari
  • Microsoft Edge

Network Protocols

  • CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (รองรับ Unicode), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

File System

  • Internal Disk: EXT4 ,Btrfs
  • External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs

iSCSI Read/Write (5GB file, 1GbE x 1)/IP-SAN

  • Maximum Targets: 256
  • Maximum LUNs: 256
  • Maximum Snapshot Versions of a Single LUN: 256
  • Target Masking
  • LUN Mapping
  • ISO File Mounting
  • Supports MPIO
  • Persistent (SCSI-3) Reservations

Customized Sign In Page

  • 2 Different Template Choices
  • Customizable Title, Imageand Background
  • Image Import Function

Disk Management

  • Scheduled Bad Block Scans
  • Scheduled S.M.A.R.T Scans

Energy Control

  • Configurable Disk Hibernation and Sleep Mode Wait Time
  • Configurable Time Period for Sleep Mode Activation
  • Automatic Sleep

Network

  • TCP/IP (IPv4 & IPv6)
  • Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
  • SMB Multichannel
  • Jumbo Frame (MTU)
  • VLAN
  • EZ Connect
  • Wireless Network³
  • DDNS and EZ-Router
  • Supports Wake-on-LAN (WOL)
  • Supports Wake-on-WAN (WOW)  ดูเพิ่มเติม

Backup Solutions

  • Rsync (Remote Sync) Backup
  • Cloud Backup
  • FTP Backup
  • External Backup
  • One Touch Backup
  • EZ Sync
  • MyArchive

System Administration

  • Log Type: System Log, Connection Log, File Access Log
  • Real-time Online User Monitor
  • Real-time System Monitor
  • User Quota
  • Virtual Drive (ISO Mounting, Maximum 16)
  • UPS Support

Network Recycle Bin

  • Share ด้วยพื้นฐาน Folder
  • คงไว้ซึ่งโครงสร้าง Directory และ File Permission เดิม
  • Restore แบบ On-Click
  • รองรับการล้างแบบตั้งเวลา
  • Rules ในการกรอง
    1. ขนาดของไฟล์
    2. Extension ของไฟล์
  • การตั้งค่าในการลบ
    1. ขนาดของไฟล์
    2. วันที่ของไฟล์

Access Control

  • Maximum Number of Users: 4096
  • Maximum Number of Groups: 512
  • Maximum Number of Shared Folders: 512
  • Maximum Number of Concurrent Connections: 512
  • Supports Windows Active Directory
  • รองรับ Windows Active Directory / LDAP

ACL

  • Provides both Windows ACL and Linux ACL permission configuration methods
  • Can enable Windows ACL for specific shared folders
  • Comprehensive support for Windows’ 13 types of advanced permission settings
  • Can view Windows ACL permission settings from within ADM
  • Supports local users and groups
  • Exclusive permission reset function allows users to quickly restore default permissions

Security

  • AES 256-Bit Encryption
  • Firewall: Prevent Unauthorized Access
  • Alert Notifications: E-mail, SMS
  • Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
  • Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/6/61/62/63/64/65/66/67/70/71 Series

Network Defender

  • Auto black list
  • Trusted list
  • Black/White list
    • Supports IP/IP range/geolocation

External Devices

  • Supports USB/eSATA3 External Storage Devices
  • USB Wi-Fi Dongle Support
  • Bluetooth Dongle/Speaker Support
  • USB Printer Support
  • USB DAC/IR Receiver/Keyboard/Mouse Support
  • CD ROM Drive/DVD ROM Drive/Blu-Ray ROM


Featured Apps

Antivirus (ClamAV)

  • Scheduled Scans
  • Automatic Virus Definition Updates
  • Quarantine Infected Files

ASUSTOR Portal(HDMI Local Output)

  • รองรับ Browser Firefox
  • การตั้งค่า Power Control : เปิดเครื่อง, Sleep, Restart และ Wake ด้วย Remote
  • ภาพพื้นหลังของ ASUSTOR Portal สามารถเปลี่ยนและปรับแต่งได้
  • เพิ่ม Shortcut ให้กับเว็บไซต์โปรด
  • เพิ่มการใช้งานกับทีวีได้หลากหลายมากขึ้นด้วย Overscan และการตั้งค่าความละเอียดภาพ
  • ความละเอียดสูงสุด : 1080p(HD)/2160p(4k)
  • ASUSTOR Portal มี Netflix และ YouTube ติดตั้งมาอยู่แล้ว . ผู้ใช้สามารถติดตั้ง URL-Pack เพิ่มเติมเพื่อเข้าถึงบริการ Streaming ชื่อดังอื่นๆ เช่น Plex, Vimeo, และ Youku ได้
  • หลังจากติดตั้ง URL-Pack-Social ผู้ใช้จะสามารถเลือกระหว่างเว็บไซต์ Social Media เช่น Facebook, Twitter, Linkedin, Pinterest, Hangouts, Telegram, Snapchat และ Instagram ได้

VirtualBox

  • Virtual Machines are Able to run the Following Operating Systems: Windows, Linux, Solaris, macOS
  • Virtual Machine Import Format: OVF
  • Virtual Machine Export Format: OVF 0.9, OVF 1.0, OVF 2.0
  • Virtual Machine Snapshots
  • Virtual Machine HDMI Audio Output
  • Physical NAS Network Port can be Designated for use by Specific Virtual Machine

Download Center

  • Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads
  • Torrent Search
  • Choose Files Before a BT Task Starts
  • Customizable Download Schedule
  • Bandwidth Control
  • RSS Subscription and Automatic Downloading (Broadcatching)
  • ASUSTOR Download Assistant for Windows & Mac
  • AiDownload for Android with Push Notification
  • Smart Download Function

Cloud Backup Center

  • สนับสนุน Amazon S3, Backblaze B2, Microsoft Azure หยดคลังเก็บของ, อาลีบาบาเมฆ Baidu เมฆ IBM เมฆและ Rackspace Cloud Files, SFTP, WebDAV
  • ทันทีหรือสำรองที่กำหนดไว้
  • ปฏิบัติงานสำรองข้อมูลหลายและสำรองหลายบัญชี

DataSync Center

  • รองรับ OneDrive, OneDrive Business, Google Drive, Dropbox และ Baidu Wangpan,Yandex
  • รองรับตัวกรองไฟล์และข้อ จำกัด แบนด์วิดท์
  • วิธีการสำรองข้อมูลที่รองรับ:
    • Sync
    • อัปโหลดไฟล์ไปยัง Cloud โดยตรงจาก NAS
    • ดาวน์โหลดไฟล์จาก Cloud ไปยัง NAS โดยตรง

File Explorer

  • Web-based File Management
  • ISO File Mounting
  • Share Links
  • Task Monitor
  • Browse Files on Local PC
  • Thumbnail Previews
  • Data Access via External Optical Drive
  • Supports video playback¹⁰

FTP Explorer

  • Directory Structure View with Drag & Drop Transfers
  • Task Monitor
  • Stopping of Transmission Task & Resumption of Connection
  • Encrypted Connections: Explicit over TLS, Implicit over TLS
  • FTP Site Manager
  • Bandwidth Control
  • Maximum Simultaneous Transfer Control

HiDrive

  • Support OneDrive and OneDrive Business
  • Each ADM Account is Able to Individually Log in to One HiDrive Account
  • Supported Backup Methods:
    • Directly Upload Files to HiDrive from NAS
    • Directly Download Files from HiDrive to NAS
  • Supported Protocols:
    • Rsync
    • FTP
    • FTPS
    • SFTP
    • Rsync + SSH

LooksGood

  • หมวดหมู่ของ Video Library แบบดั้งเดิมมีตามนี้ : Movies, TV Shows, Home Movies และ การจัดเรียงวีดีโอแบบอัจฉริยะ
  • ฟีเจอร์ Global Search ที่มีประสิทธิภาพทำให้ผู้ใช้สามารถค้นหาได้ด้วย Keywork ตามด้วยรายละเอียดเพิ่มเติม เพื่อหาหมวดของสวีดีโอ เช่น Movies, TV Shows, Home Movie และรายละเอียดอื่นๆ เช่น นักแสดง ผู้กำกับ ปี ประเภท ผู้เขียนหรือ ชื่อภาพยนต์นั้นๆ Poster Wall และ T
  • humbnail ที่ดูน่าดึงดูด
  • สร้าง Video Poster Thumbnail โดยอัตโนมัติ
  • การจัดการแบบส่วนกลาง ทำให้สามารถปรับแต่งและจัดเรียง Playlist และประวัติ Playlist
  • Admin ของระบบสามารถปรับแต่ง Video Library รวมไปถึงกำหนดสิทธิ์ตามความประสงค์ของผู้ใช้แต่ละคนได้
  • สามารถตั้งค่าการเข้าถึงให้กับ
  • เพื่อน และ ครอบครัว
  • ฟีเจอร์การแปลงไฟล์ Multimedia
  • รองรับการบันทึก Digital TV ด้วย Digital TV Dongle

OwnTone

  • For iTunes on Mac & Windows
  • Supports AirPlay
  • Supports iOS Remote Pairing
  • Supported Audio Formats: AIF⁵, M4A (AAC & Apple Loseless), M4P, M4R, MP3, WAV⁵
  • Supported Video Formats: M4V, MOV, MP4
  • Supported Playlist Formats: M3U, WPL

Mail Server

  • Each ADM Account can Become an Independent Email Account
  • Email Activity Monitor (Over 1 Week, 1/3/6 Months)
  • Provides SMTP, IMAP and POP3 Mail Protocols
  • Supports SMTP Relay and Verification
  • SMTP-SSL Secure Connections
  • Spam Filter and Black List Settings
  • Antivirus Scanning for Emails
  • Email Alias Creation and Mapping
  • Monitoring of Mail Queue
  • Mail Service Activity Log
  • Exclusive Email Backup Mechanism
  • Auto-Forwarding and Auto-Response Protocols

Photo Gallery 3

  • หาได้อย่างรวดเร็วและดูภาพถ่ายจากวันที่ที่ระบุในรูปภาพที่ 3 ของระยะเวลา
  • รูปภาพ 3 เรียงภาพถ่ายของคุณในวิธีที่ชาญฉลาด อัลบั้มสมาร์ทพบใน Photo Gallery 3 รวมถึงสถานที่, วิดีโอ, เพิ่มเมื่อเร็ว ๆ นี้และรายการโปรด
  • รองรับสองวิธีการแบ่งปันภาพถ่ายเชื่อมโยงร่วมกันกับผู้ใช้งาน NAS อื่น ๆ หรือกับเพื่อนและครอบครัว อัลบั้มทั้งหมดร่วมกันมีการเข้ารหัสตัวเลือกที่จะปกป้องข้อมูลที่สำคัญ
  • ได้อย่างง่ายดายเข้าใจข้อมูลเมตาของภาพเช่นเดียวกับรายละเอียดแก้ไขภาพที่จะทำให้ภาพถ่ายบัตรประจำตัวได้ง่ายขึ้น
  • สามารถค้นหาภาพโดยการค้นหาคำหลัก

VPN Server

  • Supported VPN Protocols: PPTP, OpenVPN, and L2TP/IPsec
  • View Current Connections & Ability to Disconnect Suspicious Connections
  • Comprehensive Connection Log

SNMP Server

  • รองรับ SNMP v1, v2c, v3 และ trap
  • ASUSTOR NAS MIB มีมาให้แล้ว

Syslog server

  • รองรับ Syslog Protocol มาตรฐาน
  • ดู Graphical Log ได้ตามเวลา และ อุปกรณ์
  • รองรับ TCP และ UDP
  • จัดเก็บ Log โดยอัตโนมัติ
  • การแจ้งเตือนผ่าน Email ที่ผู้ใช้กำหนดเอง

Surveillance Center

  • รับชมสดได้พร้อมกัน 36 Channel ด้วยความละเอียด 720p
  • การควบคุมกล้องโดยตรงบนหน้าจอประกอบไปด้วย PTZ, บันทึกตามคำสั่ง, ถ่าย Snapshot, ตั้งค่ากล้อง, และเปิดแผนที่
  • การเล่น 4 Channel ทั้งแบบ Synchronous และ Non-Synchronous พร้อมสัญญาณเสียง
  • การวิเคราะห์วีดีโออัจฉริยะ รองรับการตรวจจับความเคลื่อนไหว และวัตถุแปลกปลอม
  • Browser ที่รองรับ : Microsoft Edge, Firefox, Chrome
  • การแจ้งเตือนเหตุการณ์ที่รองรับ : SMS, E-mail, และ Push Notification ไปยังมือถือ
  • Rules ในการจัดการเหตุการณ์
  • ควบคุมการเข้าถึงแบบ Role-Based
  • เซิร์ฟเวอร์สตรีมมิ่ง RTSP (วิดีโอและเสียง)
  • แอพมือถือ AiSecure สำหรับ iOS และ Android พร้อม Push Notification
  • รองรับมาตรฐาน ONVIF Profile S, T
  • CMS Lite รองรับการเชื่อมต่อกล้อง IP สูงสุด 256 ตัวจาก 32 NAS
  • มีแพกเกจของ License กล้องให้เลือกสองแบบ : 1-Channel และ 4-Channel
  • กล้อง IP Cam สูงสุด (4 License Free ; License ที่ซื้อเพิ่มเติม)


SeriesMaximum IP cam
AS71100
AS764
AS6564
AS6744
AS6640
AS63/6436
AS61/6236
AS52/5336
AS50/5130
AS3325
AS31/3225
AS4016
AS-616
AS1112
AS-2TE/AS-38
AS-2T8
AS108


  • รายละเอียดของ PC Client ขั้นต่ำที่ต้องการ
    • CPU : Intel i5 / i7 หรือมากกว่า
    • RAM : DDR3 4GB หรือมากกว่า
    • ระบบปฏิบัติการ : Windows 7 และใหม่กว่า
    • Browser ของ Windows : Microsoft Edge, Chrome, Firefox
    • ความละเอียดหน้าจอ : 1280x800 Pixel หรือมากกว่า เพื่อประสบการณ์ในการใช้งานที่ดีที่สุด
    • เชื่อมต่อเครือข่าย: Gigabit x1
    • แนะนำให้ใช้การ์ดจอแยก

SoundsGood

  • Import Personal/Public Music Collection
  • Personal/Public Music Collection Permission Control
  • Playlist Editor
  • ID3 Tag Editor
  • Local Speaker Support: HDMI, USB, Audio Jack
  • Supported Audio Formats for Browser: MP3, WAV, Ogg
  • Supported Audio Formats for Transcoding Through Browser: AIFF, Flac
  • Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac
  • ASUS DAC Support

Takeasy

  • Download from YouTube, Vimeo, Twitch and More
  • Selectable Video Type and Quality
  • Automatic Downloads with Twitch Subscriptions
  • Preview Downloads in Progress
  • Online Playback

UPnP Media Server

  • Supports PS3 and other Digital Media Player Capable Devices
  • Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC)
  • Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image⁴ (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)

VPN Client

  • Supported VPN Protocols: PPTP, OpenVPN, L2TP/IPsec
  • Transmission Package Monitor
  • PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2
  • PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit)
  • OpenVPN Port Control
  • OpenVPN Link Compression



รีวิวจากผู้ซื้อ

0/ 0 รีวิว
สินค้านี้ยังไม่มีการให้คะแนนและรีวิว

สินค้าที่คล้ายกัน

Asustor Nimbustor 2 AS5202T 2-BAY Nas
8%

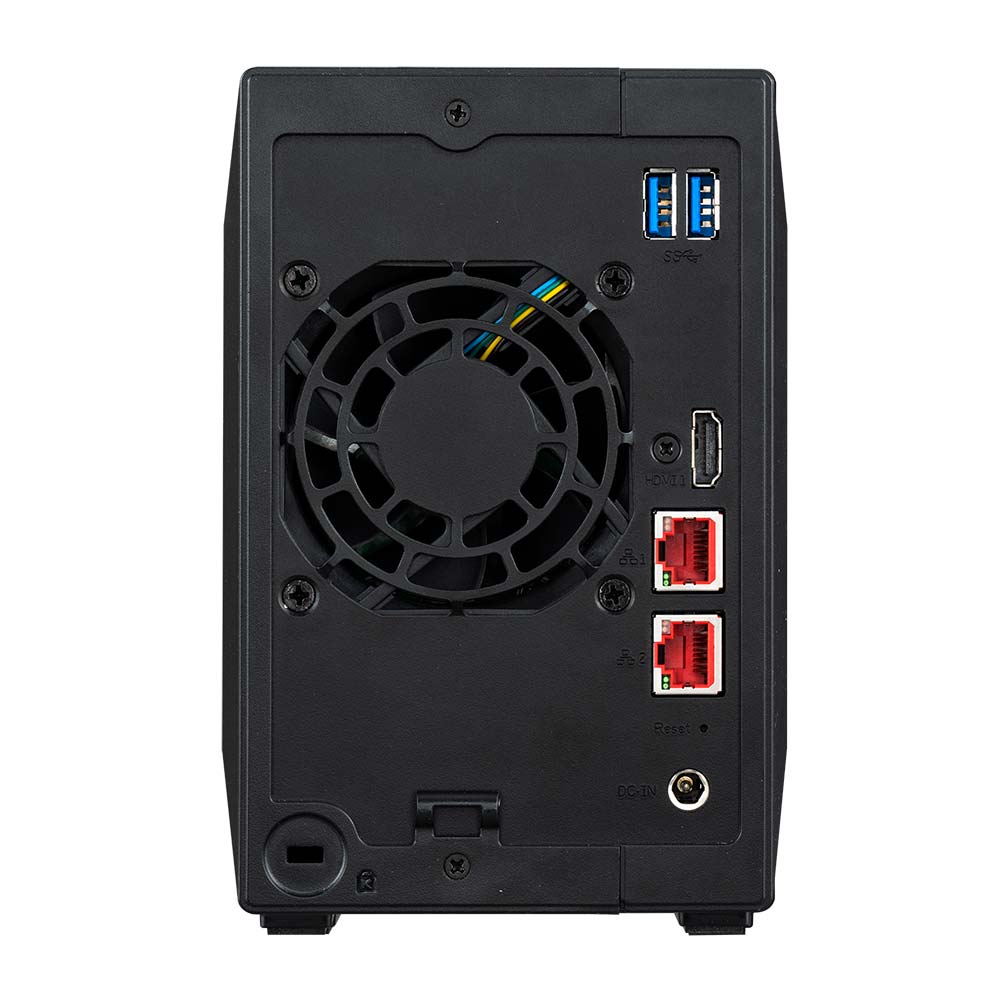

Asustor Nimbustor 2 AS5202T 2-BAY Nas

12,990.00

11,990.00 บาท

Asustor Drivestor 4 AS1104T 4-BAY Nas
10%

Asustor Drivestor 4 AS1104T 4-BAY Nas

10,990.00

9,900.00 บาท

Asustor Drivestor 4 Pro AS3304T 4-BAY Nas
4%

Asustor Drivestor 4 Pro AS3304T 4-BAY Nas

12,990.00

12,500.00 บาท

Asustor Nimbustor 4 AS5304T 4-Bay Nas
8%

Asustor Nimbustor 4 AS5304T 4-Bay Nas

17,990.00

16,590.00 บาท


ยินดีรับบัตรเครดิตทุกธนาคาร





ติดต่อสอบถาม

บริษัท สมาร์ท โซลูชั่น คอมพิวเตอร์ จำกัด (สำนักงานใหญ่)
236-236/2 ถนนทิพย์ช้าง ตำบลสวนดอก  อำเภอเมือง
จังหวัดลำปาง 52100
Tel.
054-323803 ถึง 5 กด 0 , 088-5471881
E-mail :
marketing@smartsolutioncomputer.com
Website :
www.smartsolutioncomputer.com

บริษัท สมาร์ท โซลูชั่น คอมพิวเตอร์ จำกัด (สาขาเชียงใหม่)
โครงการดิเออบาน่า 2

333/24 หมู่ 7 ถ.เชียงใหม่-หางดง ตำบลแม่เหียะ
อำเภอเมือง เชียงใหม่ 50100
Tel.
053-280585
E-mail :
pongphan@smartsolutioncomputer.com

บริษัท สมาร์ท โซลูชั่น คอมพิวเตอร์ จำกัด (สาขากรุงเทพฯ)

1687/1 อาคารพหล 19 ชั้น 2 ถนนพหลโยธิน แขวงจตุจักร

เขตจตุจักร กรุงเทพมหานคร 10900
Tel.
02-1054738 ต่อ 101-102
E-mail :
project@smartsolutioncomputer.com


Copyright © 2019 Smart Solution Computer

Powered by Autodigi
contact
