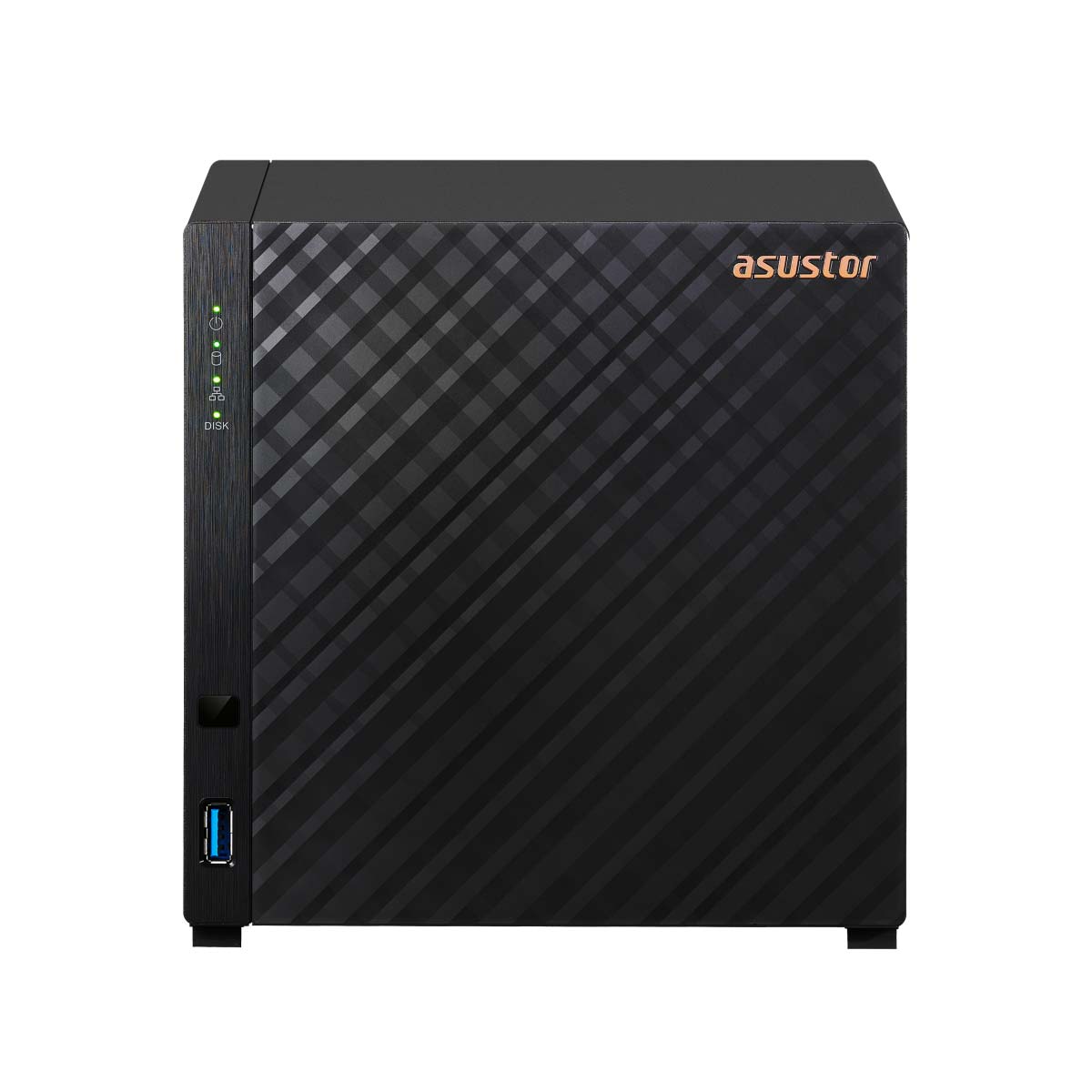

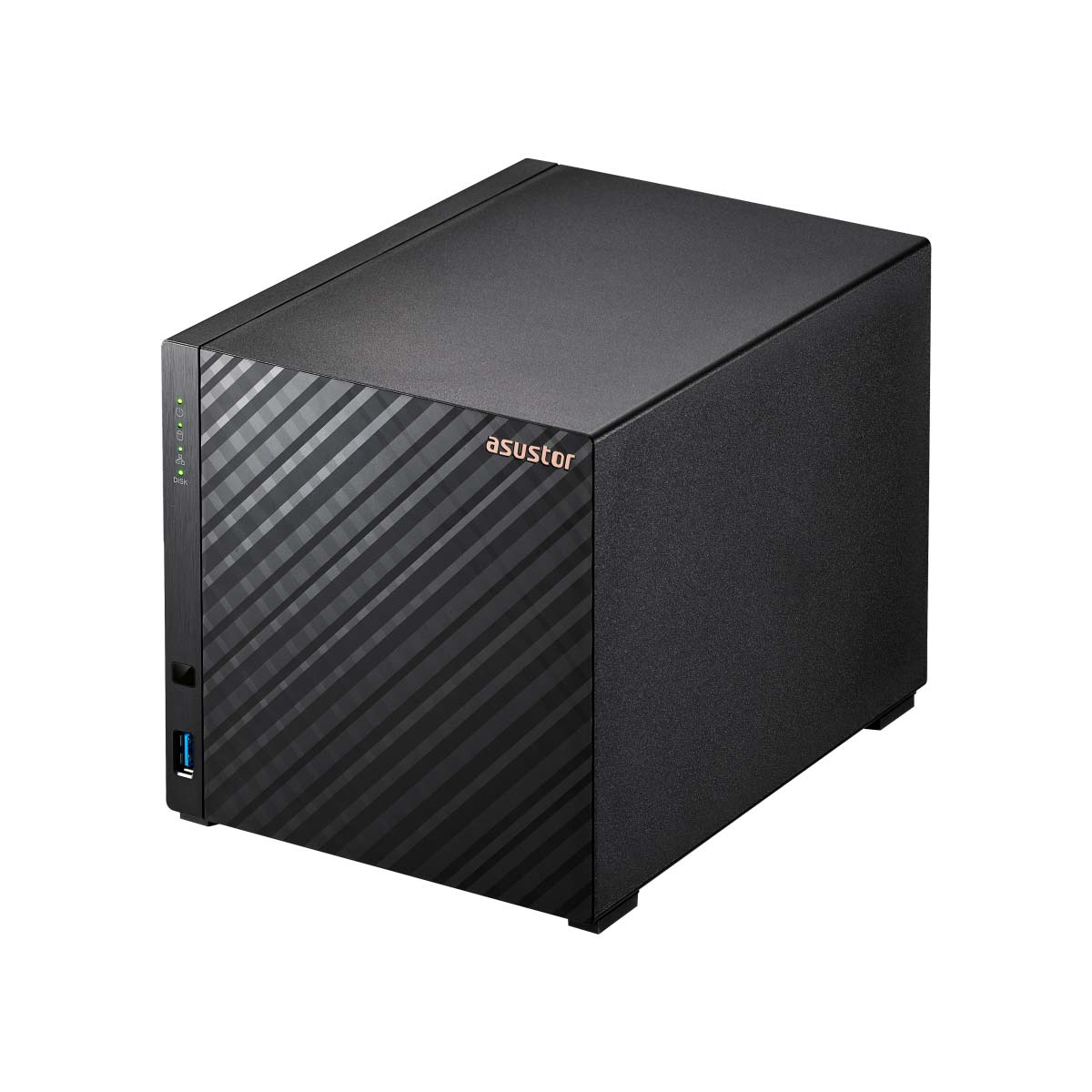

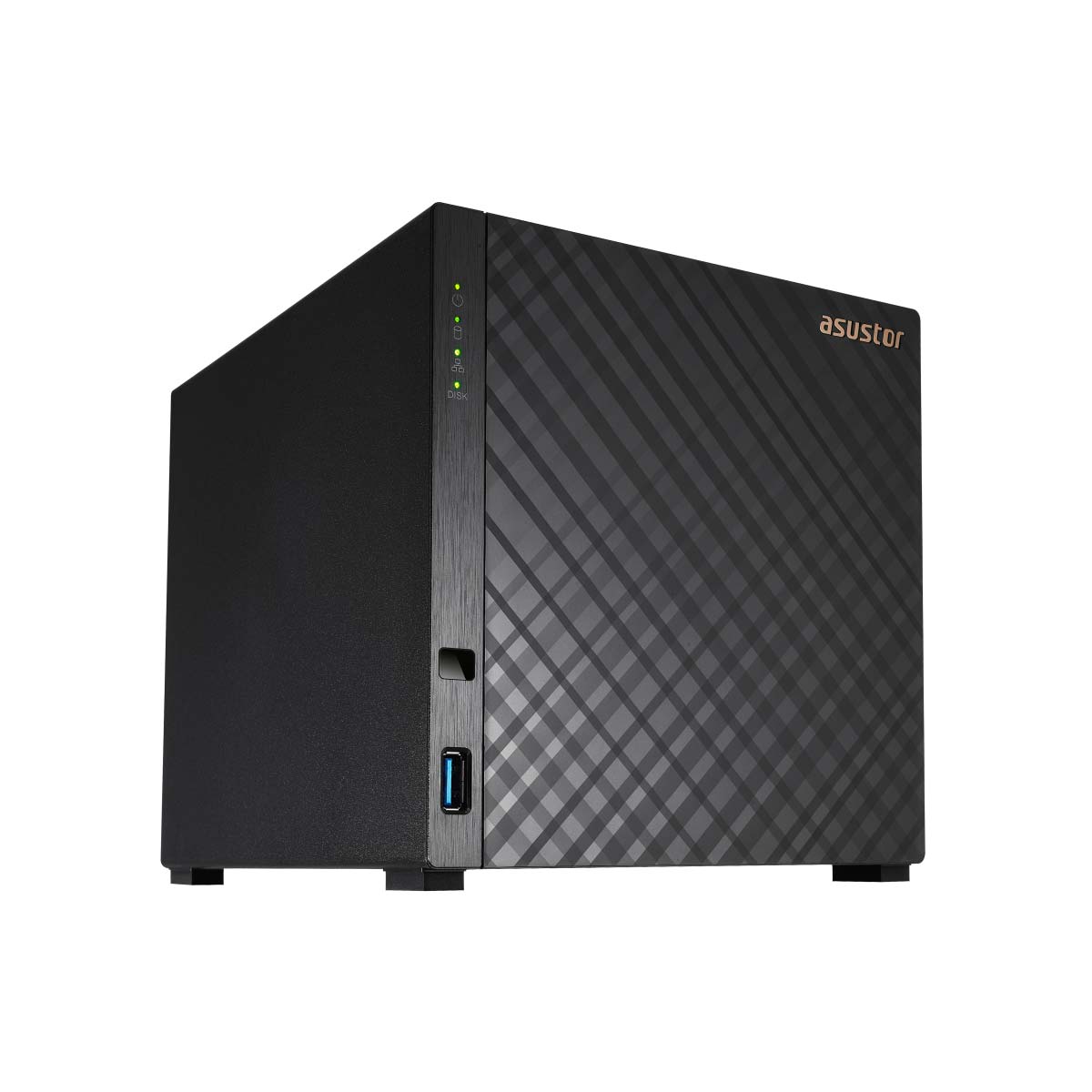

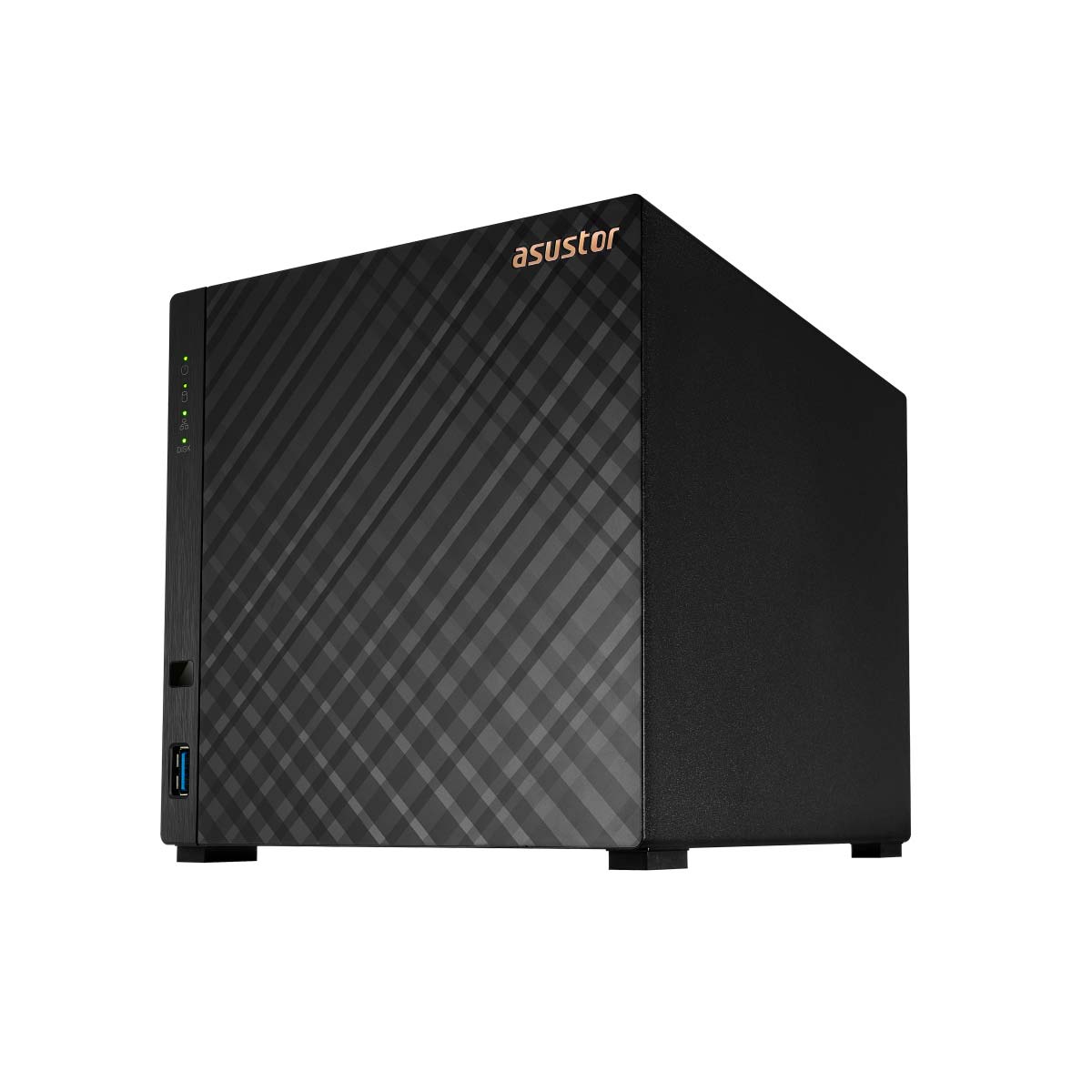

Asustor Drivestor 4 AS1104T 4-BAY Nas

-10%

Hardware Specifications

CPU

• CPU Model : Realtek RTD1296
• CPU Architecture : ARM64 64-bit
• CPU Frequency : Quad-Core 1.4GHz

Memory

• Memory : 1GB DDR4
• Memory Expandable up to : not expandable
• Flash Memory : 8GB eMMC

Storage

• Drive Bays : 4
• Compatible Drive Type : 3.5" SATA HDD
• Maximum Drive Bays with Expansion Unit : 12

External Ports

• Expansion : 2x USB 3.2 Gen 1
• Network : 1x 2.5 Gigabit Ethernet (2.5G/1G/100M)
• HDMI Output : N/A

Others

• System Fan : 1x 120mm
• Power Supply Unit / Adapter : 90W x1
• Input Power Voltage : 100V to 240V AC
• Certification : FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC
• Warranty : 3 Years

Operation

• Power Consumption : 22.8W (Operation) 9.41W (Disk Hibernation);
• Noise Level : 19.7dB (HDD idle)
• Operation Temperature : 0°C~40°C (32°F~104°F)
• Humidity : 5% to 95% RH
•


Size and Weight

• Size : 165(H) x 164(W) x 218(D) mm
• Weight : 1.57 kg / 3.45 lbs


Software & Features

General Specifications

Supported OS

• Windows XP, Vista, 7, 8, 10, 11, Server 2003, Server 2008, Server 2012, Server 2016, Server 2019
• macOS
• UNIX, Linux, and BSD

Supported Languages

• Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, Česká, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ภาษาไทย

Supported Browsers

• Firefox
• Chrome
• Safari
• Microsoft Edge

Network

Network Protocols

• CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

Connection and transmission

• TCP/IP (IPv4 & IPv6)
• Link Aggregation: 0
• Jumbo Frame (MTU)
• VLAN
• EZ Connect
• Wireless Network
• DDNS and EZ-Router
• Supports Wake-on-LAN (WOL)
• Supports Wake-on-WAN (WOW)

File Management & Sharing

File System

• Internal Disk: EXT4
• External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT


File Explorer

• Web-based File Management
• ISO File Mounting
• Share Links
• Task Monitor
• Browse Files on Local PC
• Thumbnail Previews
• Data Access via External Optical Drive
• Supports video playback

Network Recycle Bin

• Share folder-based
• Maintains original directory structure and file permission
• On-click restore
• Supports scheduled emptying
• Filtering rules
  1. File size
  2. File extension
• Deletion Settings
  1. File size
  2. File date


Storage management

RAID

• Volume Type: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• Support for Online RAID Level Migration

iSCSI/IP-SAN

• Maximum Targets: 256
• Maximum LUNs: 256
• Maximum Snapshot Versions of a Single LUN: 256
• Target Masking
• LUN Mapping
• ISO File Mounting
• Supports MPIO
• Persistent (SCSI-3) Reservations

Disk Management

• Scheduled Bad Block Scans
• Scheduled S.M.A.R.T Scans


ACL

• Provides both Windows ACL and Linux ACL permission configuration methods
• Can enable Windows ACL for specific shared folders
• Comprehensive support for Windows’ 13 types of advanced permission settings
• Can view Windows ACL permission settings from within ADM
• Supports local users and groups
• Exclusive permission reset function allows users to quickly restore default permissions


System Administration

• Log Type: System Log, Connection Log, File Access Log
• Real-time Online User Monitor
• Real-time System Monitor
• User Quota
• Virtual Drive (ISO Mounting, Maximum 16)
• UPS Support

Security

• AES 256-Bit Encryption
• Firewall: Prevent Unauthorized Access
• Alert Notifications: E-mail, SMS
• Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
• Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/6/61/62/63/64/65/66/67/70/71 Series
• RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.

Network Defender

• Auto black list
• Trusted list
• Black/White list
  • Supports IP/IP range/geolocation

Backup

Backup Solutions

• Rsync (Remote Sync) Backup
• Cloud Backup
• FTP Backup
• External Backup
• EZ Sync

Snapshots

• iSCSI Snapshots
• Support up to 256 snapshots

Others

ASUSTOR Hightlight

• System Migration
• EZ Connect
• Dr.ASUSTOR
• 2-way Backup
• Task Monitor

Eco-Friendly Design

• Auto-Standby for Both Internal and External Disks
• Auto Fan Control
• LED Night Mode
• Power Schedule: On, Off, Restart

Energy Control

• Configurable Disk Hibernation Wait Time

Featured Apps

Official ASUSTOR Apps

Antivirus (ClamAV)

• Scheduled Scans
• Automatic Virus Definition Updates
• Quarantine Infected Files

Download Center

• Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads
• Torrent Search
• Choose Files Before a BT Task Starts
• Customizable Download Schedule
• Bandwidth Control
• RSS Subscription and Automatic Downloading (Broadcatching)
• ASUSTOR Download Assistant for Windows & Mac
• AiDownload for Android with Push Notification
• Smart Download Function

Cloud Backup Center

• Support Amazon S3, Backblaze B2, Microsoft Azure Blob Storage, Alibaba Cloud, Baidu Cloud, IBM Cloud and Rackspace Cloud Files, SFTP, WebDAV
• Immediate or scheduled backup
• Perform multiple backup tasks and back up multiple accounts

DataSync Center

• Support OneDrive, OneDrive Business, Google Drive, Dropbox, and Baidu Wangpan,Yandex
• Supports file filter and bandwidth limitation
• Supported backup methods:
  • Sync
  • Directly upload files to Cloud from NAS
  • Directly download files from Cloud to NAS

FTP Explorer

• Directory Structure View with Drag & Drop Transfers
• Task Monitor
• Stopping of Transmission Task & Resumption of Connection
• Encrypted Connections: Explicit over TLS, Implicit over TLS
• FTP Site Manager
• Bandwidth Control
• Maximum Simultaneous Transfer Control

HiDrive

• Each ADM Account is Able to Individually Log in to One HiDrive Account
• Supported Backup Methods:
  • Directly Upload Files to HiDrive from NAS
  • Directly Download Files from HiDrive to NAS
• Supported Protocols:
  • Rsync
  • FTP
  • FTPS
  • SFTP
  • Rsync + SSH

Yandex

• Each ADM Account is Able to Individually Log in to One Yandex Account
• Supported Backup Methods:
  • Sync
  • Directly Upload Files to Yandex from NAS
  • Directly Download Files from Yandex to NAS

LooksGood

• Built-in three main video library categories; movies, TV shows, home movies and smart video sorting management
• Efficient global search function allows for searches by keywords followed by the execution of more detailed searches for the purpose of finding categories of movies, TV shows, home movies and parameters such as actors, director, year, genre, writer and title
• Attractive poster wall and thumbnail display
• Automatic production of video poster thumbnails
• Centralized management and ability to configure order of favorites and playlist history
• System administrator is able to configure video library and editing permissions according to user preferences
• Can configure access permissions to share with
• friends and family
• Multimedia conversion feature
• Self-defined smart folder for video conversions
• Supports digital TV recordings via digital
• TV dongles
• Supports playback of videos in Apple TV via AiVideos tvOS version.

Photo Gallery 3

• Quickly find and view photos from a specific date in Photo Gallery 3’s timeline.
• Photo Gallery 3 sorts your photos in a smarter way. Smart albums found in Photo Gallery 3 include places, videos, recently added and favorites.
• Supports two methods to share photos, share links to other NAS users or to friends and family. All shared albums have optional encryption to protect sensitive information.
• Easily understand photo metadata as well as edit photo descriptions to make photo identification easier.
• Easily find photos by keyword search.

Surveillance Center

• Up to 12 channels in 720p on single live view display
• On-screen camera controls including camera PTZ, manual recordings, take snapshots, configure camera settings and open Maps
• Up to 4 channels of synchronous and non-synchronous playback with audio
• Intelligent video analytics including motion detection and foreign object detection
• Supported Browsers: Microsoft Edge, Firefox, Chrome
• Event notification supports SMS, E-mail, and mobile push notification
• Automated event action rules
• Role-based access control
• RTSP streaming server (video and audio)
• AiSecure mobile app for iOS and Android with Push notification
• ONVIF Profile S, T supported
• CMS Lite supports connect up to 256 IP Cameras from 32 NAS
• Two different camera license packages are offered: single channel and 4 channels.
• Maximum IP Cam (4 Free Camera Licenses; Additional Licenses to be Purchased)
• Up to 12 channels in 720p on single live view display
• On-screen camera controls including camera PTZ, manual recordings, take snapshots, configure camera settings and open Maps
• Up to 4 channels of synchronous and non-synchronous playback with audio
• Intelligent video analytics including motion detection and foreign object detection
• Supported Browsers: Microsoft Edge, Firefox, Chrome
• Event notification supports SMS, E-mail, and mobile push notification
• Automated event action rules
• Role-based access control
• RTSP streaming server (video and audio)
• AiSecure mobile app for iOS and Android with Push notification
• ONVIF Profile S, T supported
• CMS Lite supports connect up to 256 IP Cameras from 32 NAS
• Two different camera license packages are offered: single channel and 4 channels.
• Maximum IP Cam (4 Free Camera Licenses; Additional Licenses to be Purchased)
• Minimum PC Client Requirements
  • CPU: Intel i5/i7 or above
  • RAM: DDR3 4G or above
  • Operating system Windows 7 and onward
  • Windows browsers: Microsoft Edge, Chrome, Firefox
  • Display resolution: 1280x800 pixels or higher for best user experience
  • Network interface: Gigabit x1
  • Independent graphics card is highly recommend

SoundsGood

• Import Personal/Public Music Collection
• Personal/Public Music Collection Permission Control
• Playlist Editor
• ID3 Tag Editor
• Local Speaker Support: HDMI, USB, Audio Jack
• Supported Audio Formats for Browser: MP3, WAV, Ogg
• Supported Audio Formats for Transcoding Through Browser: AIFF, Flac
• Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac
• ASUS DAC Support

Takeasy

• Download from YouTube, Vimeo, Twitch and More
• Selectable Video Type and Quality
• Automatic Downloads with Twitch Subscriptions
• Preview Downloads in Progress
• Online Playback

UPnP Media Server

• Supports PS3 and other Digital Media Player Capable Devices
• Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC)
• Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)

VPN Client

• Supported VPN Protocols: PPTP, OpenVPN,
• Transmission Package Monitor
• PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2
• PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit)
• OpenVPN Port Control
• OpenVPN Link Compression

VPN Server

• Supported VPN Protocols: PPTP, OpenVPN, and L2TP/IPsec
• View Current Connections & Ability to Disconnect Suspicious Connections
• Comprehensive Connection Log

RADIUS Server

• Centralized management of wireless network certification
• Using WPA-Enterprise or WPA2-Enterprise encryption
• Must be combined with a wireless router that supports RADIUS authentication

SNMP Server

• Supports SNMP v1, v2c, v3 and trap
• ASUSTOR NAS MIB provided

Syslog server

• Supports standard syslog protocol
• Graphical log monitoring by time and device
• Supports TCP and UDP
• Auto log archiving
• User-defined email notification
