| PERFORMANCE |
| Processor | Intel® Core Ultra 5 225U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB |
| AI PC Category | AI PC
|
| NPU | Integrated Intel® AI Boost, up to 12 TOPS |
| Graphics | Integrated Intel® Graphics |
| Chipset | Intel® SoC Platform |
| Memory | 1x 16GB SO-DIMM DDR5-5600 |
| Memory Slots | Raptor Lake and Arrow Lake: two DDR5 SODIMM slots, dual-channel capable |
| Max Memory | Raptor Lake with H Series processors and Arrow Lake: up to 64GB DDR5-5600 |
| Storage | 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Storage Slot | Raptor Lake and Arrow Lake: two M.2 slots • One M.2 2242 PCIe® 4.0 x4 slot • One M.2 2280 PCIe 4.0 x4 slot |
| Max Storage Support | Models with U or H series processor: up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB |
| Card Reader | No card reader |
| Audio Chip | High Definition (HD) Audio, Senary SN6147 codec |
| Speakers | Stereo speakers, 2W x2, Dolby Atmos®, audio by HARMAN |
| Microphone | 2x, Array |
| Camera | 5.0MP with Privacy Shutter |
| Battery | 48Wh |
| Power Adapter | 65W USB-C® (3-pin) |
| DESIGN |
| Display
| 14" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz |
| Touchscreen | None |
| Screen-to-Body Ratio | 90% |
| Pen | Pen Not Supported |
| Keyboard | Non-backlit, Thai |
| Dimensions (WxDxH)
| 313 x 220.3 x 10.1/15.25 (front/rear), 20.5 (maximum) mm; 12.32 x 8.67 x 0.40/0.60 (front/rear), 0.81 (maximum) inches |
| Weight
| Starting at 1.34 kg (2.95 lbs) |
| Case Color | Black |
| Case Material | Aluminium (Top), PC-ABS (Bottom) |
| SOFTWARE |
| Operating System | Windows® 11 Pro, English (US) / English (UK) |
| Bundled Software | None |
| CONNECTIVITY |
| WLAN + Bluetooth | Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3
|
| WWAN | Non-WWAN |
| SIM Card | None |
| Ethernet | 100/1000M (RJ-45) |
| NFC | None |
| Standard Ports | - 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
- 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.1 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
|
| Optional Ports (configured) | 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), with USB PD 3.1 and DisplayPort™ 1.4 |
| Docking | Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad E14 Gen 7 (Intel) |
| SECURITY & PRIVACY |
| Security Chip | Discrete TPM 2.0 Enabled |
| Physical Locks | Kensington® Nano Security Slot, 2.5 x 6 mm |
| Smart Card Reader | None |
| Fingerprint Reader | None |
| Other Security | - Camera privacy shutter
- ThinkShield
|
| MANAGEABILITY |
| System Management | Non-vPro® |
| SERVICE |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 3Y Premier Support Upgrade from 1Y Courier/Carry-in |
| ACCESSORIES |
| Bundled Accessories | None |
| CERTIFICATIONS |
| Green Certifications | - ENERGY STAR® 9.0
- EPEAT™ Gold Registered
- ErP Lot 6/26
- RoHS compliant
- TCO Certified, generation 10
|
| Mil-Spec Test | MIL-STD-810H military test passed |
| Other Certifications | TÜV Rheinland® Low Blue Light (Software Solution) |
| MODEL INFORMATION |

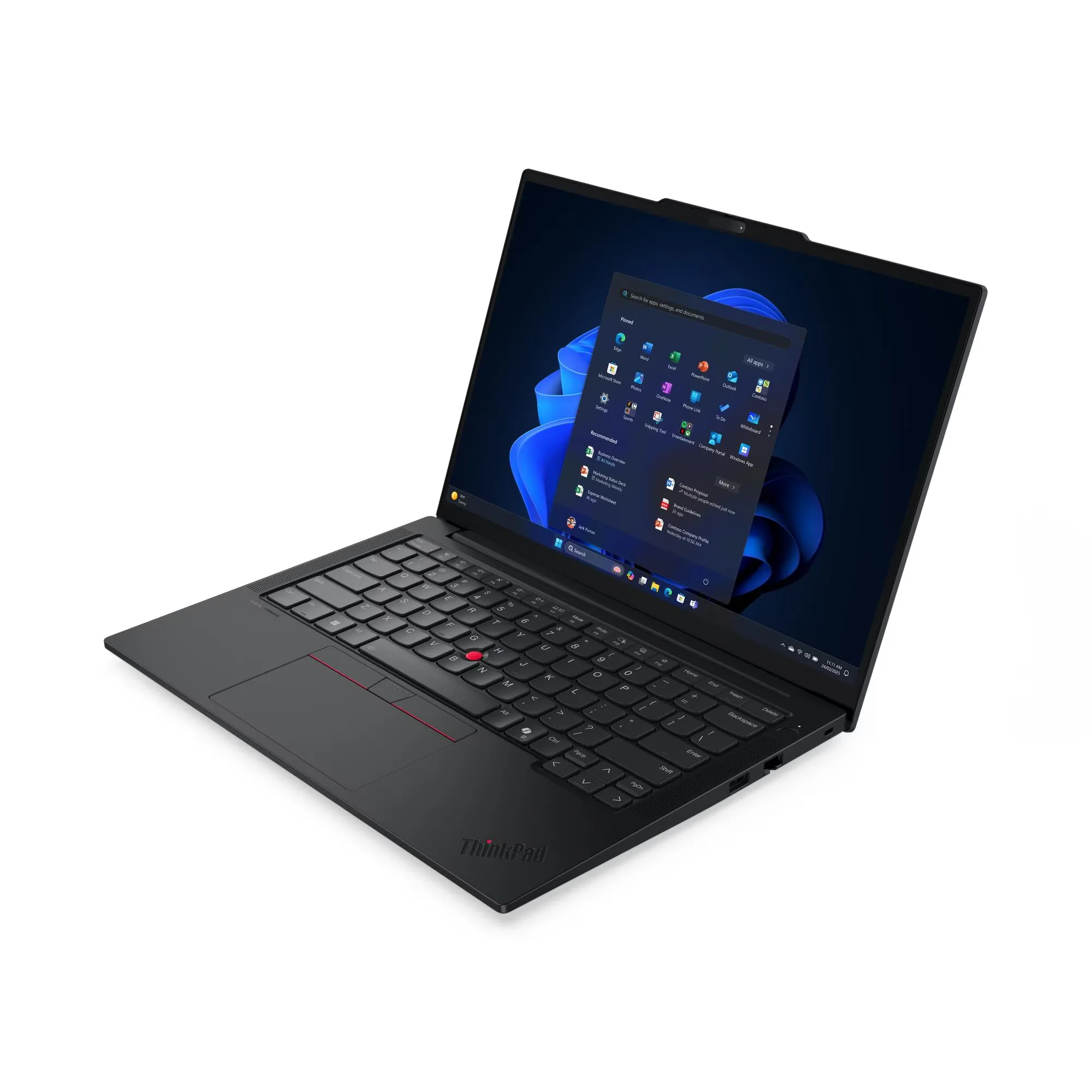

| Model | 21SX005KTH |
| Machine Type | 21SX |
| Region | ASEAN |
| Country/Region | Thailand |
| TopSeller | Yes |
| EAN / UPC / JAN | 198158775830 |
| Announce Date | 2025-04-15 |
| End of Support | 2031-11-15 |
