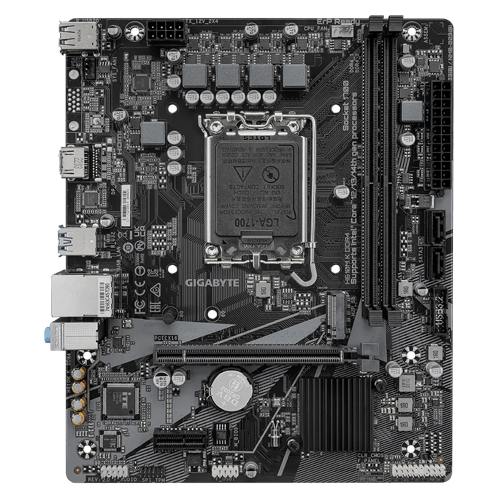

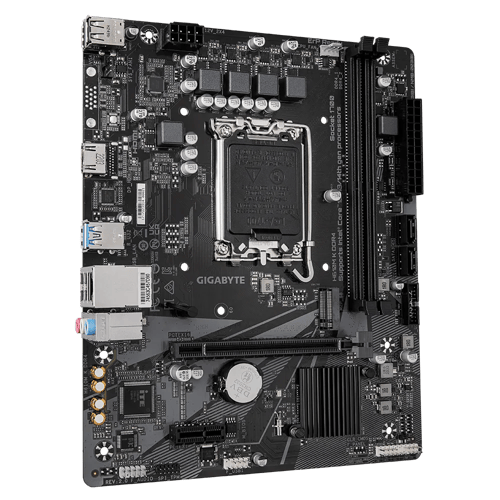

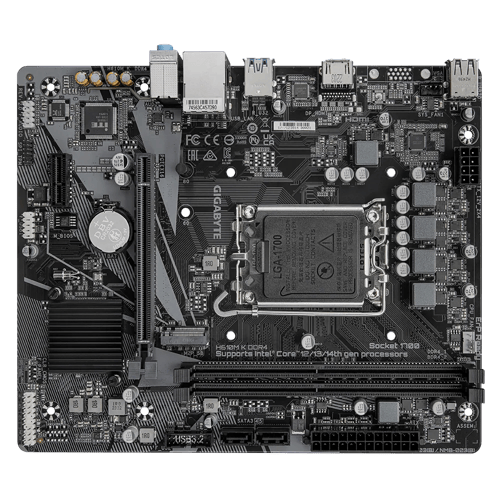

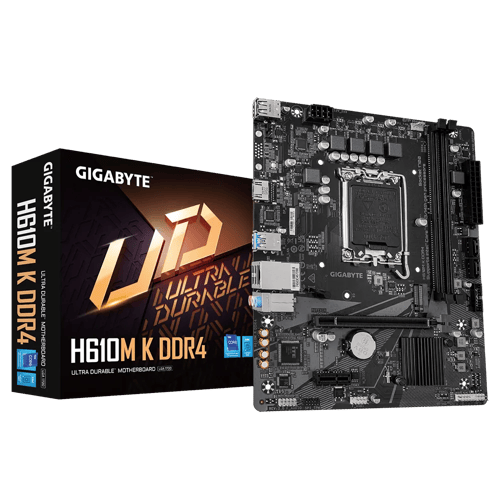

เมนบอร์ด GIGABYTE MB GA_H610M_K_DDR4_REV2.0

Processor

1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors
2. L3 cache varies with CPU

Chipset

1. Intel^® H610 Express Chipset

Memory

1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports.

Audio

1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

1. Realtek^® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Expansion Slots

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

IDE ATA

1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
2. 2 x SATA 6Gb/s connectors

USB

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)/li>
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)/li>

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x M.2 Socket 3 connector
6. 2 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.2 Gen 1 header
10. 1 x USB 2.0/1.1 header
11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
12. 1 x Clear CMOS jumper

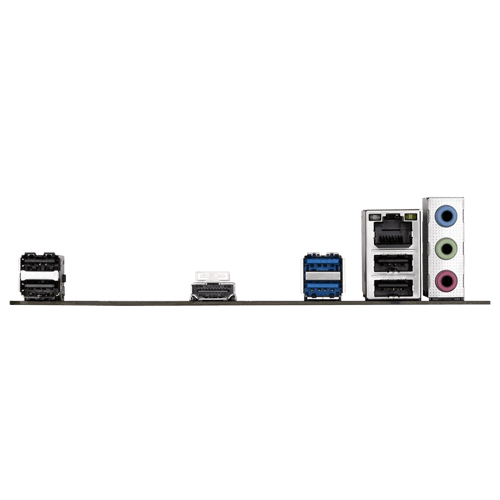

Rear Panel I/O

1. 1 x HDMI port
2. 2 x USB 3.2 Gen 1 ports
3. 4 x USB 2.0/1.1 ports
4. 1 x RJ-45 port
5. 3 x audio jacks

I/O

1. iTE^® I/O Controller Chip

H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the fan you install

BIOS

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   EasyTune
   Smart Backup
   System Information Viewer
2. Support for Q-Flash

Bundle Software

1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software

Operating System

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

Form Factor

1. Micro ATX Form Factor; 22.6cm x 18.5cm
