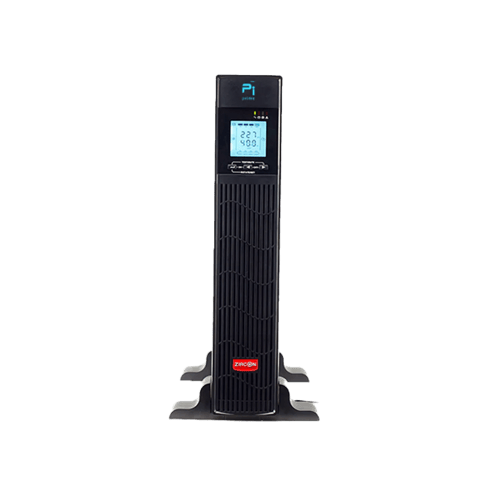

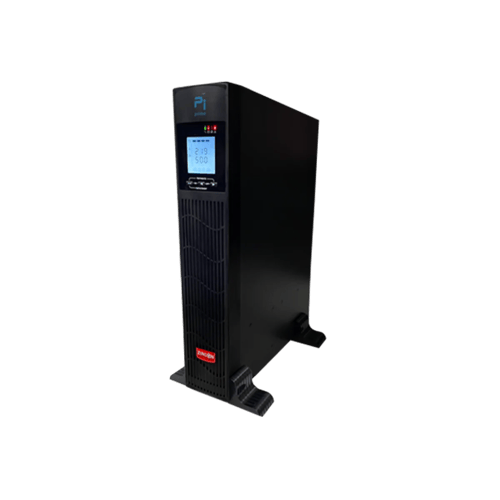

เครื่องสำรองไฟ Zircon UPS PI PRIME 1000VA / 800W / LINEINTERACTIVE / PURESINEWAVE

Model : PI-PRIME-1000VA/800W

Specifications

DC INPUT

Rated voltage : 24V

DC input range (default) : 20 ~ 30 V

AC INPUT

Input Voltage : 220 / 230 / 240 Vac +/-25%

Frequency input range : 50 / 60 Hz (auto-sensing), 50 / 60 Hz 5% ~ 15%

Generator connection : Available (generator input power is settable)

OUTPUT

Output Voltage (AVR/Battery) : 220 / 230 / 240 Vac +/-5% (Settable)

Output frequency : 50Hz / 60Hz +/-0.1% (Settable)

Waveform : Pure sine wave

Inverter efficiency : Max. 80%

Energy saving mode : Settable (< 3% load), enter in 80 s

No-load shutdown : Settable (< 3% load), shut down in 80 s

Transfer time : typical 2-4 ms.

THDV (resistive load) : <5%

Protections : Overload, short circuit (inverter), battery low voltage, battery overcharge, overtemperature

Overload (mains mode) : 110% for 120 s, 125% for 60 s, 150% for 10 s (transfer to bypass mode)

Overload (inverter mode) : 110% for 60 s, 125% for 10 s, 150% for 5 s (shut down directly)

Mute : Automatic mute in 60 s or by manual

BATTERIES

Inbuilt battery (standard model) : 12 V / 7 Ah x 2

Charging current : Standard model (S): 1 A (default)

Equalizing charge voltage : Single battery 14.1 Vdc (default), 13.6 ~ 15 Vdc adjustable

Floating charge voltage : Single battery 13.5 Vdc (default), 13.2 ~ 14.6 Vdc adjustable

Low voltage alarm point : Single battery 10.8 Vdc (default), 9.6 ~ 13 Vdc adjustable

Low voltage shutdown point : Single battery 10.2 Vdc (default), 9.6 ~ 11.5 Vdc adjustable

Battery Type : Seal lead acid maintenance free battery

Battery Back-up : 15-30 Mins.(Depend on loads), 5 Mins at fullload

OTHERS

Topology : Line Interactive UPS

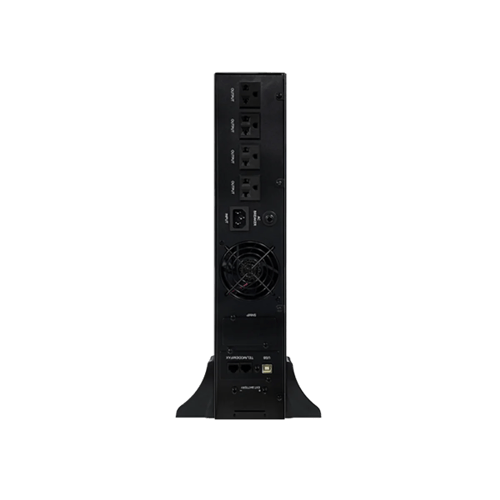

Communications : USB&RJ45 (standard), dry contacts / SNMP (optional)

Operating temperature : 5C ~ 40%

Operating humidity : Relative humidity s 93%

Noise level : < 50 dB (1 m)

Warranty : 2 Years (Except external parts Such as cases and wire)
