| Brand | APC |
| Model | SMC2000I-2U |
| Type | Line Interactive |
| Rated Capacity | 1300 Watts / 2000 VA |
| Nominal Input Voltage | 230 V |
| Nominal Output Voltage | 230V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Backup Time | Full Load 1300W / 3min 2s |
| Transfer Time | N/A |

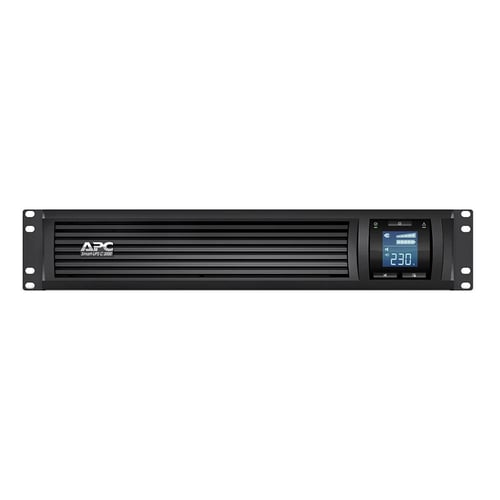

| Display | Multifunction LCD status and control console |
| Input Connections | IEC-320 C20 |

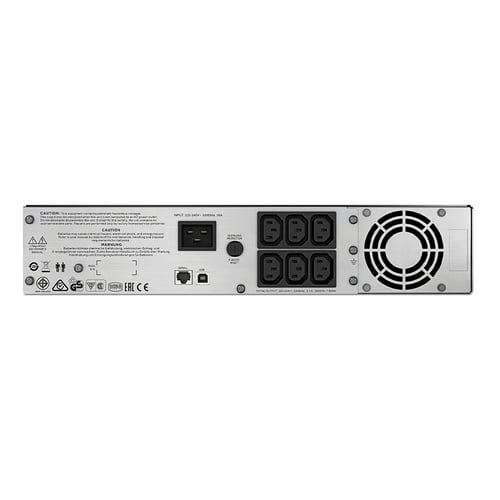

| Output Connections | (6) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup) |
| Interface Port | USB and serial ports |
| Indicator & Audible Alam/ Protection | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Waveform Type | Sine wave |
| Typical recharge time | 3 hour(s) |
| Battery Replacement | APCRBC159 |
| Features | N/A |
| Cord Length | N/A |
| Environment | Acoustic level : 42 dBA
heat dissipation : 81 Btu/h
Operating altitude : 0...10000 ft
Ambient air temperature for operation : 0…40 °C
Ambient air temperature for storage : -15…45 °C
Storage altitude : 0.00…15240.00 m
Relative humidity : 0…95 %
Storage Relative Humidity : 0…95 % |
| Package Contents | CD with software
Documentation CD
Installation guide
Rack mounting brackets
USB cable
**No Power input cable |
| 230V |
| Output Frequency (sync to mains) | 50 Hz |
| Input voltage range for main | 180 - 287 V |
| Dimension | (W x D x H) : 48.00 x 47.00 x 8.90 cm |
| Net Weight | 26.20 KG |
| Package Dimension | (W x D x H) : 59.00 x 59.00 x 25.00 cm |
| Gross Weight | 32.00 KG |
| Volume | 87,025.00 cm3 |
