PACKAGE INCLUDES

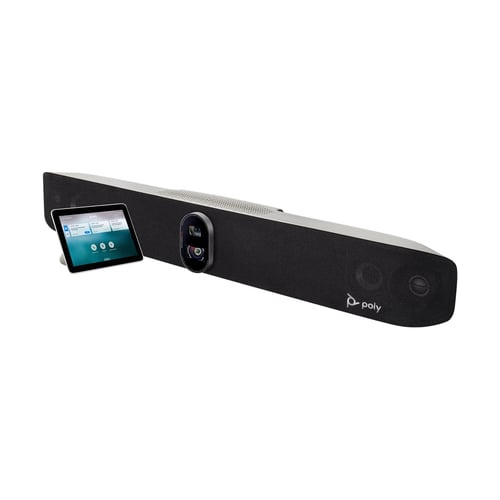

- Poly Studio X70
- Power Supply
- 2x HDMI cable
- Ethernet Cable
- Wall mount
VIDEO STANDARDS AND PROTOCOLS
- H.264 AVC, H.264 High Profile, H.265
VIDEO INPUT
VIDEO OUT
- 2x HDMI
- Touch display compatible
PEOPLE VIDEO RESOLUTION
4K, 30 fps (TX and RX) from 2048 Kbps
1080p, 30 fps from 1024 Kbps
720p, 30 fps from 512 Kbps
CONTENT VIDEO RESOLUTION
- Input
- UHD (3840 x 2160)
- FHD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600)
- Output
- UHD (3840 x 2160)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
- Content frame rate 5–60 fps (up to 4K resolution at 15 fps in call)
ROOM ANALYTICS
- Room participant counting detection
- Air quality sensor*
- CO2 and Volatile Organic Compounds (VOC)
CONTENT SHARING
- Poly content app
- Apple Airplay
- Miracast
- HDMI input
- Whiteboarding
CAMERA
- 2 lenses
- 120-degree HFOV, 70-degree HFOV
- 140-degree DFOV, 78-degree DFOV
- 2x 20 Megapixel sensors
- 7.3x digital zoom
- UHD 2160p (4K) capture resolution
- Additional cameras can be added via USB
- Automatic meeting experience powered by Poly DirectorAI including group framing, people framing (preview features), and speaker framing
AUDIO INPUT
MICROPHONES
- 2x MEMS microphones, plus 2x 2nd order microphones
- Microphone pickup range up to 25 ft
- Optional expansion microphone available (p/n 2200-69631-001)
AUDIO OUTPUT
- 1x 3.5mm
- Two-way Stereo Speakers
- Mid speakers
- Power Handling (RMS) 20 Watts
- Power Handling (MAX) 30 Watts
- Sensitivity 83 dB
- Tweeter speakers
- Power Handling (RMS) 15 Watts
- Power Handling (MAX) 20 Watts
- Sensitivity 89 dB
- Custom Tuned Bass Ports for rich sound
- 1x HDMI
OTHER INTERFACES
- 2x USB-A (3.0)*
- *Used for connected peripherals
- 1x USB-C*
- Bluetooth® 5.0
- *TAA, JITC and no radio versions available
- 2x RJ45*
- *Designated for future use
- WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
- *TAA, JITC and no radio versions available
AUDIO STANDARDS AND PROTOCOLS
- 22 kHz bandwidth with Polycom Siren 22 technology
- 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology
- 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
- 7 kHz bandwidth with G.722, G.722.1
- 3.4 kHz bandwidth with G.711, G.728, G.729A
NETWORK
- IPv4
- IPv6
- 2x 10/100/1G Ethernet (RJ45)
- Auto-MDIX
- H.323 and/or SIP up to 6 Mbps running Poly Video App
- Polycom Lost Packet Recovery (LPR) technology
- Dynamic bandwidth allocation
- Reconfigurable MTU size
- Web proxy support
SECURITY
- Media encryption (H.323, SIP)
- H.235.6 support
- Authenticated access to admin menus, web interface, and API
- Local account password policy configuration
- Security profiles
- Local account and login port lockout
- Secure defaults
- Remote logging with support for TLS
- Active directory external authentication
- Electronic privacy shutter
OPTIONS
- VESA mount kit
- Stand
- Poly TC8
- Poly Bluetooth remote control
- Poly Trio
- Studio Expansion Microphone
- TAA, JITC and no radio versions available
INTEROPERABILITY
- All cloud service providers through Poly Video App Mode
- Support for native 3rd party applications includes:
- Zoom
- Microsoft Teams
- GoToRoom
- RingCentral
- StarLeaf
- DialPad
DIGITAL SIGNAGE
ELECTRICAL
- Auto sensing power supply
- Typical operating voltage/power
- 37 VA @ 120 V @ 60 Hz
- 37 VA @ 230 V @ 50/60 Hz
- Typical BTU/h
ENVIRONMENTAL SPECIFICATION
- Operating temperature
- Operating humidity (non-condensing)
- Non-operating temperature
- Non-operating humidity (non-condensing)
- Maximum altitude
PHYSICAL CHARACTERISTICS
- 840.18 mm / 33.1 in (W) x 135.38 mm / 5.3 in (H) x 117.33 mm /4.6 in (D)
- 7.05 lbs/3.2 kg
MANAGEABILITY
WARRANTY
- One-year return to factory parts and labor
