Yealink MVC S80-C5U Technical Specifications

Package Content

• MCore 4
• MTouch Plus
• RoomSensor
• SmartVision 80

Preload

• Windows 11 IoT Enterprise X64
• Windows 11 IoT Enterprise License
• Microsoft Teams Rooms App
• Yealink RoomConnect

MCore 4, Gen-4 Mini-PC

• Processor: Intel Ultra5 125H
• Memory: 16GB(2*8GB) DDR5
• Storage: 256GB SSD
• BIOS feature:
• 3x HDMI video output:
  - CEC
  - EDID
• TPM2.0
• Kernel DMA
• Interfaces:
• 1 x HDMI-Out 2.1 port
• 2 x HDMI-Out 2.0 port
• 1 x HDMI-In port
• 4 x USB3.0 Type-A Port
• 1 x MTouch Port (RJ-45)
• 1 x LAN port for AV network
• 1 x 10/100/1000 Gigabit Ethernet Port
• 1 x Power Supply Port
• 1 x 3.5mm headphone Port
• 1 x reset port
• 1 x Security Slot
• WiFi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2

 MTouch Plus

• Physical Features:
• 11.6-inch narrow bezel IPS display
• Angle between screen and desktop (30° ~ 70°)
• Adjustable angle of support frame (50° ~ 180°)
• Function Features：
• 1920 x 1080 video resolution

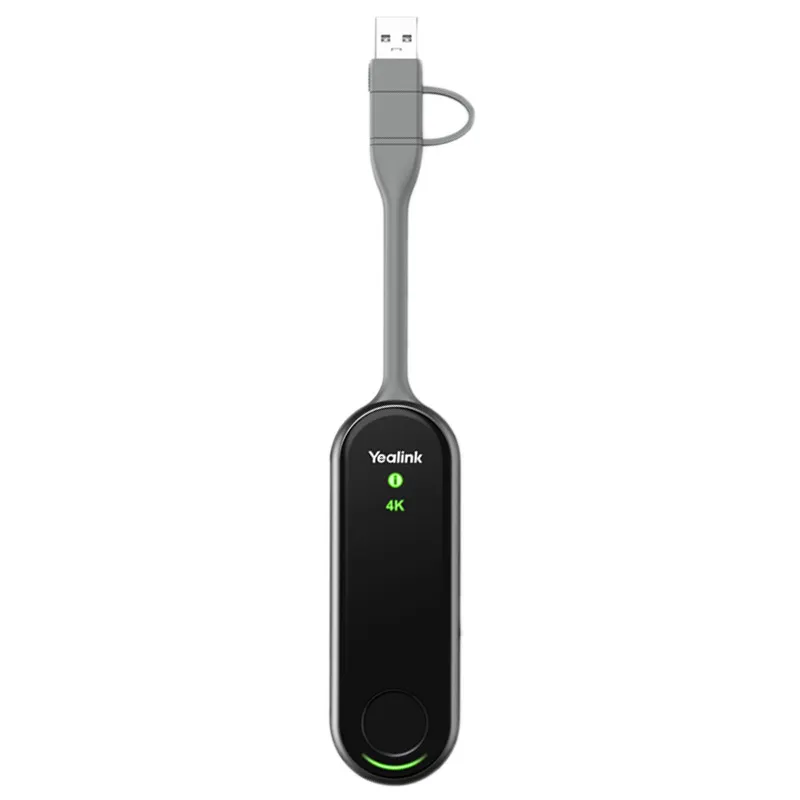

• Support wired and wireless (with WPP30) content sharing
• Support external PD power supply to power the sharing device
• Support HDMI/USB-C video input
• Support desktop placement, desktop fixed, wall-mounted deployment

RoomSensor

• Detection angle: 120°
• Adjustable detection angle: ±20°
• Operating temperature: 0-40℃
• Operating humidity: 10-95%

SmartVision 80

• Camera:
• PTZ Camera: 20×optical zoom
• 69° DFOV, 61.5° HFOV, 36° VFOV(PTZ Camera)
• 110° DFOV, 98° HFOV, 82° VFOV(Panoramic Camera)
• 51° DFOV, 41.6° HFOV, 32° VFOV(Telephoto Camera)
• AI Feature:
• IntelliFrame
• Participant Identification
• IntelliFocus
• Speaker Tracking
• Presenter Tracking
• Video Fence
• PIP
• Auto Framing
• Interfaces:
• 1×USB 3.0 Type-B port
• 1×USB 2.0 Type-A port
• 2×VCH port(RJ45)
• 1×Network Port (RJ45)
• 1×HDMI out port
• 1×Line in port
• 1×Line out port
• 1×Reset Button
• 1×DC Power Port
