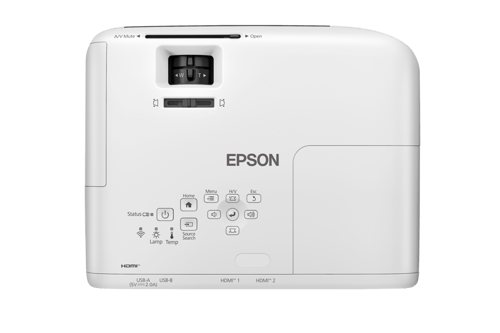

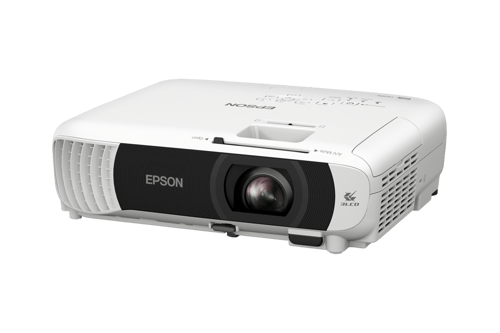

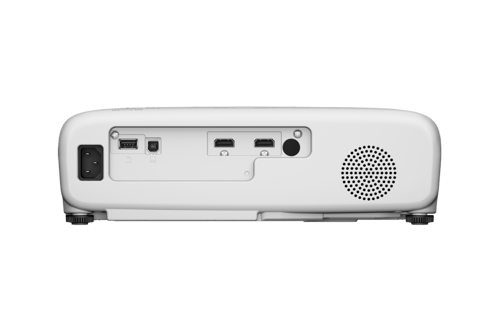

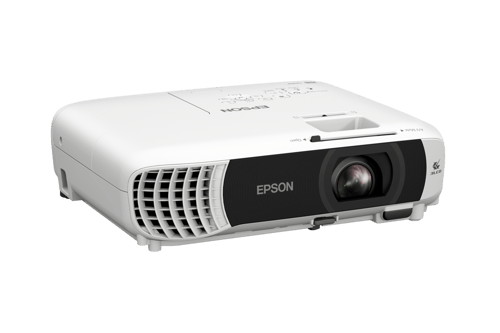

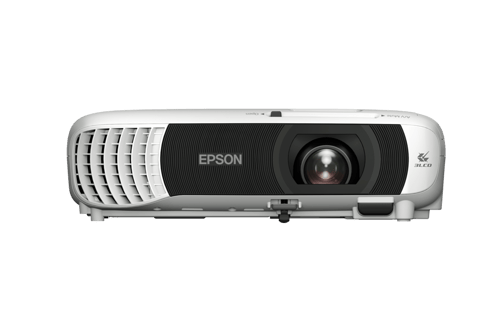

EPSON Projector V11HB58052

Projector Specifications

Projection Technology

• RGB Liquid Crystal Shutter Projection System (3LCD)

Brightness

• White Light Output (Normal / Eco): 4,000 lm / 2,600 lm

• Colour Light Output: 4,000 lm

• Light Output (Center): 4,100 lm

Connectivity

Network:

• Wireless LAN: Built-in

Digital Input:

• HDMI Type A: 2 (HDCP 1.4)

USB Input:

• USB Type A: 1 (480 Mbps for PC Free, Firmware Update, Copy OSD Settings, or 5V/2A Power Supply)

• USB Type B: 1 (For Firmware Update, Copy OSD Settings)

Contrast Ratio

• 16,000:1

Screen Size (Projected Distance)

• Zoom (Wide): 33” – 320” [0.91 – 9.07 m]

• Zoom (Tele): 33” – 320” [1.10 – 10.89 m]

Geometric Correction

• Vertical / Horizontal Keystone: ±30° / ±30°

Operating Conditions

• Operating Temperature:

  • Low Altitude (0 – 2,286 m / 7,500 ft): 5 – 40 °C (41 – 104 °F)

  • High Altitude (>2,286 m / 7,500 ft): 5 – 35 °C (41 – 95 °F)

  • Humidity: 20% – 80% (No Condensation)

• Operating Altitude:

  • Over 1,500 m / 4,921 ft with High Altitude Mode: 0 – 3,048 m (0 – 10,000 ft)

Start-Up / Cool Down

• Start-Up Period: Less than 7 seconds (Epson Logo)

• Warm-up Period: 30 seconds

• Cool Down Period: Instant Off

Internal Speaker

• Sound Output: Monaural 2W × 1

Weight

• Approx. 2.6 kg

Air Filter

• Type: Electrostatic Filter

• Maintenance Cycle: 6,000 hours (Normal) / 12,000 hours (Eco)

Fan Noise

• Fan Noise (Normal / Eco): 37 dB / 28 dB

Power Consumption (220–240V)

• Lamp (Normal / Extended): 332 W / 231 W

• Standby (Normal / Eco): 2.0 W / 0.3 W

• Direct Power On / Off: Yes

Dimensions

• Excluding Feet (W × D × H): 302 × 234 × 87 mm

Power Supply

• Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Wireless Specification (Built-in Wireless LAN)

• Supported Mode: IEEE 802.11 a/b/g/n

• Supported Interface: Infrastructure, Simple AP (Wi-Fi Direct)

• Supported Security Type:

  • Infrastructure: Open, WPA2 / WPA3-PSK

  • Simple AP (Wi-Fi Direct): OPEN, WPA2-PSK (AES)

Specifications of Main Parts

LCD:

• Size: 0.59” (C2 Fine)

• Driving Method: Poly-silicon TFT Active Matrix

• Pixel Number: 1,024,000 dots (1280 × 800) × 3

• Native Resolution: WXGA

• Aspect Ratio: 16:10

• Pixel Arrangement: Cross Stripe

Light Source:

• Lamp Type: 210 W UHE

• Life (Normal / Eco): 6,000 / 12,000 hours

Projection Lens:

• Type: Optical Zoom (Manual) / Focus (Manual)

• F-Number: 1.49 – 1.72

• Focal Length: 16.9 – 20.28 mm

• Zoom Ratio: 1.0 – 1.2

• Throw Ratio: 1.30 – 1.56
