| Brand | APC |
| Model | 1000VA APC SMC1000I 2UC |
| Type | Line Interactive |
| Rated Capacity | 600 Watts / 1.0 kVA |
| Nominal Input Voltage | 230V |
| Nominal Output Voltage | 230V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Display | Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. |

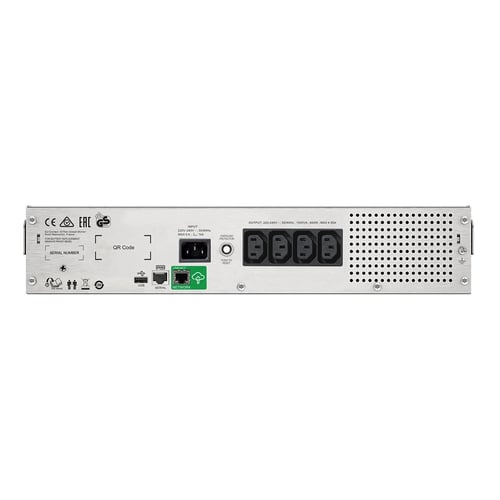

| Input Connections | IEC-320 C14 |
| Output Connections | (4) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup) |
| Interface Port | RJ-45 Serial, USB |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Waveform Type | Sine wave |
| Typical recharge time | 3hour(s) |
| Battery Replacement | APCRBC124 |
| Environment | Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0-3000meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0-15000meters
Audible noise at 1 meter from surface of unit : 42.0dBA
Online thermal dissipation : 46.0BTU/hr |
| Output Frequency (sync to mains) | 50/60Hz +/- 3 Hz |
| Input voltage range for main | 180 - 287V |
| Dimension | (W x D x H) : 43.20 x 40.60 x 8.60 cm |
| Net Weight | 20.52 KG |
| Package Dimension | (W x D x H) : 54.60 x 58.40 x 24.10 cm |
| Gross Weight | 22.33 KG |
| Volume | 76,846.22 cm3 |
